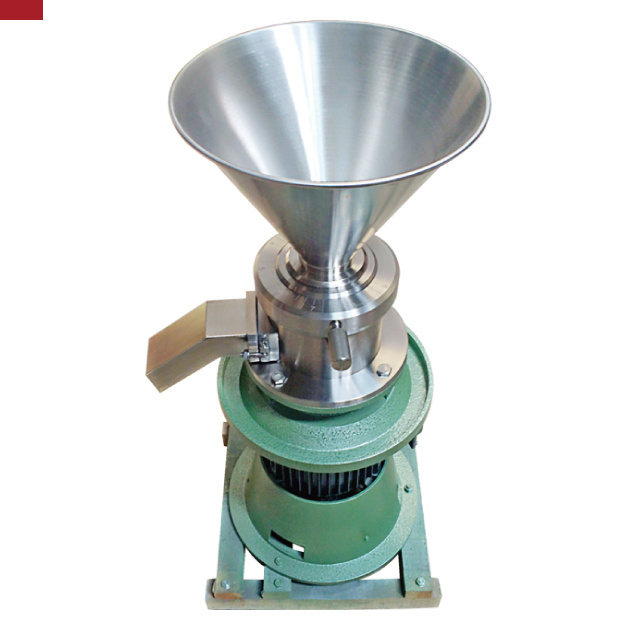

JM120 Vertical Colloid Mill Sesame Paste Tahini And Fruit Grinder Making Machine

♦ Specifications

Name

Emulsifying Colloid Mill Machine

Model

JM-120 Vertical

JMC-80 Vertical

Base Housings

Paint

Stainless Steel

Supply

380V 50Hz

380V 50Hz

Power

7.5KW

4KW

Fineness

50-150mesh

50-120mesh

Output

500-2000kg/h

100-1500kg/h

Hopper

14.8L

8.4L

Weight

150kg

95kg

Machine size

40*40*108cm

35*35*84cm

Package Size

50*50*99cm

42*42*87cm

♦ Working Principle

- Through the relative movement of different geometric shapes of static and static grinding, the material being processed under the action of gas pressure and centrifugal force, by the strong shear, friction, impact, high frequency vibration, vortex and other complex forces, the material is effectively Dispersed, broken, emulsified, homogeneous, evenly mixed, so as to get the ideal fine products.

♦ Overview

- Emulsifying colloid mill machine is a wet ultrafine particle grinding treatment equipment, with crushing, emulsification, mixing, dispersion, homogenization, stirring and other functions, suitable for all types of emulsion or paste media materials, processing material viscosity density can be greater than 10,000 centipoise.

- Finished fineness of granular material up to 50-150MESH after treatment with colloid mill is the ideal equipment for integrated processing such as ultrafine comminution. It can replace and better than stone mill, sand mill, ball mill, milk machine, emulsifier, Machine, crusher and so on.

♦ Performance Feature

1. Contact with the material are made of stainless steel, corrosion resistance, in harsh environments can be a long time continuous and stable work.

2. Static and static grinding, with special treatment, grinding high hardness, high precision, grinding fine, durable long life

3. Pump body, adjust the disk, cover, etc. are made of raw steel, high density, no sand holes, more durable.

4. The machine uses non-contact bushing seal, with anti-leakage, maintenance-free features.

5. Adjust the disc can be adjusted thickness, easy to operate. Standard copper coil motor with long service life.

♦ Applications

This series of colloid mill can produce the following products:

1. Food Industry: liquid and paste emulsifying, liquid-powder mixing, liquid-liquid mixing, meat mixing, meat emulsifying, fruit and vegetable grinding, fruit tea, chocolate refining, soy milk, mung bean milk, rice milk, peanut butter, tahini sesame paste, chili sauce, almond paste, cream mixing, jam, fruit juice, soybean paste, bean paste, liquid spices, dairy products and so on.

2. Chemical Industry: paint, pigment, dye, coating, catalyst, asphalt, adhesive, detergent all kinds of syrup, nutrient solution, all kinds of ointment, cod liver oil, royal jelly and so on.
