Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HJD
-
Dimensions(L*W*H):
-
9350*3300
-
Weight:
-
2600 KG
-
Certification:
-
CE Certification
-
Application:
-
Print T Shirt
-
Application area:
-
Textiles Screen Printing
-
Color/station:
-
6 Color/ 22 Stations
-
Printing speed:
-
600pcs/h
-
Pallet Size:
-
580*850mm
-
printing precision:
-
0.02 mm
-
Type:
-
Silk Screen Printing Machine
-
Air pressure:
-
0.6-0.8Mpa
-
Pallet materials:
-
Aluminum Material
-
Power:
-
4.3KW
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HJD
-
Dimensions(L*W*H):
-
9350*3300
-
Weight:
-
2600 KG
-
Certification:
-
CE Certification
-
Application:
-
Print T Shirt
-
Application area:
-
Textiles Screen Printing
-
Color/station:
-
6 Color/ 22 Stations
-
Printing speed:
-
600pcs/h
-
Pallet Size:
-
580*850mm
-
printing precision:
-
0.02 mm
-
Type:
-
Silk Screen Printing Machine
-
Air pressure:
-
0.6-0.8Mpa
-
Pallet materials:
-
Aluminum Material
-
Power:
-
4.3KW

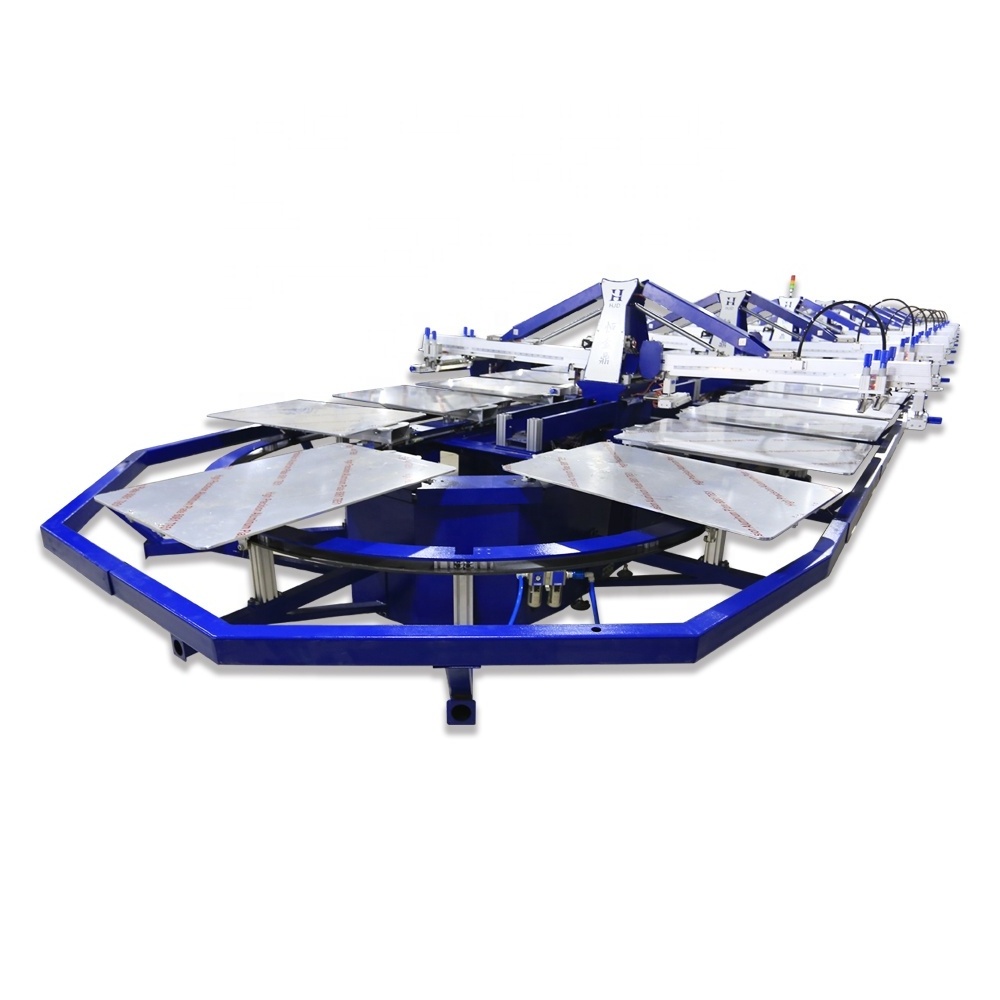

6 Color Oval Automatic Digital Screen Printing Machine for T-Shirt & Textile
|
2 S |
4S |
6S |
8S |
10S |
12S |
14S |
16S |
18S |
20S |
|
|
Plate Quantities (pieces) |
1 0 |
16 |
22 |
28 |
34 |
40 |
46 |
52 |
58 |
64 |
|
Printing Number (color) |
2 |
4 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
20 |
|
Printing Size (cm) |
55*70( platen size 58*85 ) |
|||||||||
|
Max Frame (cm) |
66*99 |
|||||||||
|
Machine length (cm) |
450 |
682 |
888 |
1094 |
1300 |
1506 |
1712 |
1918 |
2124 |
2330 |
|
Machine width (cm) |
316 |
|||||||||
|
Machine Height (cm) |
162 |
|||||||||
|
Machine weight (kg) |
1600 |
2200 |
2700 |
3200 |
3700 |
4200 |
4700 |
5200 |
5700 |
6200 |
|
Air consumption ( m 3 /m) |
0. 05 |
0.1 |
0.15 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
0.45 |
0.5 |
|
Air pressure Specification |
0.6Mpa/0.8Mpa |
|||||||||
|
Print Head Driver |
Single printing head servo motor 400W |
|||||||||
|
Total power Consumption (kw) |
1.8 |
2.6 |
3.4 |
4.2 |
5 |
5.8 |
6.6 |
7.4 |
8.2 |
9 |
|
Power supply parameters |
380V,50HZ,three phase four wires |
|||||||||
|
Capacity |
70 0 pcs/h |
|||||||||
1. It can be with the digital printer, combination equipment. We provide training in printing technology.
2. Oval automatic screen printing machine can be from 4 colors to 24 colors. The printing plate size can be customized. Standard size: 63*86.5 cm and 70*105 cm.
This machine adopts unique connecting rod , transmission, not the chain transmission structure, increase the stability of the equipment and prolong the service life of the equipment .
Electric and air supplies system adopts module structure , increase lots of stability for the machine meanwhile make the machine high efficient . The extensibility is easy to solve new problems of the printing technology , such as flocking machine , heat press machine and digital printer combined with the oval automatic screen printing machine.
