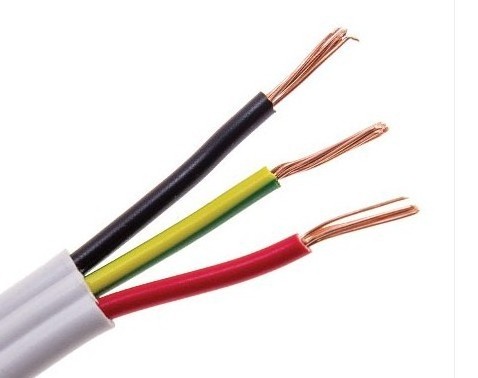

pvc insulated copper electrical wire 2.5mm flat twin and earth electrical cable

pvc insulated copper electrical wire 2.5mm flat twin and earth electrical cable

FOB Reference Price: Get Latest Price

≥500 Meters

US $0.03

Free Inquiry

Customized Request

Explore More Products

Wire Flexible PVC Insulated Bare Copper Electrical Wire And Cable

$ 5.75

Single Core Copper 1.5mm 2.5mm 4mm 6mm 10mm PVC House Electrical Cable and Wire Building Wire

$ 0.06 - $ 0.57

1.5mm 2.5mm 4mm 6mm 10mm Single Core Copper PVC House Wiring Electrical Cable and Wire Building Wire

$ 0.01

Stranded Copper 1.5mm 2.5mm Single Core Copper PVC House Wiring Cable and Wire

$ 0.17 - $ 0.23

1.5mm 2.5mm 4mm 6mm 10mm Single Core Copper PVC House Wiring Electrical Cable and Wire

$ 0.22 - $ 0.23

Single Core Copper PVC Electrical Cable and Wire Solid Building Wire

$ 0.22 - $ 0.68

1.5mm 2.5mm 6mm 20mm Flexible House Wiring Copper PVC Building Wire Cable

$ 0.33 - $ 0.34

Electrical Appliance Wiring Tinned Copper Material Single Core Electric US1007 AWG20 PVC Wire and Cable

$ 0.09 - $ 0.1

Product Details

{{item.text}}

Quick Details

Insulation Material:: PVC

Place of Origin:: Henan, China

Brand Name:: RMjT

Model Number:: BVVB

Rated voltage:: 300/300V,300/500V,450/750V

place of origin:: henan,China

brand name:: RMjT

Model number:: BVVB

type:: insulated

application:: connection line,construction

jacket:: pvc

core:: 2/3core

conductor:: copper

Color:: as your request

Key word:: 1mm,2.5mm,1.5mm,5mm,10mm earth cable

Quick Details

Application:: industry

Conductor Material:: Copper

Conductor Type:: Stranded

Insulation Material:: PVC

Place of Origin:: Henan, China

Brand Name:: RMjT

Model Number:: BVVB

Rated voltage:: 300/300V,300/500V,450/750V

place of origin:: henan,China

brand name:: RMjT

Model number:: BVVB

type:: insulated

application:: connection line,construction

jacket:: pvc

core:: 2/3core

conductor:: copper

Color:: as your request

Key word:: 1mm,2.5mm,1.5mm,5mm,10mm earth cable

Product Description

Product Construction

_{1.Conductor:

bare/tinned copper,or Aluminum.

2.Insulation:

PVC rated at 70°C

3.Color Code:

red,orange,yellow,yellow-green,blue,purple,gray,white or as your requirement

4.Outer sheath:

PVC tapes ST2 to IEC.}

_{Service Performance Of Copper Wire}

^{1.

Rated voltage: 300/300V ; 300/500V ;450/750V

2.

Long-term working temperature: not be higher than 70°C

3.

When laying the cable, the ambient temperature should not lower than 0°C

4.

Minimum bending radius: Bending radius ≥ 4D as cable overall diameter ≤ 25mm; Bending radius ≥ 6D ascable overall diameter > 25mm.}

^{European Standard

Electric Wire}

^{H07V-U , 450/750 PVC Insulated Building Wire, BS Standard}

^{H03VH-H , 300/300V PVC Insulated Flexible Parallel Wire}

^{H03VVH2-F , H05VVH2-F , PVC insulated PVC sheathed flat wire}

^{300/300V PVC Insulated Flexible Twisted Cord}

^{H05V-K , H07V-K , PVC Insulated Flexible Wire}

^{H07Z-U

, 450/750 LSHF Compound Insulated Building Wire.BS Standard}

^{H05Z-K , H07Z-K , LSHF Compound Insulated Flexible WirefBS Standard}

^{Flat Twin and Earth Wire-ECC Cables, BS Standard}

Product Model

^Model	^Name	^Usage
^BV(BLV)	^{copper (AL) core PVC insulated cable (wire)}	^{Suitable for all kinds of AC and DC electrical installations, electrical instruments, instruments, telecommunications equipment,} ^{power and lighting lines for fixed laying}
^BVR	^{copper core PVC insulated flexible cable (wire)}
^BVV(BLVV)	^{copper (AL) core PVC insulated PVC sheathed round cable (wire)}
^BVVB(BLVVB)	^{copper (AL) core PVC insulated PVC sheathed flat cable (wire)}
^BV-105	^{copper core heat-resistant 105 degree PVC insulated wire}
^BV-ZR	^{copper core flame retardant PVC insulated wire}	^/
^BVR-ZR	^{copper core flame retardant PVC insulated flexible wire}	^/
^BVV-ZR-105	^{copper core flame retardant PVC insulated PVC sheathed round cable}	^/
^BVVB-ZR	^{copper core flame retardant PVC insulated PVC sheathed flat cable}	^/
^BV-ZR-105	^{copper core heat resistant 105 ℃ flame retardant PVC insulated wire}	^/
^BVR-ZR-105	^{copper core heat-resistant 105 ℃ flame-retardant vinyl chloride insulated PVC sheathed round flexible cable}	^/
^BVV-ZR-105	^{copper core heat-resistant 105 ℃ flame-retardant PVC sheathed round cable}	^/
^AV-ZR-105	^{copper core heat-resistant 105 ℃ flame retardant PVC insulated installation wire}	^/
^AVR-ZR-105	^{copper core heat-resistant 105 ℃ flame retardant PVC insulated installation flexible wire}	^{Cords for internal use in instruments, meters, etc.}
^AV-ZR	^{copper core flame retardant PVC insulated installation (flexible) wire}	^{hard-wired for electrical, instrumentation, electronic equipment, etc.}
^RV	^{Copper core PVC insulated flexible wire}	^{Suitable for connection of various AC and DC electrical appliances, electrical instruments, household appliances, small power} ^{tools, power and lighting devices}
^{RVB (RVVB)}	^{copper core PVC insulated flat connection flexible wire}
^RVS	^{copper core PVC insulated twisted connection flexible wire}
^Rv-105	^{copper core heat-resistant 105 degree PVC insulated connection flexible wire}
^RVV	^{copper core PVC insulated PVC sheathed flat connection flexible cable (wire)}	^{Household appliances, small electric tools, instruments and power lighting}
^RVVP	^{Copper core PVC insulated and shielded PVC sheathed flexible cable, voltage 300V / 300V, 2-24 core,}	^{instrument, instrument, intercom, monitoring, control installation}
^AVVR	^{PVC Sheath}	^{Installation flexible cable}

_{Part Production Range of Insulated

Electrical Wire}

_Model	_{Voltage level(v)}	_{Cross-sectional area (mm2)}	_{Number / diameter (mm)}	_{Outer diameter (mm)}	_{weight (kg/km)}	_{20 ℃ conductor resistance≤ (Ω / km)}
_BV	_{300/ 500V}	_0.5	_{1/0. 80}	_2.4	_8.5	₃₆
_BV	_{300/ 500V}	_{0.75 (A)}	_1/0.97	_2.6	_11.1	_24.5
_BV	_{300/ 500V}	_0.75(B)	_7/0.37	_2.8	₁₂	_{24. 5}
_BV	_{300/ 500T}	_1.0(A)	_1/1.13	_2.8	_13.9	_18.1
_BV	_{300/ 500V}	_1.0(B)	_7/0.43	₃	₁₅	_18.1
_BV	_{450/ 750V}	_1.5(A)	_1/1.38	_3.3	_{20. 3}	_{12. 1}
_BV	_{450/ 750V}	_1.5(B)	_{7/0. 52}	_3.5	_21.6	_12.1
_BV	_{450/ 750V}	_{2.5 (A)}	_1/1.78	_3.9	_31.6	_7.41
_BV	_450/750V	_2.5(B)	_{7/0. 68}	_4.2	_{34. 8}	_7.41
_BV	_{450/ 750V}	_4(A)	_1/2.25	_4.4	_47.1	_4.61
_BV	_{450/ 750T}	_4(B)	_7/0.85	_4.8	_{50. 3}	_4.61
_BV	_{450/ 750V}	_6(A)	_1/2.76	_4.9	_67.1	_3.08
_BV	_{450/ 750T}	_6(B)	_{7/1. 04.}	_5.4	_71.2	_3.08
_BV	_{450/ 750V}	₁₀	_7/1.35	₇	₁₁₉	_1.83
_BV	_{450/ 750V}	₁₆	_7/1.70	₈	₁₇₉	_1.15
_BV	_{450/ 750V}	₂₅	_{7/2. 14}	₁₀	₂₈₁	_0.727
_BV	_450/750V	₃₅	_{7/2. 52}	_11.5	₃₈₁	_0.524
_BV	_{450/ 750V}	₅₀	_19/1.78	_{13. 0}	₅₂₁	_0.387
_BV	_{450/ 750V}	₇₀	_{19/2. 14}	₁₅	₇₃₄	_0.268
_BV	_{450/ 750V}	₉₅	_19/2.52	_17.5	₉₆₂	_0.193
_BV	_{450/ 750V}	₁₂₀	_{37/2. 03}	₁₉	₁₁₈₀	_0.153
_BV	_{450/ 750V}	₁₅₀	_37/2.25	₂₁	₁₄₇₀	_0.124
_BV	_{450/ 750V}	₁₈₅	_{37/2. 52}	_23.5	₁₈₁₀	_0.0991
_BVR	_450/750V	_2.5	_19/0.41	_4.2	_34.7	_7.41
_BVR	_{450/ 750V}	₄	_{19/0. 52}	_4.8	_51.4	_4.61
_BVR	_450/750V	₆	_19/0.64	_5.6	_73.6	_3.08
_BVR	_{450/ 750V}	₁₀	_49/0.52	_7.6	₁₂₉	_1.83
_BVR	_{450/ 750V}	₁₆	_49/0.64	_8.8	₁₈₆	_1.15
_EVR	_{450/ 750V}	₂₅	_{98/0. 58}	₁₁	₃₀₆	_0.727
_BVR	_{450/ 750V}	₃₅	_{133/0. 8}	_12.5	₄₀₃	_0.524
_BVR	_{450/ 750V}	₅₀	_{133/0. 68}	_14.5	₅₅₃	_0.387
_BVR	_{450/ 750V}	₇₀	_189/0.68	_16.5	₇₆₄	_0.268

^{Nominal sectional area mm2}

^{Conductor No/Dia. Mm}

^{Nominal Insulated thick mm}

^{Max overall Dia. Mm}

^{Condcutor Resistance at 20}

^{Min insulated resistance at 70MΩ/km}

^Weight

^Kg/km

^Cu

^Al

^Cu

^Al

^1.5

^1/1.38

^0.7

^3.3

^12.1

^0.011

^19.2

^1.5

^7/0.52

^0.7

^3.5

^12.1

^0.01

^20.6

^2.5

^1/1.78

^0.8

^3.9

^7.41

^11.8

^0.01

^30.8

¹⁵

⁴

^1/2.25

^0.8

^4.4

^4.61

^7.39

^0.0085

^45.5

²¹

⁶

^1/2.76

^0.8

^4.9

^3.08

^4.91

^0.007

⁶⁵

²⁹

¹⁰

^7/1.35

⁷

^1.83

^3.08

^0.0065

¹¹⁰

⁵²

¹⁶

^7/1.70

⁸

^1.15

^1.91

^0.005

¹⁷⁰

⁷⁰

²⁵

^7/2.14

^1.2

¹⁰

^0.727

^1.2

^0.005

²⁷⁰

¹¹⁰

³⁵

^7/2.52

^1.2

^11.5

^0.524

^0.868

^0.004

³⁶⁴

¹⁵⁰

⁵⁰

^19/1.78

^1.4

¹³

^0.387

^0.641

^0.0045

⁵⁰⁰

²⁰⁰

⁷⁰

^19/2.14

^1.4

¹⁵

^0.268

^0.443

^0.0035

⁶⁸⁸

²⁶⁹

⁹⁵

^19/2.52

^1.6

^17.5

^0.193

^0.32

^0.0035

⁹⁵³

³⁶⁰

¹²⁰

^37/2.03

^1.6

¹⁹

^0.153

^0.253

^0.0032

¹¹⁶⁸

⁴⁴⁹

¹⁵⁰

^37/2.25

^1.8

²¹

^0.124

^0.206

^0.0032

¹⁴⁶⁶

⁵⁵¹

¹⁸⁵

^37/2.52

^32.5

^0.099

^0.164

^0.0032

¹⁸⁰⁸

⁶⁶⁸

^Applications

_{The PVC Insulated Wires belong to the series of laying wires, which are mainly suitable for laying at the fixed places.
They are widely used as connectors of driving, lighting, electric equipment, instrument and telecommunication equipment with rated voltage up to 450/750V( Uo /U).
Part of the plastic insulated wires are used at the equipment with AC rated voltage up to 300/300V.
The core can be divided into four types: hard, soft, mobile and extra soft.
There are four types of cores: single core, two core, three core and four core.}

Packaging and Shipping

Our Company

_{People's Cable Group Co., Ltd.}

People's Cable Group Co., Ltd. Was founded in 2007, with good transport facilities which adjacent to the 310 national highway-Lian Huo highway. Our company had 2 factories(Zhitian factory and Zhulin factory), occupies total area of more than 300,000 square meters, with building area 230,000 square meters. The real capital assets more than 10 million USD, with 630 staff members, 65 of which are professional and technical experts.

_{Our mainly products as follow:}

_{1.PVC insulated electric wire whatever copper conductor,aluminum conductor,CCA(copper clad

aluminum),CCS(copper clad steel).

2.PVC insulated power cable and xlpe insulated power cable with or without armor upto 35kv.

3.Rubber cable like welding cable, mining cable, control cable and so on.

4.Aerial bundled cable(ABC cable) up to 10kv, like Duplex ABC cable, Triplex ABC cable, Quadruplex ABC cable and so on.

5.Bare conductor like AAC, AAAC, ACSR, AACSR, ACAR, ACSR/AW, aluminum clad steel wire, galvanized steel wire and so on.}
