Quick Details
-
Brand Name:
-
YY
-
Model Number:
-
XKI-244
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000
-
Name:
-

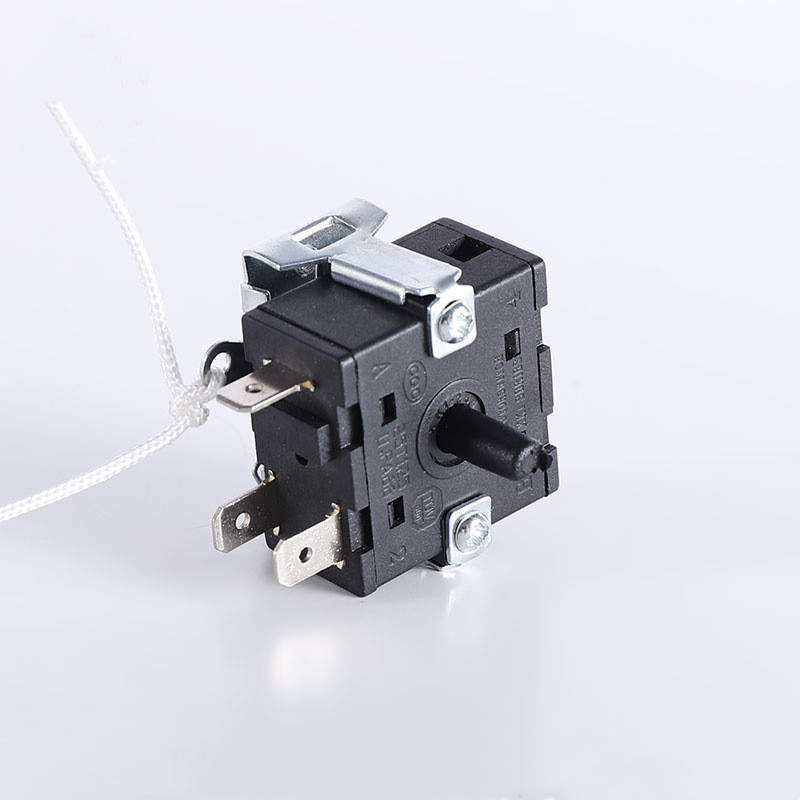

patio heater 12 way pull rope rotary switch
-
Main material:
-
PA66
-
Shaft:
-
0/11.4/15/18mm
-
Function:
-
12 position
-
Color:
-
Black or Customized
-
Operation temp:
-
-25~85℃
-
Certificate:
-
TUV/VDE/KTL/CQC
-
Usage:
-
home appliance/small machine/patio heater etc
-
Certification:
-
TUV
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
YY
-
Model Number:
-
XKI-244
-
Max. Current:
-
16A
-
Mechanical Life:
-
10000
-
Name:
-
patio heater 12 way pull rope rotary switch
-
Main material:
-
PA66
-
Shaft:
-
0/11.4/15/18mm
-
Function:
-
12 position
-
Color:
-
Black or Customized
-
Operation temp:
-
-25~85℃
-
Certificate:
-
TUV/VDE/KTL/CQC
-
Usage:
-
home appliance/small machine/patio heater etc
-
Certification:
-
TUV
|
Rating
|
16A 250VAC T100(TUV/VDE/KTL/CQC)
|
|
Contact Resistance
|
100MΩ Max
|
|
Contact resistance
|
100mΩ Min
|
|
Electrical life
|
10000cycles(16A 250VAC)
|
|
Operating Temperature
|
-25~85℃
|
|
Applicable standard
|
IEC61058-1
|
|
Contact Resistance:
|
100mΩ Max
|
|
Insulation Resistance:
|
500VDC,100MΩ Min
|
|
Dielectric Strength:
|
Terminal and terminal:1500VAC 5s
|
|
|
Terminal and ground:3000VAC 5s
|
|
Operating Temperature:
|
-25~85°C
|
|
Electrical Life:
|
10000 Cycles
|
|
Rating:
|
3(1)A 250VAC T85(CQC TUV)
|
|
Contact leg
|
Brass t0.8rass T=0.8mm
|
|
|
|
|
Contact
|
Silver alloy
|
|
|
|
|
Terminals
|
Brass T=0.8mm
|
|
|
|
|
Case
|
PA66
|
|
|
|
|
Gear
|
PA66
|
|
|
|
