Quick Details
-
Warranty:
-
30YEARS
-
Brand Name:
-
DAH
-
Model Number:
-
DHN-T56X16/FS(BB)
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1766*1132*32mm
-
Product name:
-

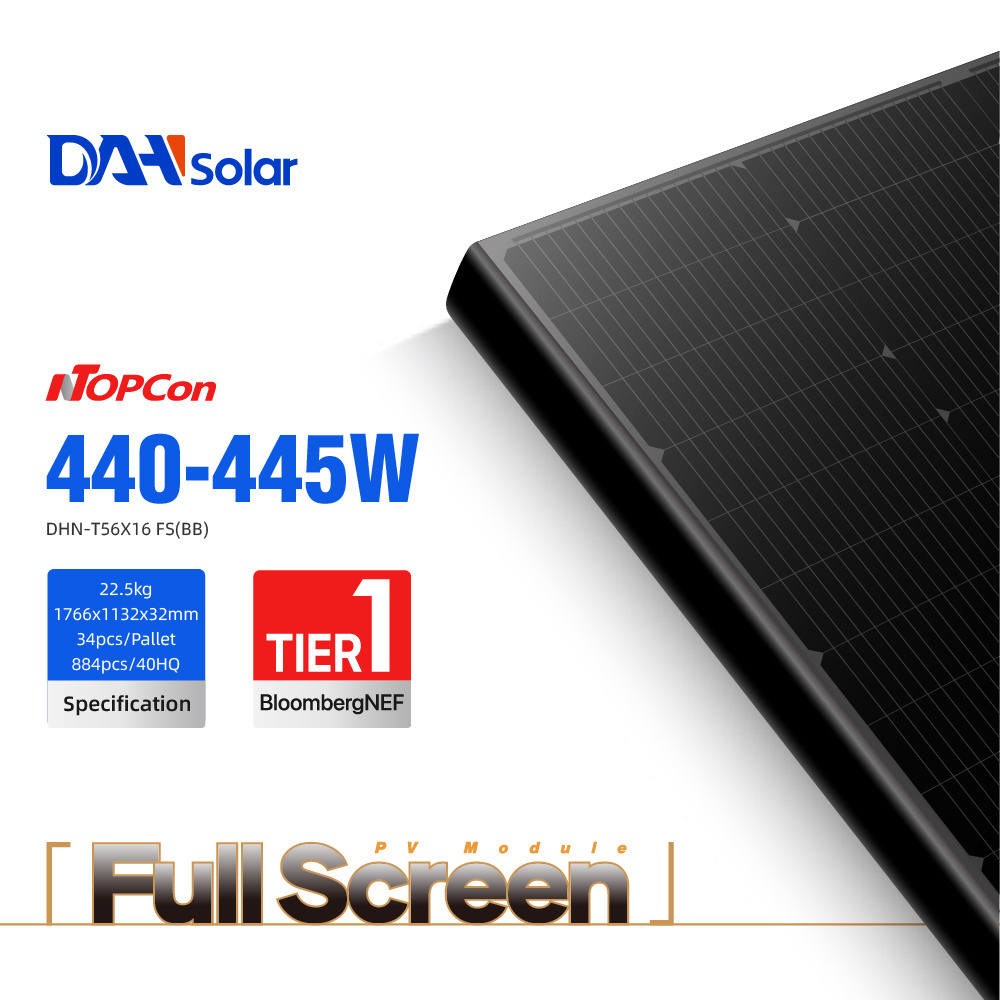

half cell 16bb 440w 445w glass module pv solar panels m10
-
Cable:
-
4.0mm 2 , 300/300mm in Length
-
Glass:
-
3.2mm High Transmission, Antireflection Coating
-
Junction Box:
-
IP68, 3 Bypass Diodes
-
Connector:
-
MC4 Compatible
-
Cells Type:
-
N-type 182*60.7mm
-
Packing:
-
34pcs/pallet, 884pcs/40HQ
-
Maximum System Voltage:
-
1500V DC
-
Application Level:
-
Class A
-
Maximum Series Fuse Rating:
-
25A
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON, Full Screen
-
Panel Efficiency:
-
22.28%
-
Warranty:
-
30YEARS
-
Brand Name:
-
DAH
-
Model Number:
-
DHN-T56X16/FS(BB)
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1766*1132*32mm
-
Product name:
-
half cell 16bb 440w 445w glass module pv solar panels m10
-
Cable:
-
4.0mm 2 , 300/300mm in Length
-
Glass:
-
3.2mm High Transmission, Antireflection Coating
-
Junction Box:
-
IP68, 3 Bypass Diodes
-
Connector:
-
MC4 Compatible
-
Cells Type:
-
N-type 182*60.7mm
-
Packing:
-
34pcs/pallet, 884pcs/40HQ
-
Maximum System Voltage:
-
1500V DC
-
Application Level:
-
Class A
-
Maximum Series Fuse Rating:
-
25A
|
Maximum Power(Pmax)
|
440W
|
445W
|
|
Open-circuit Voltage (Voc)
|
58.6V
|
58.8V
|
|
Maximum Power Voltage(Vmp)
|
49.7V
|
49.9V
|
|
Short-circuit Current (Isc)
|
9.43A
|
9.49A
|
|
Maximum Power Current (Imp)
|
8.85A
|
8.92A
|
|
Solar Panel Efficiency
|
22.01%
|
22.26%
|
