LeFu Automatic Large Size Laminating Machine LF1700-D2

LeFu Automatic Large Size Laminating Machine LF1700-D2

FOB Reference Price: Get Latest Price

≥1 Sets

US $2950

≥5 Sets

US $2900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Henan, China

Model:: LF1700-D2

Cutters:: 3 Pcs

Lamination Width:: 1630mm/64''

Lamination Speed:: 0~28m/minute

Lamination Temperture:: 0~120°C/0~248°F

Lamination Type:: Hot and Cold

Pressure/Height Adjust:: Automatic

Voltage:: AC110V-240V 50HZ-60HZ

Working Power:: Standard 2800W

Certificate:: CE, RCM, ROHS

Quick Details

Type:: Cold & Hot Laminator

Brand Name:: LeFu

Model Number:: LF1700-D2

Place of Origin:: Henan, China

Model:: LF1700-D2

Cutters:: 3 Pcs

Lamination Width:: 1630mm/64''

Lamination Speed:: 0~28m/minute

Lamination Temperture:: 0~120°C/0~248°F

Lamination Type:: Hot and Cold

Pressure/Height Adjust:: Automatic

Voltage:: AC110V-240V 50HZ-60HZ

Working Power:: Standard 2800W

Certificate:: CE, RCM, ROHS

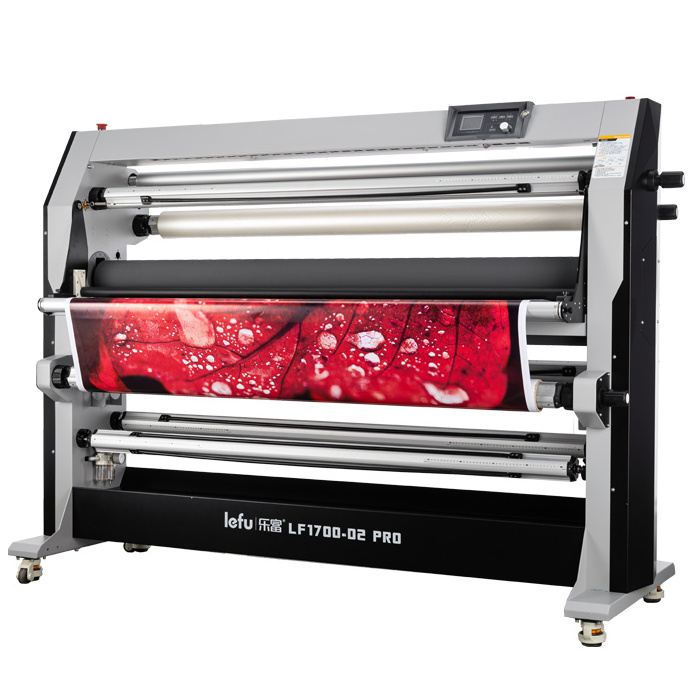

LeFu LF1700-D2 Pro Double Sides Hot and Cold Laminator

LeFu LF1700-D2 Double Sides Hot and Cold Laminator, Max Lamination Width: 1630mm, Max Lamination Temp: 0~120°C/0~248°F, Max Lamination Speed: 28 M/Min.

LeFu LF1700-D2 Double Sides Hot and Cold Laminator can be Widely Used in Signage and Graphic Industries, Used Special for Flexible Sign, Board, Irregular Shaped Panels, Banners Etc.

TECHNICAL DATA

Model	LF1700-D2 Double Sides Warm Laminator	LF1700-D2 Double Sides Hot Laminator
Lamination Type	Warm & Cold	Hot & Cold
Lamination Temp	0~60°C/0~140°F	0~120°C/0~248°F
Cutters	≥3 Sets
Laminating Type	Roll-to-Roll
Heating Roller	Top (Double Sides Lamination Optional)
Max Lamination Speed	28 M/Minute
Max Lamination Thickness	28mm/1.1''
Max Lamination Width	1630mm/64''
Roller	Silicon
Diameter of Roller	130mm
Pressure/Height Adjust	Automatic (Pneumatic Pressure)
Hand Protection Device	Safety Laser Sensor
Anti Static Electricity	Yes
Certificate	CE, RCM, ROHS
Hand Safety Sensor	Yes
Heating	Infrared
Preheating Time	10-15 min
Voltage	110V/220V 50/60Hz
Package Size	22708101660mm 3.1CBM
Gross Weight	370KGS

PRODUCT CONFIGURATION

Model: LF1700-D2 Double Sides Hot and Cold Laminator Max Lamination Width: 1630mm/64″ Lamination Temp: 0~60°C/0~140°F (0~120°C/0~248°F Optional) Max Lamination Speed: 28 M/Minute Roller Up and Down: Pneumatic Pressure

LF1700-D2 Double Sides Hot and Cold Laminator Is Perfect For Most Applications of Sign and Graphic. The Dual-heated Rollers with Max Temperature Of 120C Offers the Possibility Not Only for Laminating but Also for Mounting and Encapsulating Up to 1630mm.

Additionally, its Fully Adjustable Tungsten Blades Can Cut Most Materials with a Lifetime That over 15000m.

① Electron Magnetic Valve----Adjust Roller Up and Down though Compressed Air
② Intelligent Control System----Lamination Speed, Temperature and Lamination Statistics Display
③ Speed Controller----Control Lamination Speed 0-18 M/Minute
④ Material Bar----To Hold Lamination Photos
⑤ Emergency Stop----Can Give Laminator Emergency Stop
⑥ Film Bar----To Hold Lamination Film
⑦ Silicon Roller----Long Time Service Life under High Temperature Lamination
⑧ Lamination Platform----Can Check Lamination Quality on Time
⑨ Liner Film Bar---- To Hold Lamination Bottom Paper
⑩ Universal Wheel----To Move Laminator Conveniently

LAMINATOR DETAILS

Intelligent Control System

● Operation is more Intuitive and Convenient
● Pulse-Type Speed Control Knob, Precise and Durable
● Lamination Speed, Temperature and Lamination Statistics Display

Rear Control Panel
● LF1700-D2 Hot Roll Laminator Lamination Sart-stop and Speed Control.
● Cutting Function Active. Lamination Statistics Display

Rear Safety Trimmer

● There are 3 Rear Tungsten Steel Trimmer
● Tungsten Steel Trimmer Usage can be More than 15000m

Strengthen Materials Bar

● LF1700-D2 Pro Hot Roll Laminator Winding Diameter is 320mm.
● Stable and Durable Frame Design can Meet 200 meters of Vinyl Sticker Lamination

Anti-Static Liner
● Remove Static during High Speed Lamination
● Can Set Lamination Meter, When Closing Finish Lamination, Laminator will Stop Automatically

Silicon Roller
● Silicon Roller Can Avoid Any Bubbles and Folds during Lamination
● Up and Down Roller use Silicon and Solid Seamless Steel Tube
● Silicon Roller Has Long Time Service Life under High Temperature Lamination

LEFU FACTORY

LeFu is a leading manufacturer of Roll laminator, Flatbed Laminator, Cutting device, Film stand and clips, PVC Film for all segments of the graphics and building industries in China.
For many years, LeFu has been an innovative force in the lamination industry from the first automated heat-assist cold laminator to the year 2011 introduction of flatbed laminator a revolutionary adhesive system designed specifically for rigid or flexible materials. Amazingly, LeFu launched the hybrid laminating and cutting machine in the year 2014, which brings an efficient and profession way for sign makers.

LEFU EXPO

Rich experience of lamination technologies in the hardware and film, we have design, develop, manufacture and sell laminator to 31600 users for 61 countries (2017). Our two laminator brands MeFu and LeFu full-auto and semi-auto hot and cold laminators are popular in world market. The quality and service are welcome by our customers.

LEFU TEAM

LEFU has standard for many types of wide format laminator, and that did not happen by accident, since we invented the method and technology, it has undergone a natural development based on our customer’s requirements and specific problems as well as our own 10 years experience as manufacturer. Our dedication to customer satisfaction and quality is unsurpassed.

LEFU CUSTOMERS

LeFu Laminator is a leading manufacturer of Automatic Laminator, Roll Laminator, Hot Laminator, Warm Laminator, Cold Laminator, Wide Format Laminator, Flatbed Laminator in China from year of 2006.

PACKING AND DELIVERY

The Package Uses Wooden Box for Free Fumigation Packaged:

2270*870*920=1.816CBM
G.W.: 290kgs
