Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SL
-
Model Number:
-
SL45ZYT
-
Voltage(V):
-
24V
-
Output Power:
-
30W
-
Torque:
-
0.12Nm
-
Name:
-
45ZYT DC MOTOR
-
Voltage:
-
24v
-
Rated current:
-
2-3A
-
Rated Speed:
-
1000-2000rpm
-
Rated Power:
-
25-30W
-
Rated torque:
-
1.2A
-
Length:
-
81mm
-
Application:
-
Automatic Product
-
Size:
-
45mm
-
Motor type:
-
dc brush
Quick Details
-
Speed(RPM):
-
1500rpm-2000rpm
-
Continuous Current(A):
-
2
-
Efficiency:
-
IE 2
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SL
-
Model Number:
-
SL45ZYT
-
Voltage(V):
-
24V
-
Output Power:
-
30W
-
Torque:
-
0.12Nm
-
Name:
-
45ZYT DC MOTOR
-
Voltage:
-
24v
-
Rated current:
-
2-3A
-
Rated Speed:
-
1000-2000rpm
-
Rated Power:
-
25-30W
-
Rated torque:
-
1.2A
-
Length:
-
81mm
-
Application:
-
Automatic Product
-
Size:
-
45mm
-
Motor type:
-
dc brush
Application
TO MEET THE UPCOMING PURCHASE SECTION, ALL SAMPLES HAVE 20% OFF DISCOUNT
WELCOME TO ORDER AND VISIT
Product Attribute
| SPECIFICATION OF SL45ZYT DC MOTOR | ||||||
| Model |
Voltage
(V) |
Rated Current
(A) |
Rated Speed
RPM |
Rated Power
(W) |
Rated Torque
(N.m) |
Length
(mm) |
| 45ZYT-01A24 | 24 | 2 | 2300 | 30 | 0.12 | 81 |
| 45ZYT-02A24 | 24 | 1.5 | 2000 | 25 | 0.1 | 81 |
| 45ZYT-03A24 | 24 | 3 | 2500 | 35 | 0.15 | 81 |
| 45ZYT-04A24 | 24 | 3 | 1800 | 20 | 0.07 | 81 |
| 45ZYT-01A12 | 12 | 3 | 1000 | 28 | 0.1 | 81 |
| General scope: | ||||||
| Voltage | 12 & 24 V DC | |||||
| Output Power | 0 - 35 W | |||||
| Rated Speed | 0-5000 RPM | |||||
| Ambient Temperature | ’-20℃ ~ +40℃ | |||||
| Insulation class | B,F | |||||
| Use occasions | Massage chair machine, printer and so on | |||||
THE DRAWING OF 45ZYT DC MOTOR

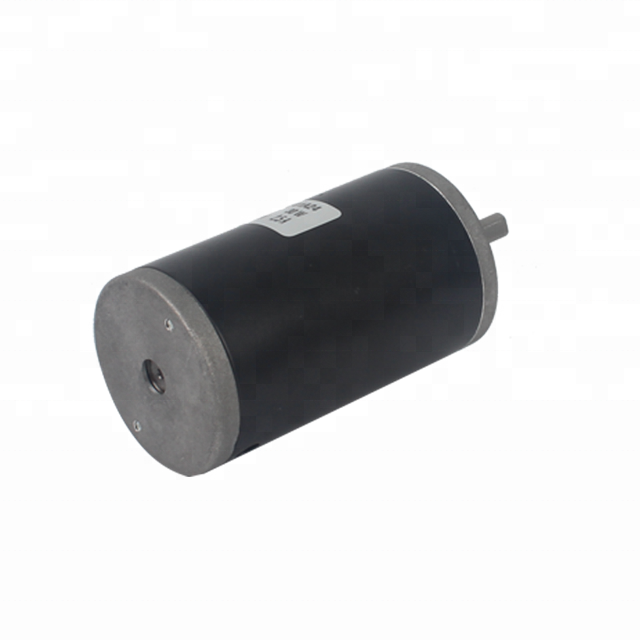

THE DETAILED PICTURES OF 45ZYT DC MOTOR
