Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD Laser
-
Marking Head Brand:
-
WD
-
Weight (KG):
-
50 KG
-
Product name:
-
Portable Mini Fiber Laser Marking Machines
-
Keywords:
-
Fiber Laser Marking Machines
-
Laser power:
-
20W 30W 50W 60W 70W 80W 100W
-
Function:
-
Cutting Engraving marking
-
Laser source:
-
MAX RAYCUS IPG JPT
-
Control system:
-
JCZ Control System
-
Applicable Material:
-
Metal Materials
-
Working area:
-
110*110mm/ 150*150mm/ 200*200mm/ 300*300mm
-
Cooling system:
-
Air Colling
-
Laser mode:
-
Fiber Laser Souce
Quick Details
-
Working Accuracy:
-
0.01MM
-
Graphic Format Supported:
-
AI, BMP, DXF, PLT, LAS, DXP, CDR
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD Software
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WD Laser
-
Marking Head Brand:
-
WD
-
Weight (KG):
-
50 KG
-
Product name:
-
Portable Mini Fiber Laser Marking Machines
-
Keywords:
-
Fiber Laser Marking Machines
-
Laser power:
-
20W 30W 50W 60W 70W 80W 100W
-
Function:
-
Cutting Engraving marking
-
Laser source:
-
MAX RAYCUS IPG JPT
-
Control system:
-
JCZ Control System
-
Applicable Material:
-
Metal Materials
-
Working area:
-
110*110mm/ 150*150mm/ 200*200mm/ 300*300mm
-
Cooling system:
-
Air Colling
-
Laser mode:
-
Fiber Laser Souce
Product Description
Diy Logo Printer 30W 20W 60W 50W Fiber Laser Marking Machines Credit Cards Laser Engraving Portable Mini Laser Marking Machines
Fiber Laser Marking Machines Parameters：
1）Working area: 70*70mm -110*110mm-150*150mm-200*200mm-300*300mm
2）Laser Power：20W/30W/50W/60W/70W/100W/200W 300W Optional
3）Laser Source Optional：Max Raycus JPT IPG
4）Linear Speed: 0-8000mm/s
5）Min Size：0.2*0.2mm（Chinese）0.1*0.1mm(English）
6）Support Format: CDR/BMP/ PLT/ DCF/AL etc.
7）Marking Depth：0.01mm-0.2mm(depends material）
8）Control Board：BJJCZ ；Software -EZCAD ；
9）GalvoScanner：RC1001（Standard) RC7110 RC7310 SG7310 Upgraded)
FIber laser marking Machine ：Suitable for any metal, engineering plastics, electroplating materials, coating materials, spraying
materials, plastic rubber, epoxy resin and ceramics
2）Laser Power：20W/30W/50W/60W/70W/100W/200W 300W Optional
3）Laser Source Optional：Max Raycus JPT IPG
4）Linear Speed: 0-8000mm/s
5）Min Size：0.2*0.2mm（Chinese）0.1*0.1mm(English）
6）Support Format: CDR/BMP/ PLT/ DCF/AL etc.
7）Marking Depth：0.01mm-0.2mm(depends material）
8）Control Board：BJJCZ ；Software -EZCAD ；
9）GalvoScanner：RC1001（Standard) RC7110 RC7310 SG7310 Upgraded)
FIber laser marking Machine ：Suitable for any metal, engineering plastics, electroplating materials, coating materials, spraying
materials, plastic rubber, epoxy resin and ceramics
|
Model
|
Fiber Laser Marking Machines
|
|
Laser power
|
20W/30W/50W/60W/70W/100W
|
|
Laser Wavelength
|
1064nm
|
|
Q-frequency
|
20KHz~100KHz
|
|
Divergence
|
0.3mard
|
|
Marking range
|
70*70mm-300*300mm
|
|
Minimum line width
|
0.01mm
|
|
Minimum character
|
0.1mm
|
|
Marking speed
|
7000mm/s
|
|
Marking depth
|
0 ~1mm
|
|
Engraving line speed
|
≤7000mm/s
|
|
Repeatability accuracy
|
±0.001mm
|
|
Beam quality
|
M2:1.2~1.8
|
|
Marking Format
|
Graphics, text, bar codes, two-dimensional code, automatically
|
|
|
marking the date, batch number, serial number, frequency,etc.
|
|
Graphic format supported
|
bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.
|
|
working voltage
|
220V±10%/50Hz/4A
|
|
Unit power
|
<0.5kw
|
|
Working environment
|
Clean and dust free or dust less
|
|
Working (Humidity)
|
5%-75%,free of condensed water
|
|
Laser module life
|
100000~200000 hours
|
|
Net weight
|
35kg
|
|
Warranty
|
24 months
|
|
Product Name
|
Fiber Laser Marking Machines Laser Engraving Machines
|
|
Key Words
|
Fiber Laser Marking Machines
|
|
Packing Size
|
90*40*70CM
|
|
Gross Weight
|
60KGs
|
|
Cnc OR Not
|
Not
|
|
Cooling Method
|
Air Cooling
|
What Can Fiber Laser Marking Machine do?
Fiber laser marking engraving machine equipped with laser source of 20w 30w 50w 60w 70w or 100w. They can mark photos,pictures, nameplates, also can do deep engraving and cuttings on thin jewelry, gold, silver, brass, aluminum sheets of at most 2mm thickness.
Once update to
2.5D or 3D
fiber laser, it's able to 3D engrave jewelry, necklace and mold coin. With rotary fixture,laser machines can engrave rings/round bracelet inside and outside. Fast marking on materials surface, deep engraving metal,cutting jewelry names, 3D relief engraving metal. Laser machine for engraving logo, text, time, serial, part number, QR code, bar code, 2D code, bitmap, pictures and images on almost all metal and part of non-metal materials. Applicable for engraving gold silver jewelry, firearm guns, gift items, tumbler cups mugs, pens, auto parts, knives, metal tools and machinery parts etc.
1）Split Model:

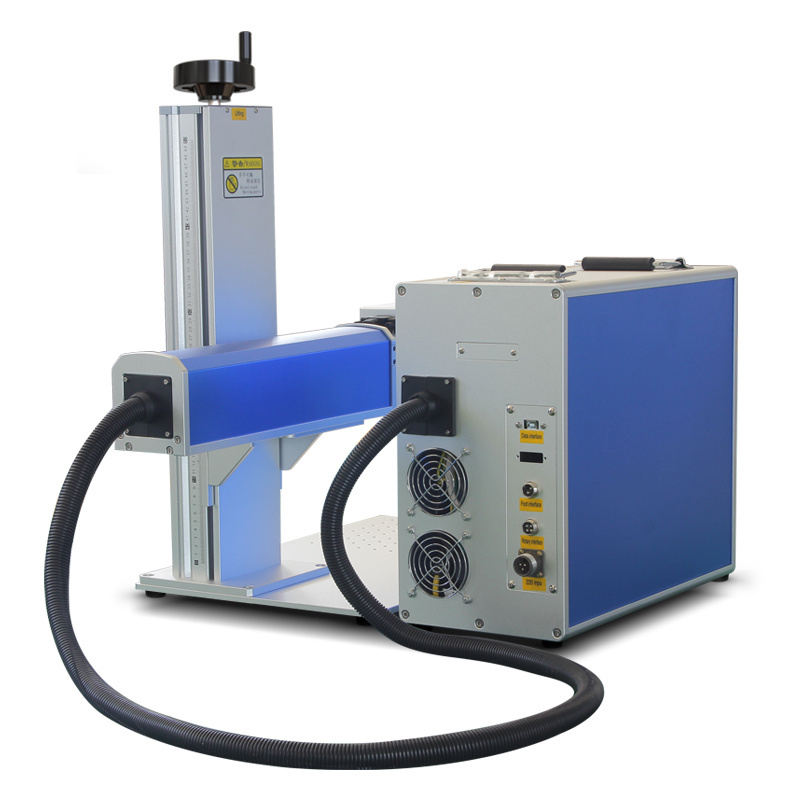

2）Portable Model:
3）Desktop Model:
Details Images
Accessories
Sample
Product packaging
