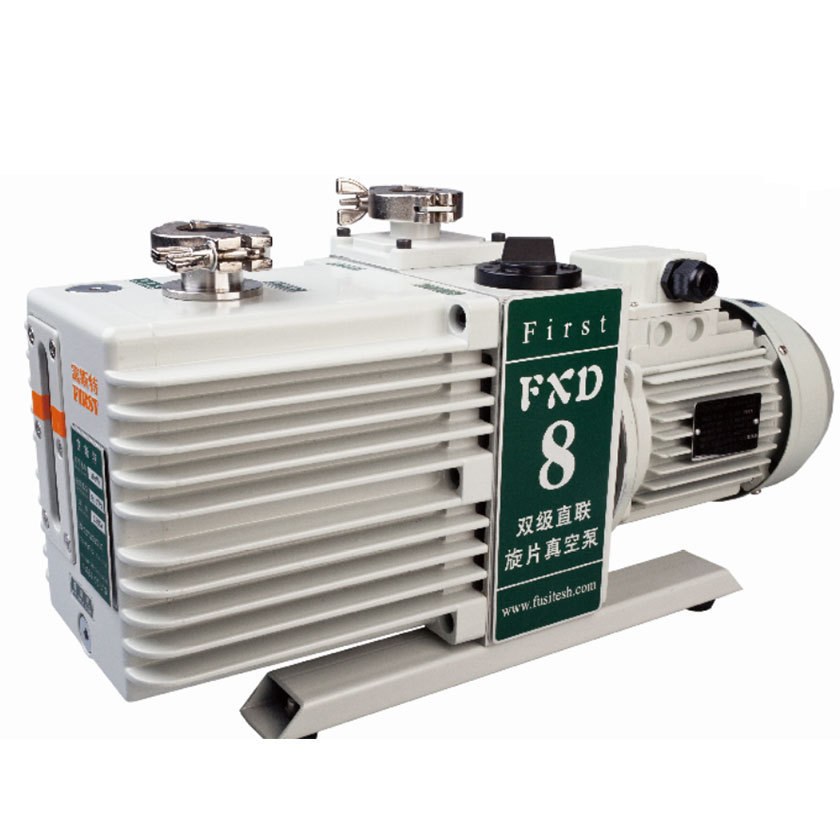

Two stage oil sealed rotary vane vacuum pump

Two stage oil sealed rotary vane vacuum pump

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1700

≥10 Pieces

US $1400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shanghai, China

Structure:: double stage rotary vane vacuum pums

Pressure:: High Pressure

Type:: Dual-stage oil sealed vacuum pump

Pump speed:: 8m3/hr , 5CFM IN 50Hz

Ultimate vacuum pressure:: 0.3microns, 4X10^-4mbar

Power supply:: 220V/50Hz/1Phase, 220V-460V/50Hz or 60Hz/3Phase

Power:: 0.37Kw

Weight:: 30KGS

Quick Details

Warranty:: 1 YEAR

Brand Name:: FX

Model Number:: FXD8

Place of Origin:: Shanghai, China

Structure:: double stage rotary vane vacuum pums

Pressure:: High Pressure

Type:: Dual-stage oil sealed vacuum pump

Pump speed:: 8m3/hr , 5CFM IN 50Hz

Ultimate vacuum pressure:: 0.3microns, 4X10^-4mbar

Power supply:: 220V/50Hz/1Phase, 220V-460V/50Hz or 60Hz/3Phase

Power:: 0.37Kw

Weight:: 30KGS

Product Description

Dual-stage Oil sealed Vacuum Pump

with ultimate vacuum down to 0.3 microns.

The N features industrial grade design to stay fast, robust and durable.
Two-shift adjustable gas ballast valve
Allows for the different requirements of condensable gas to be exhausted.
Dual automatic anti-suckback design
Protects vacuum system from oil contamination in the event of an unexpected shut down.
Forced oil circulation system
Ensures stables running of the pump.
Integrated cylinder structure and pin connection
No sealings parts leads to longer service time and easy maintenance.

Our Advantage:

24 years Production experience in Two -Stage Oil Rotary Vane Vacuum Pump.

Instant after-service.

Vacuum pump long service time (10-15 years ) .

Each pump will be under test for 10 hrs before shipment to keep the high quality.

Specifications

Model	FX8/ FXD8	FX16/FXD16	FX32	FX60
Pump speed (50Hz)	8m3/hr, 5CFM	16m3/hr, 9CFM	32m3/hr, 20CFM	60m3/hr, 37CFM
Pump speed (60Hz)	9.6m3/hr, 6CFM	19.2m3/hr, 11CFM	38.4m3/hr, 24CFM	72m3/hr, 44CFM
Ultimate partial vacuum pressure	4x10^-2Pa 4X10^-4mbar 0.3Microns	4x10^-2Pa 4X10^-4mbar 0.3Microns	4x10^-2Pa 4X10^-4mbar 0.3Microns	4x10^-2Pa 4X10^-4mbar 0.3Microns
Noise Lw: dB(A)	62 dB(A)	65dB(A)	69dB(A)	70dB(A)
Inlet	KF25 Flange	KF25 Flange	KF40 Flange	KF40 Flange
Outlet	KF25 Flange	KF25 Flange	KF25 Flange	KF25 Flange
Oil consumption	1.1Liter	1.5Liter	2.8Liter	4.0Liter
Recommended oil type	HFV-M200	HFV-M200	HFV-M200	HFV-M200
Motor power	0.37Kw	0.55Kw	1.1Kw	2.2Kw
Power supply	120V/60Hz/1P/AC 220V/50Hz/1P/AC 220V-460V/50Hz or 60Hz /3p/AC		220V-460V/50Hz or 60Hz/3P/AC 480V/60Hz/3P/AC
N.W.:/G.W.:	27KGS/29KGS	29KGS/35KGS	61KGS/65KGS	65KGS/70KGS
Dimension	510x170x260mm	550X170X260mm	630X240X410mm	690X240X410mm
Pump service time	10-15years	10-15years	10-15years	10-15years

Applications

<<< Short Path Distillation application>>>

FX8/FXD8Vacuum Pump-6CFM

Pump speed: 6CFM

Max vacuum: 0.3microns

Power supply: 120V/60Hz/1Phase

Pump service time: 10-15 years.

<<<Short Path Distillation application>>>

FX16/FXD16Vacuum Pump-11CFM

Pump speed: 11CFM
Max vacuum: 0.3microns
Power supply: 120V/60Hz/1Phase
Pump service time: 10-15 years.

< << Laboratory / Vacuum Oven/ Freeze Dryer >>>

FX8/FXD8 Vacuum Pump-6CFM

Pump speed: 6CFM
Max vacuum: 0.3microns
Power supply: 120V/60Hz/60Hz
Pump service time: 10-15 years.

<<<Refrigerator/ Air conditioning/ Water-dispenser

Production Application>>>

FX8/FXD8/FX16/FXD16/FX32

5CFM/11CFM/24CFM

<<<Refrigerator production line>>>

F X8/FXD8/FX16/FXD16/FX32

5CFM/11CFM/24CFM

Certifications

Company Introduction:

SHANGHAI FIRST VACUUM PUMP CO.,LTD is founded in 1997 and specialize in Produce Vacuum Pump for 23 years. ISO and CE approved. Annual output reaches 10000 sets.

Main Products: Double-Stage Oil Rotary Vane Vacuum Pump, Single-Stage Oil Rotary Vane Vacuum Pump and accessories like (Vacuum Bellows, Hose adapter, KF Clamps etc).

Front Side View

Back Side View

Side view

Products Picture

Packing & Delivery

Lead time around 3-5 working days.
FX8/FXD8	Plywood case Packing size: 63X50X35cm N.W./G.W.: 30KGS/35KGS
FX16/FXD16	Plywood case Packing size: 63X50X35cm N.W./G.W.: 35KGS/40KGS
FX32	Plywood case Packing size: 73X50X35cm N.W./G.W.: 65KGS/70KGS
FX60	Plywood case Packing size: 83X50X35cm N.W./G.W.: 70KGS/75KGS
