Quick Details
-
Place of Origin:
-
Haryana, India
-
Brand Name:
-
SAHIL GRAPHICS
-
Model Number:
-
Sg PBM 650C
-
Voltage:
-
380V Three Phase
-
Dimension(L*W*H):
-
5.6x1.9x1.8m
-
Weight:
-
3.5 KG
-
Marketing Type:
-
New Product
-
Max Speed:
-
500pcs/min
-
Product name:
-
V Bottom Paper Bag Making Machine
-
Bag width:
-
70-350mm
-
Paper Roll Width:
-
260-940mm
-
Printing Type:
-
Flexographic
-
Paper Weight:
-
30-80g/m2
-
Bag Length (L):
-
160-450mm
-
Glue Motor:
-
70 W
-
Usage:
-
Paper Bag Making
Quick Details
-
Machine Type:
-
Bag Making Machine
-
Bag Type:
-
Paper Bag
-
Material:
-
Paper
-
Place of Origin:
-
Haryana, India
-
Brand Name:
-
SAHIL GRAPHICS
-
Model Number:
-
Sg PBM 650C
-
Voltage:
-
380V Three Phase
-
Dimension(L*W*H):
-
5.6x1.9x1.8m
-
Weight:
-
3.5 KG
-
Marketing Type:
-
New Product
-
Max Speed:
-
500pcs/min
-
Product name:
-
V Bottom Paper Bag Making Machine
-
Bag width:
-
70-350mm
-
Paper Roll Width:
-
260-940mm
-
Printing Type:
-
Flexographic
-
Paper Weight:
-
30-80g/m2
-
Bag Length (L):
-
160-450mm
-
Glue Motor:
-
70 W
-
Usage:
-
Paper Bag Making
Product Description
Description :-

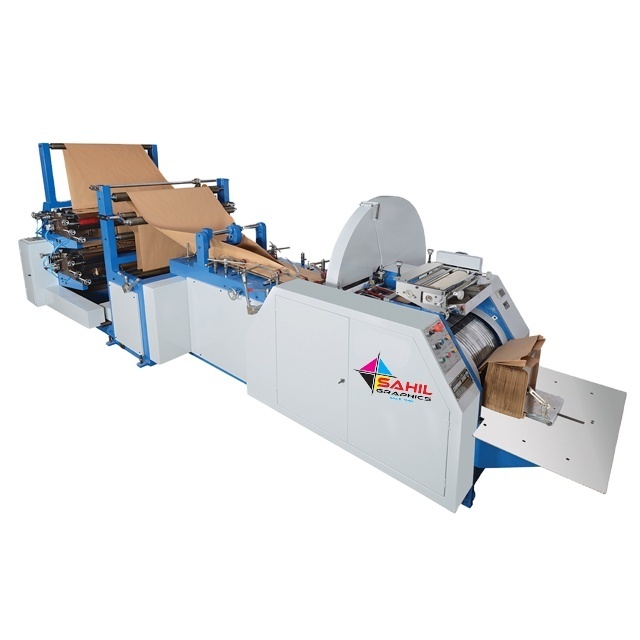

V Bottom Paper Bag Making Machine(PBM 270C/ PBM 350C/ PBM 650C)
With the advancement in technology, new and modern machines are coming up in the market, one such new entry in the field of bag-making machine is a new range of Grocery Bag Making Machine which has an additional feature of 2-color printing On-Line.
Specification
| S NO | MODEL | SG-PBM 270C | SG-PBM 350C | SG-PBM 650C |
|---|---|---|---|---|
| 1 | Paper Weight | 30-80g/m2 | 30-80g/m2 | 30-80g/m2 |
| 2 | Bag Length (L) | 160-450mm | 160-450mm | 200-650mm |
| 3 | Bag Width (W) | 70-270mm | 70-350mm | 80-450mm |
| 4 | Paper Roll Width | 260-720mm | 260-940mm | 260-1200mm |
| 5 | Unwind Roll Dia. | 1000mm | 1000mm | 1000mm |
| 6 | Machine Speed | 60-500 bags/min | 60-500 bags/min | 60-250 bags/min |
| 7 | Printing Type | Flexographic | Flexographic | Flexographic |
| 8 | Printing Repeat Type | 280-450mm | 280-450mm | 280-650mm |
| 9 | Max Effective Printing Width | 720mm | 900mm | 1100mm |
| 10 | Flexo Plate Thickness | 2.8mm | 2.8mm | 2.8mm |
| 11 | Machine Weight | 2500kg | 2800kg | 3200kg |
| 12 | Weight (Approx.) | 1800 Kg | 2000 Kg | 2500 Kg |
| 13 | Drive Motor | 5HP AC variable | 5HP AC variable | 5HP AC variable |
| 14 | Glue Motor | 70 W | 70 W | 70 W |
| 15 | Dimensions (Approx.) | 14x5x5.5ft. | 14x6x5.5ft. | 14x7x5.5ft. |
