Quick Details
-
Model Number:
-
TSA800
-
Dimension:
-
483X330X45mm
-
Power Supply Mode:
-
power supply
-
SNR:
-
≥105dB, 105dB
-
Output Power:
-
800w
-
Product Name:
-
Power Amplifier Professional
-
Application:
-
KTV/Mobile performance /Arena /Concert hall
-
Model:
-
TSA800
-
Channel:
-
2-Channel
-
Material:
-
Metal
-
Weight:
-
10KG
-
MOQ:
-
1PCS
-
Size:
-
483*300*45mm
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
lihui
-
Model Number:
-
TSA800
-
Dimension:
-
483X330X45mm
-
Power Supply Mode:
-
power supply
-
SNR:
-
≥105dB, 105dB
-
Output Power:
-
800w
-
Product Name:
-
Power Amplifier Professional
-
Application:
-
KTV/Mobile performance /Arena /Concert hall
-
Model:
-
TSA800
-
Channel:
-
2-Channel
-
Material:
-
Metal
-
Weight:
-
10KG
-
MOQ:
-
1PCS
-
Size:
-
483*300*45mm
Products Description
|
ITEM
|
|
TSA 800
|
|
|
|||
|
8Ω
|
|
800W*2
|
|
|
|||
|
4Ω
|
|
1400W*2
|
|
|
|||
|
BLT 16Ω
|
|
1500W
|
|
|
|||
|
response8Q,20Hz--20kHz，1/8 rated power
|
|
±0.5dB
|
|
|
|||
|
1KHZ THD
|
|
≤0.02%
|
|
|
|||
|
Signal-to-Noise Ratio8Q,1kHz,1v Sensitivity
|
|
≥105db
|
|
|
|||
|
Input sensitivity (rated power 8Q)
|
|
0.775V/1V/2V
|
|
|
|||
|
Class
|
|
D
|
|
|
|||
|
Input impedance
|
|
20kQ /10kQ
|
|
|
|||
|
Damp Factor
|
|
>=220v
|
|
|
|||
|
Warranty
|
|
1Years
|
|
|
|||
▽
High efficiency, low loss, fast heat dissipation, low distortion noise, and large dynamic range
▽
Active Power Factor Correction Technology (PFC）
▽
Efficient loudspeaker Counter-electromotive force absorption system
▽
Unique peak shaving limiter and ripple elimination network
▽
Temperature controlled variable speed fan, with airflow flowing from front to back
▽
Backplane connection mode selection (stereo/parallel/bridge)
▽
The back panel is equipped with input sensitivity selection switch (0.775v/1v/2v)
▽
Perfect circuit protection, including soft start, DC, sub audio, high frequency, overheating, short circuit, power on/off mute, powerful low frequency, extremely low diving depth, transparent, clear, and pleasing to the ear in mid to high frequencies;
▽

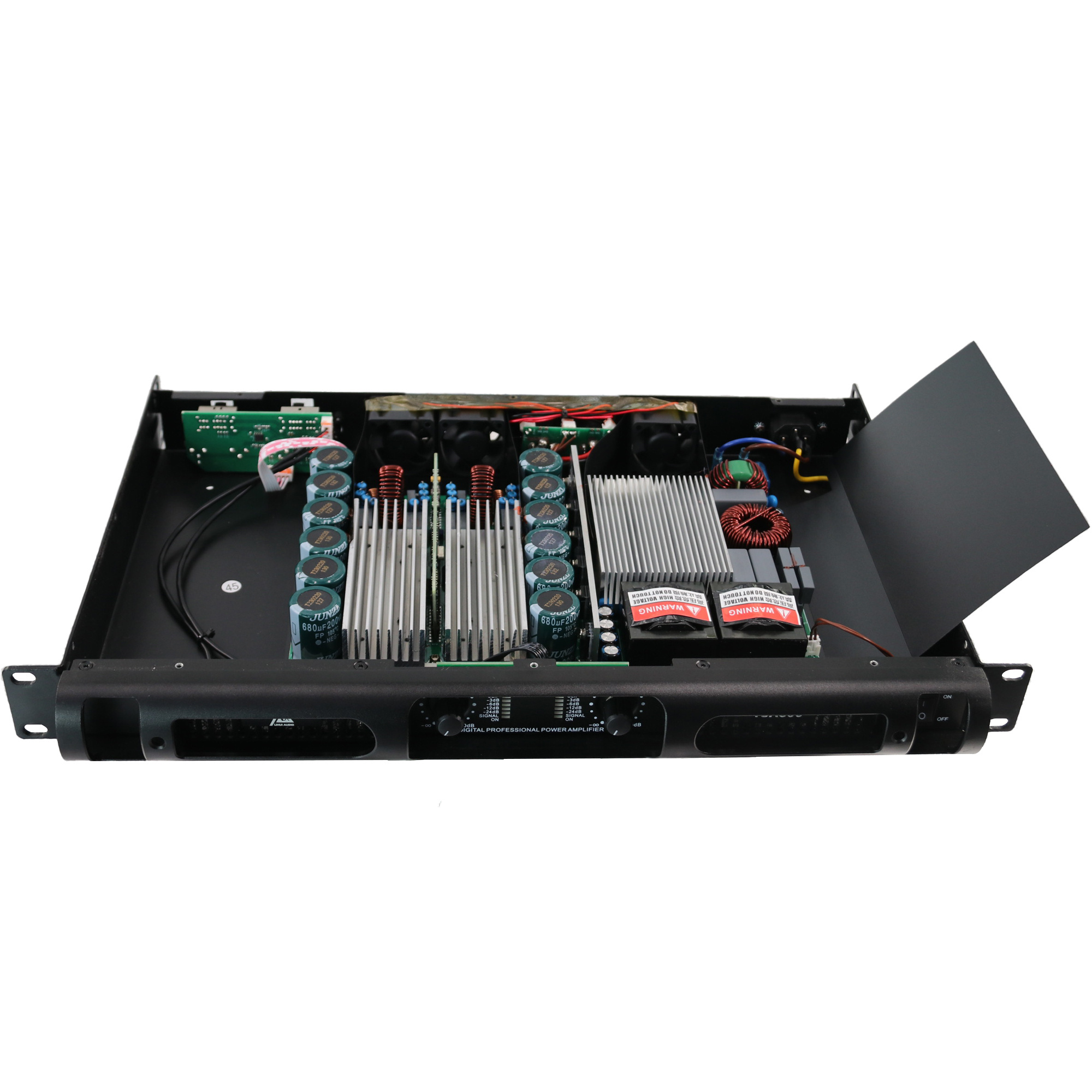

The integrated design of power amplifier modules and power supply modules ensures that over 90% of the devices are automated to ensure product consistency
▽
ClassD power amplifier module with fixed switching frequency
▽
Soft switching LLC resonant switching power module
Customization Process
OEM&ODM
We have over 20 designers and over 30 engineers who can provide you with excellent customized plans.
From appearance, power, access, pre sales consultation and after-sales service, we are all happy to discuss with you. And the products we sell have a two-year warranty service guarantee
From appearance, power, access, pre sales consultation and after-sales service, we are all happy to discuss with you. And the products we sell have a two-year warranty service guarantee
Custom Outlook
Regarding the appearance design, you can use our designer drawings or process them to customize your
Amplifier Housing
Custom amp board
Circuit board design, you can choose the size, channel, power, and heat dissipation that need to be customized to perfectly fit your sales market
