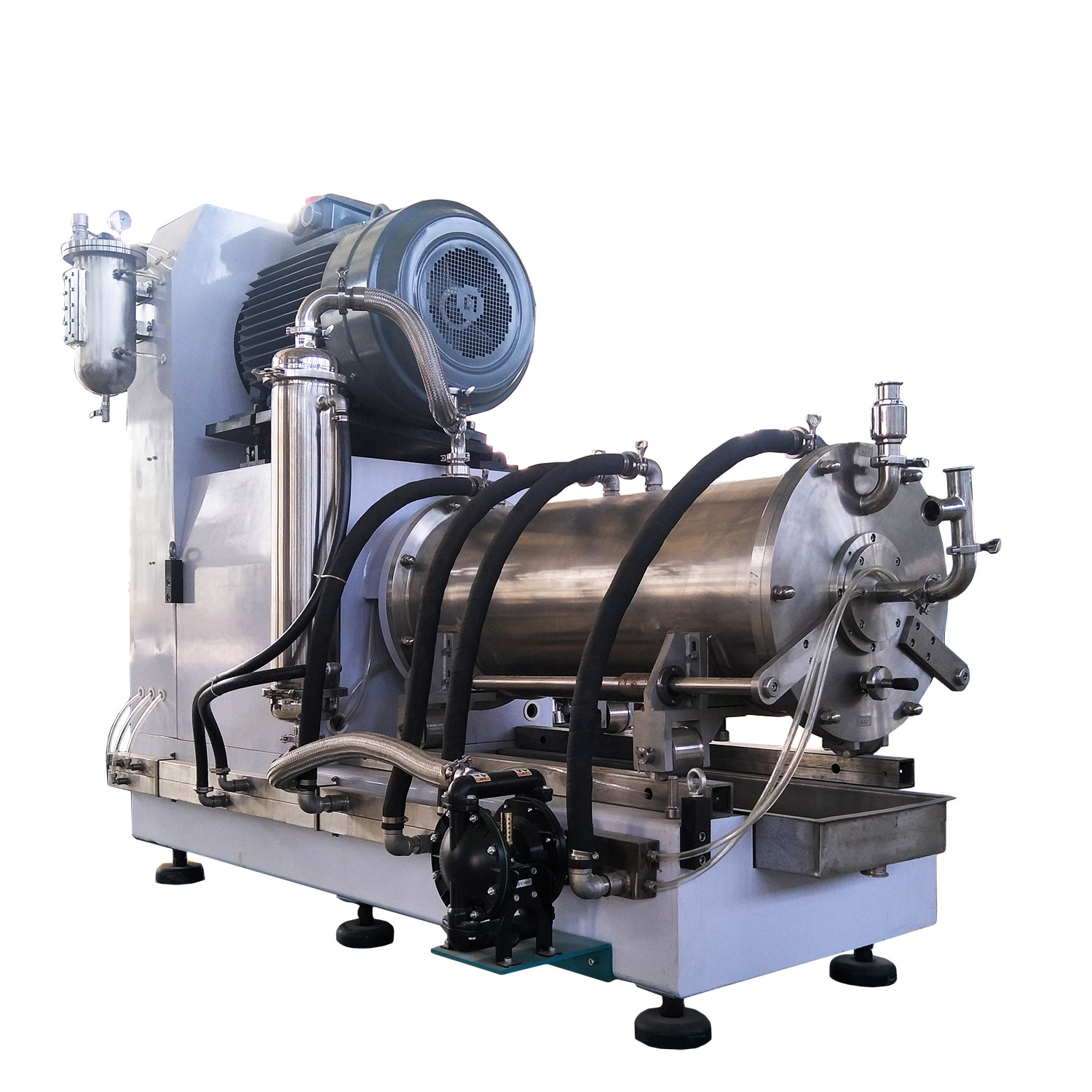

RTSM-100AJ is used in Hunan Magnetci Material Factory. The magnetic material need finish size 1micron to perform a good function in compound material. As horizontal sand mill gots the property of an even finish size distribution, so the final particle size are at D90 smaller than 1micron.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
135
-
Range of Spindle Speed(r.p.m):
-
0.1 - 1280 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ROOT
-
Voltage:
-
380V 50Hz 3-phase (can be customized)
-
Dimension(L*W*H):
-
according to different mill model
-
Weight (KG):
-
1500 KG
-
Marketing Type:
-
ROOT Populat Hot Selling Product
-
Machine Name:
-
horizontal 100L bead mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
horizontal sand mill/cylindrical grinder for paint/pigment/dye
-
Feeding Pump:
-
Pneumatic diaphragm pump/frequency control gear pump
-
Main Material:
-
ceramic/PU/stainless steel
-
Discharging Mode:
-
dynamic/static
-
Control System:
-
Frequency control/PLC (optional)
-
MOQ:
-
1 Set
-
Certifications:
-
CE / ISO 9001 / ISO 14005
-
Processing Capacity:
-
10-100L
Quick Details
-
Output (kg/h):
-
50 - 1000 kg/h
-
Feeding Size (mm):
-
0.05 - 0.2 mm
-
Output Size (mesh):
-
5000 - 8000 mesh
-
Power (kW):
-
135
-
Range of Spindle Speed(r.p.m):
-
0.1 - 1280 r.p.m
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ROOT
-
Voltage:
-
380V 50Hz 3-phase (can be customized)
-
Dimension(L*W*H):
-
according to different mill model
-
Weight (KG):
-
1500 KG
-
Marketing Type:
-
ROOT Populat Hot Selling Product
-
Machine Name:
-
horizontal 100L bead mill
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Machine Type:
-
horizontal sand mill/cylindrical grinder for paint/pigment/dye
-
Feeding Pump:
-
Pneumatic diaphragm pump/frequency control gear pump
-
Main Material:
-
ceramic/PU/stainless steel
-
Discharging Mode:
-
dynamic/static
-
Control System:
-
Frequency control/PLC (optional)
-
MOQ:
-
1 Set
-
Certifications:
-
CE / ISO 9001 / ISO 14005
-
Processing Capacity:
-
10-100L
Product Description
Introduction:
Industrial static disc sand mill is widely applied in the production of water-based and low-viscosity material. RTSM-AJ adopts centrifugal screen discharging with larger flow rate and final product rate. In indistrial production, it could realize different grinding process such as single set recycling grinding, double tank grinding, two sets in series grindingetc. Optimized idsc structure and discharging structe make better finish size and distribution. Finish size could reach 1 micron for D90.
Main Applications:
Now RTSM-AJ series sand mill are widely applied in industries with high requirements for fineness and dispersion property such as disperse dye, vat dye, organic pigment, water slurry, pesticide sc etc.
Core Features:
1. Patent grinding disc structure of the grinding bead mill has a bigger action area for the grinding media. Bigger shearing force and higher efficiency.
2. Double cooling systems for the chamber and end cap. The dissolvent which is compatible with grinding material can be added as cooling agency to reduce the production loss because of the leakage.
3. Feeding device: USA imported pneumatic diaphragm pump or frequency control gear pump is optional as clients' requirements. Feeding and discharging tubes are imported USA with good solvent resistant property.
4. High security property. The grinding bead mill will automatically stop working when there is water shortage, air pressure shortage or over-high material temperature.
5. Grinding chamber and rotor is made of high wear resistant alloy steel which has no metallic pollution and discoloring. PU and ceramic material are optional according to actual condition.
6. Reasonable design for inner and outer structure allows stable performance with no vibration and noise.
7. Ceramic and PU material are optional.
8. Frequency control and PLC are optional
9. With CE&ISO9001:2008 qualification.
10. Dynamic or static separating system for different material to ensure smooth discharging.
|
Model
|
Volume
(L)
|
Motor Power
(KW)
|
Medium Size
(mm)
|
Weight
(kg)
|
Dimension
(mm)
|
|
RTSM-10AJ
|
10
|
15
|
0.4-0.6
|
60
|
1200x875x1150
|
|
RTSM-30AJ
|
30
|
30
|
0.4-0.6
|
1000
|
1350x850x1450
|
|
RTSM-60AJ
|
60
|
37
|
0.4-0.6
|
1500
|
2000x900x1800
|
|
RTSM-100AJ
|
100
|
75
|
0.4-0.6
|
1600
|
2300x900x2000
|
|
RTSM-300AJ
|
300
|
135
|
0.4-0.6
|
4500
|
3000x1100x2500
|
Product Show
Detailed Images
Manufacturing details, smooth maintenance wheels, black zinc supporter
Assembly type double end mechanical seal, for better and safer operation of sand mill
Patent design, centrifugal discharge filter screen, for easy operation and maintenance.
Customer Site
Customer Site-Magnetic Material
Customer Site-Magnetic Material
RTSM-100AJ has adopted assembly type double end mechanical seal, which can undertake higher working pressure to make sure a steady working of the sand mill. There are alarm for low pressure, high pressure, low cooling water, high mechanical seal pressure, low mechanical seal coolant level etc. All the protect system of RT-AJ series will keep the machine and production safe.
Disperse Dye Production Site
RTSM-AJ series is the most suitable machine for pigment (organic pigment, pigment dispersion, pigment paste etc) and dyestuff (disperse dye, vat, acide dye etc). Compared with traditional stir mill or vertical sand mill, horizontal sand mill have many advantages in both easy operation, easy maintenance, high working efficiency, good finish product quality and energy saving etc.
Packing & Delivery
Packing Details : The machine will be covered with anti-abrasion film and then packed in plywood cases.
Delivery Details : 35-60 working days after receiption of down payment.
4. lab mill packed in plywood case
5. Industrial sand mill packing
6. Ship by FCL
Pesticide, fertilizer, ink, coating, nano new material, all types of chemical products exist in every part of our life. They’re very very closely related to everyone's life on this planet.
ROOT group, a professional wet grinding supplier/provider of intelligent production solution for fine chemical industry, devoting to R&D, manufacturing, sales and services of fine grinding, mixing, powder transportation, packing and EPC projects. Now ROOT group have formed a special, unique and complete supply chain in the industry of fine chemical and new material. Our marketing center, located in Shanghai Hongqiao Economic Zone, that is the most important window to ROOT’s global customers. Having Asia’s largest wet grinding equipment production base, with 40000 square meter production area, ROOT manufacturing center represents the advanced research and manufacturing ability in China’s fine chemical production equipment industry.
As a member of Root Group, Shanghai Root Mechanical and Electrical Equipment Co., Ltd is focused on the research & development, design and manufacturing of wet grinding machinery. Owning 10 years experience in the wet grinding field, Root is your best choice for laboratory sand mill, industrial sand mill, three roller mill and basket mill, auxiliary machines such as disperser and mixer.With business cooperation with many famous universities, research institutes, experts and experienced engineers, Root has been concentrating on technique of wet grinding machine since 2000.
Now Root wet grinding mills are applied in more than 80 countries such as Europe, America, Asia, Africa and Australia, etc. around the world, being served for factory production of paint, ink, dye, magnetic material, paste, agriculture chemicals, adhesion, cosmetics, ceramic etc. With our own modern Nano Laboratory and manufacturing factory, we have the full capabilities of providing clients with the most suitable business solutions for one-stop wet grinding production sand/bead mills. We have owned a professional project engineer team who are able to provide the most technical installation guide and training for each and every one of our global customers of all time.
Root Nano Lab offers free-of-charge (FOC) experiment services for customers. Now Root Nano Lab has various testing equipment including:
1. Better size micron size particle sizer, PSS nano-size particle sizer
2. microscope
3. viscosity testing equipment
4. PH value testing equipment
5. disperse dye diffusity testing equipment
6. and all the agents, anti-foams etc.
All these equipment can help customer get ideal experiment results for whichever product they have. All the experiment results can be scaled up to industrial production. Root Nano Lab has been equipped with Root lab series sand mills and disperser: RT-FS1.5, RT-0.2CD, RT-0.5AD, RT-0.5BJD, RT-1.0BJ, RT-1.0BDD, which can fully satisfy for all types of experiment requirements of different material, different feeding size, different viscosity and different finish size etc.
Our greatest thanks for all supports and trusts from the new and the old customers, ROOT will consistently make the first-rate quality and reputation as the premise of all our research & development, making our contributions to the fast development of the wet grinding machine industry worldwide.Driven by new policy and green production concept, ROOT group have created green, intelligent, complete, realizing the combination of economic and environmental benefits. "Quality contributes to strength, credibility prolongs life”, ROOT group will always take corporate cultures as our spiritual guide. “Based on technology, win in quality” boosts global fine chemical industry, development with high quality so as to make a better world for mankind.
