Quick Details
-
loading capacity:
-
≤80m³/H
-
Dimension:
-
6750*1820*2060MM
-
minimum turning radius:
-
≤3R
-
Digging width,Depth,Height:
-
4100mm,550mm,2900mm
-
Digging distance:
-
2010mm
-
Unloading height:
-
1700mm
-
Unloading distance:
-
1900mm
-
climbing slope:
-
±25°
-
Total motor power:
-
30KW(double 15KW)
-
traveling speed:
-
2.1 + 0.05KM/H
Quick Details
-
Weight (KG):
-
7100
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
SHAOLI
-
loading capacity:
-
≤80m³/H
-
Dimension:
-
6750*1820*2060MM
-
minimum turning radius:
-
≤3R
-
Digging width,Depth,Height:
-
4100mm,550mm,2900mm
-
Digging distance:
-
2010mm
-
Unloading height:
-
1700mm
-
Unloading distance:
-
1900mm
-
climbing slope:
-
±25°
-
Total motor power:
-
30KW(double 15KW)
-
traveling speed:
-
2.1 + 0.05KM/H

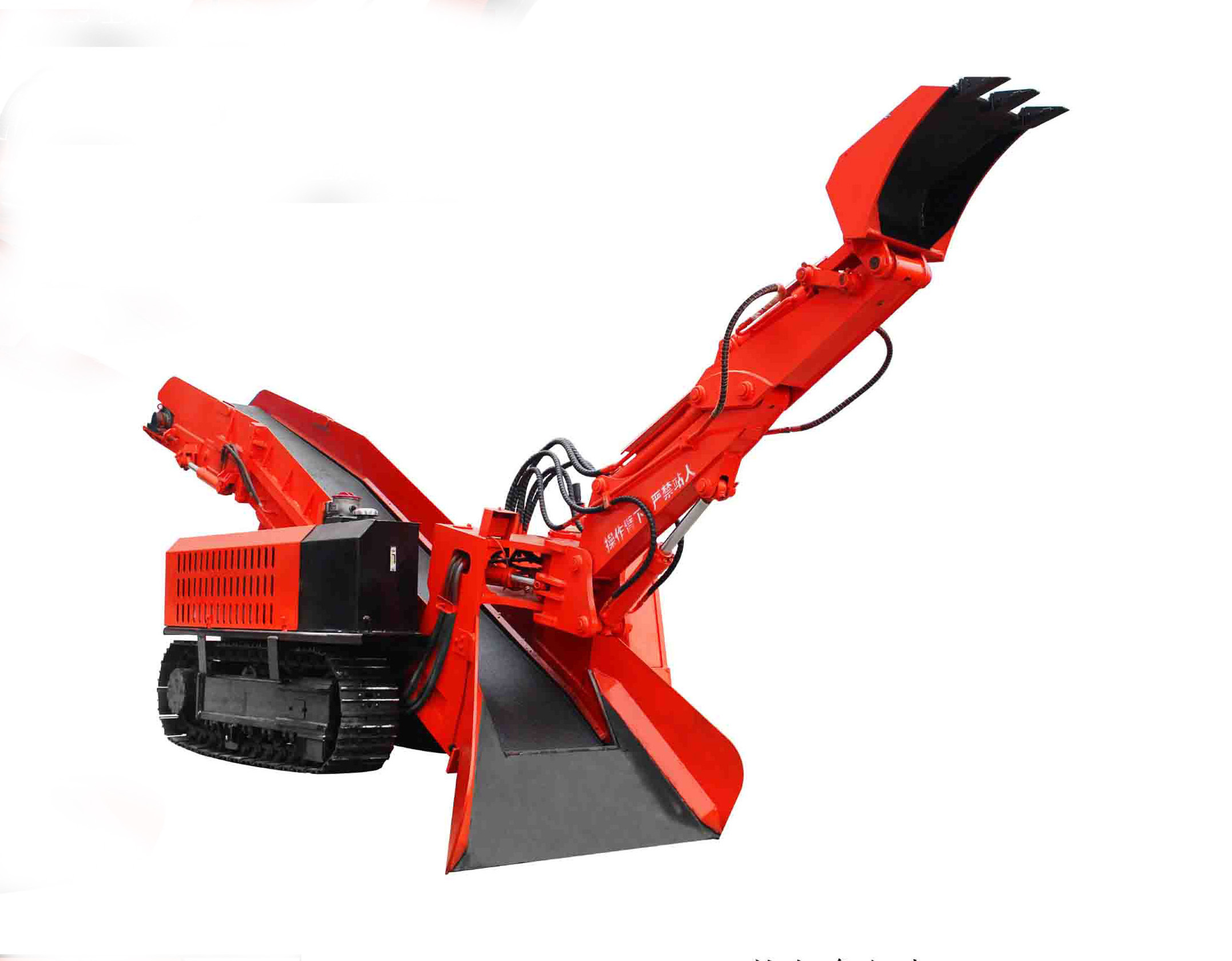

chain and belt conveyor crawler mucking loader machine, ZWY-80T Crawler Scraper coal mine with slag raking machine
| Model | ZWY-1.7M-80T-DQLGF | |
| loading capacity | ≤80m³/H | |
| Dimension | 6750*1820*2060MM | |
| Weight | 7100±200KG | |
| minimum turning radius | ≤3R | |
| Digging width | 4100mm | |
| Digging Depth | 550mm | |
| Digging Height | 2900mm | |
| Digging distance | 2010mm | |
| Unloading height | 1700mm | |
| Unloading distance | 1900mm | |
| climbing slope | ±25° | |
| Total motor power | 30KW(double 15KW) | |
| traveling speed | 2.1 + 0.05KM/H | |
| Applicable tunnel dimension | 2.4*2.4M | |
| Maximum material passing size | 650*550MM | |
