Quick Details
-
Type:
-
Grain Seed Cleaning Plant
-
Use:
-
Seed Cleaning Plant
-
Production Capacity (kg/h):
-
30000 - 50000
-
Weight:
-
4300 KG
-
Application:
-
Grain Seed Cleaning Plant
-
Color:
-
Customized
-
Capacity:
-
3T/H, 5T/H, 10T/H
-
Function:
-
Seed Cleaning Plant
-
Material:
-
Carobon Steel
-
Voltage:
-
Three Phase
-
Features:
-
High Efficiency
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SYNMEC
-
Dimension(L*W*H):
-
decided by order
-
Type:
-
Grain Seed Cleaning Plant
-
Use:
-
Seed Cleaning Plant
-
Production Capacity (kg/h):
-
30000 - 50000
-
Weight:
-
4300 KG
-
Application:
-
Grain Seed Cleaning Plant
-
Color:
-
Customized
-
Capacity:
-
3T/H, 5T/H, 10T/H
-
Function:
-
Seed Cleaning Plant
-
Material:
-
Carobon Steel
-
Voltage:
-
Three Phase
-
Features:
-
High Efficiency
PRODUCT DESCRIPTION
INTRODUCTION
:
1) Function: grain and seed cleaning processing - grain cleaning, de-stoning, sorting, grading, sizing and packing.
2) Capacity: 1~20 t/h (based on wheat).
2) Capacity: 1~20 t/h (based on wheat).

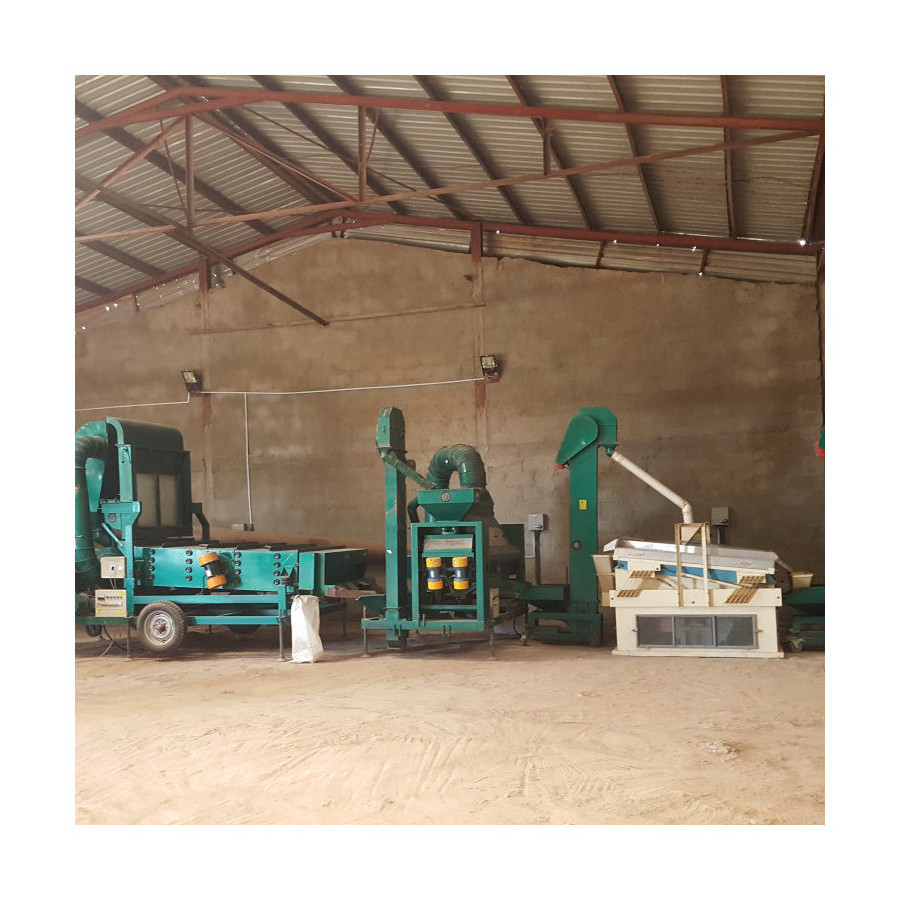

The seeds are fed into the 5XZC-5DH Seed Cleaner & Grader; it will remove the dust, light impurity, oversize and undersize impurities before the seeds flow into the first Slope Elevator. Then the seeds are lifted by the Slope Elevator, falling on the Gravity Separator, it will separate the seeds which in same size but different in specific weight (Remove partially eaten seeds, immature seeds, insect damaged seeds, sick seeds and so on). Then the seeds go on being lifted by the second Slope Elevator, falling on the Destoner table, it will remove heavy foreign impurity like stones, metallic and glass pieces etc on the principle of weight difference.
Feature
1. Customized design according to seed processing requirement and factory building of client, with the most reasonable layout and process.
2. Electric of production line can be centralized control with light display flow chart, for easy and safe operation to different technological processes.
3. High efficient dust collectors ensure the dust concentration in the workshop and emissions meet the requirements.
4. Seeds and grains processed are all full and uniform with high cleanness and good quality, reducing the seeding quantity and getting fast germination, strong and uniform seedlings, and thriving crops after planting.
Power Consumption
1. Customized design according to seed processing requirement and factory building of client, with the most reasonable layout and process.
2. Electric of production line can be centralized control with light display flow chart, for easy and safe operation to different technological processes.
3. High efficient dust collectors ensure the dust concentration in the workshop and emissions meet the requirements.
4. Seeds and grains processed are all full and uniform with high cleanness and good quality, reducing the seeding quantity and getting fast germination, strong and uniform seedlings, and thriving crops after planting.
Power Consumption
|
Capacity
|
|
Total Power
|
|
|
|||
|
|
|
Wheat Cleaning Plant
|
Maize Processing Plant
|
Paddy Cleaning Line
|
|||
|
5 t/h
|
|
~55 kW
|
~53 kW
|
~59 kW
|
|||
|
10 t/h
|
|
~84 kW
|
~79 kW
|
~81 kW
|
|||
Notes: Above data for general machine configuration, for reference only.
APPLICATION INDUSTRY
RELATED PRODUCTS
Grain and seed cleaning machines:
Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.
Pre-cleaners, fine cleaners, rotary cleaners, seed graders, seed gravity separators, indented cylinder, wheat paddy de-awner, destoner, vibration cleaner, rotary cleaner, air aspirator, cyclone dust collector, seed treater, seed dryers, elevators and conveyors, auto-packing scales.
