Digital Paint Coating Thickness Gauge feeler Tester Car Paint Thickness Meter Metal Thickness Measurement 0~1300um
This Thickness Gauge is built-in both Ferrous Mode & Non-Ferrous Mode; It can be widely used in kinds of metal coating thickness measurement which is your indispensable tool in non-destructive testing; The instrument can automatically recognize the material to be tested and choose the correct measurement mode.
Technical specifications
|
|
Probe F |
Probe N |
|
Principle |
Magnetic Induction |
Eddy Current |
|
Range |
0~1300um 0~51.2mil |
0~1300um 0~51.2mil |
|
Accuracy |
±(3%+2um) ±(3%+0.08mil) |
±(3%+2um) ±(3%+0.08mil) |
|
Resolution |
0.1um/0.01mil |
0.1um/0.01mil |
|
Calibration |
Points: ZERO/50/100/250/500/1000um |
|
|
Units |
um, mil |
|
|
minimum curvature radius convex: 1.5mm |
||
|
minimum curvature radius concave: 25mm |
||
|
minimum measuring area: Diameter 6mm |
||
|
minimum thickness of substrate |
0.5mm(0.02”) |
0.3mm(0.012”) |
|
Power |
One 9V battery |
|
|
Operation Environment |
Temperature:0~40℃(32~104℉) Humidity:20%~90%RH |
|
|
Size |
130mm x 62mm x 32mm (4.88” x 2.44” x 1.26”) |
|
|
Weight |
100g(3.53oz) |
|

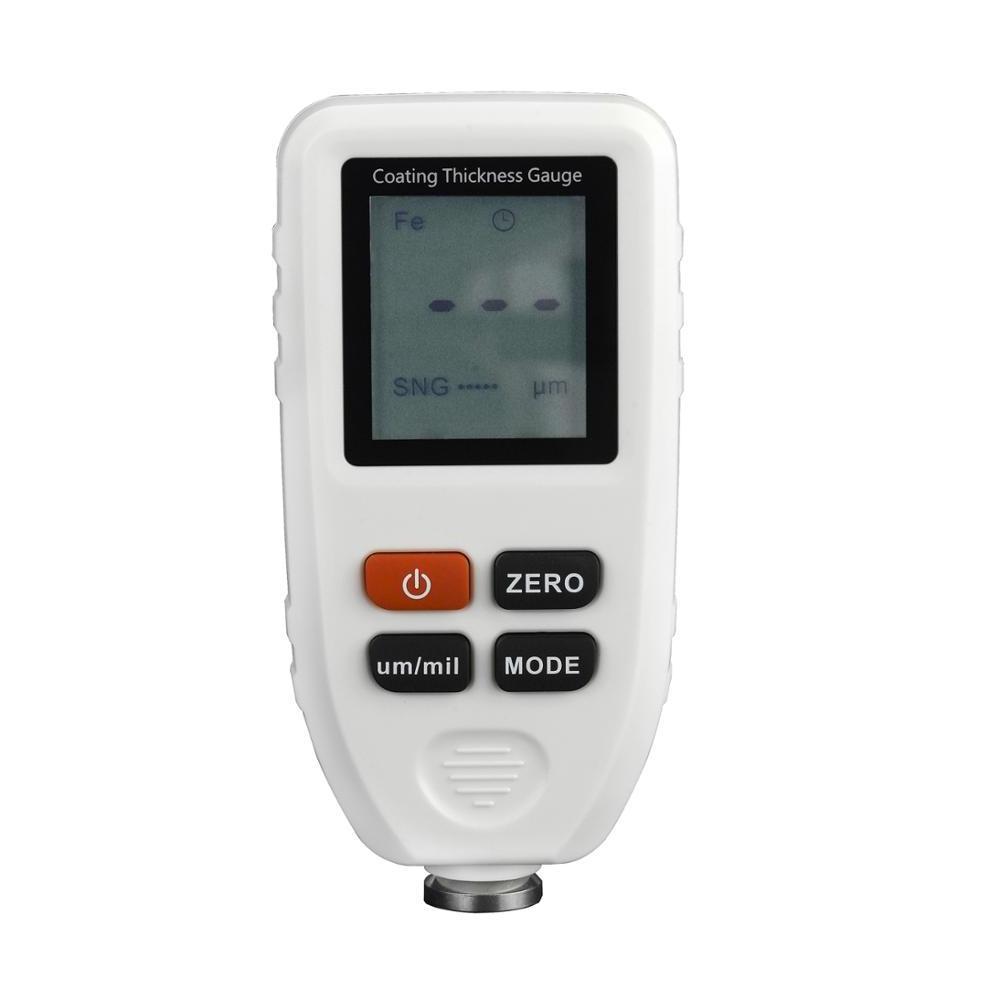

1. Fe--Magnetic substrate indicator: Steel/Iron
2. NF--Non-magnetic substrate indicator: Copper/Aluminum
3. Auto power off flag, auto power-off in 15 minutes with no-operation
4. Low battery indicator
5. Measured Reading Display
6. SNG: Single Measurement Mode
7. CON: Continuous Measurement Mode
8. Unit: um, mil
9. ON/OFF
10. um/mil: Unit Switch Key, System Resetting Key( Press and Hold More than 3s )
11. ZERO: Clearing Display when SNG shows;
Using for calibration when CON shows.
12. MODE: Switch SNG/CON; SNG shows, Single-point Mode; CON shows, Continuous Mode
13. Anti-Skid Slot
14. Probe
15.V-Groove
16. Battery Compartment
Factors of Affecting Accuracy
User needs to know the factors of affecting measurement accuracy before using the gauge. The factors are listed as below:
n Curvature radius convex<1.5mm
n Curvature radius concave <25mm
n Diameter of measuring area <6mm
n Thickness of substrate <0.5mm
n Surface roughness
n Adhesive substances: clean the probe and coating surface
n Strong magnetic field around
n Out of Operation Temperature and Humidity
n Low Battery
Operating Principle:
The gauge adopts the principle of electromagnetic induction and eddy current effect. It has F probe and N probe.
F probe works on the magnetic induction principle and should be used for detecting the non-magnetic coating’s thickness such as chrome/copper/zinc/varnish/rubber on the iron/steel substrate.
N probe works on the eddy current principle and should be used for detecting the insulating coating’s thickness such as paint/anodizing/ceramics on the aluminum/copper/brass substrate.
Application Field:
The Gauge is designed for non-destructively measuring the thickness of coating and painting. It is essential for material surface treatment and widely used in manufacturing industry, metal-processing industry, chemical industry, commodity inspection area, and also able to work steadily in the laboratory, workshop and outdoor.
Photos:
The package list:
u Coating Thickness Gauge
u Substrates
u Five Standard foils
u User Guide
u Protective Case
