Quick Details
-
Brand Name:
-
Senova
-
Voltage:
-
220V/50HZ
-
Power:
-
800W
-
Dimension(L*W*H):
-
460x460x690mm
-
Weight (KG):
-
70
-
Product:
-
3Kg/Batch Top Press Vial Sealing Laboratory Vacuum Freeze Dryer
-
Model:
-
NovaDryer-F102
-
Display:
-
LCD
-
Temperature range:
-
-50C
-
Sample tray:
-
180mm*3 PCS
-
Freeze-dry Acreage:
-
0.07 m2
-
Water-Capture Capability:
-
3Kg/24h
-
Vacuum Degree:
-
10Pa
-
Dimensions(LxWxH,mm):
-
460x460x690mm
-
Certificate:
-
CE
Quick Details
-
Type:
-
Vacuum Drying Equipment
-
Drying Capacity (kg):
-
3 kg
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Senova
-
Voltage:
-
220V/50HZ
-
Power:
-
800W
-
Dimension(L*W*H):
-
460x460x690mm
-
Weight (KG):
-
70
-
Product:
-
3Kg/Batch Top Press Vial Sealing Laboratory Vacuum Freeze Dryer
-
Model:
-
NovaDryer-F102
-
Display:
-
LCD
-
Temperature range:
-
-50C
-
Sample tray:
-
180mm*3 PCS
-
Freeze-dry Acreage:
-
0.07 m2
-
Water-Capture Capability:
-
3Kg/24h
-
Vacuum Degree:
-
10Pa
-
Dimensions(LxWxH,mm):
-
460x460x690mm
-
Certificate:
-
CE

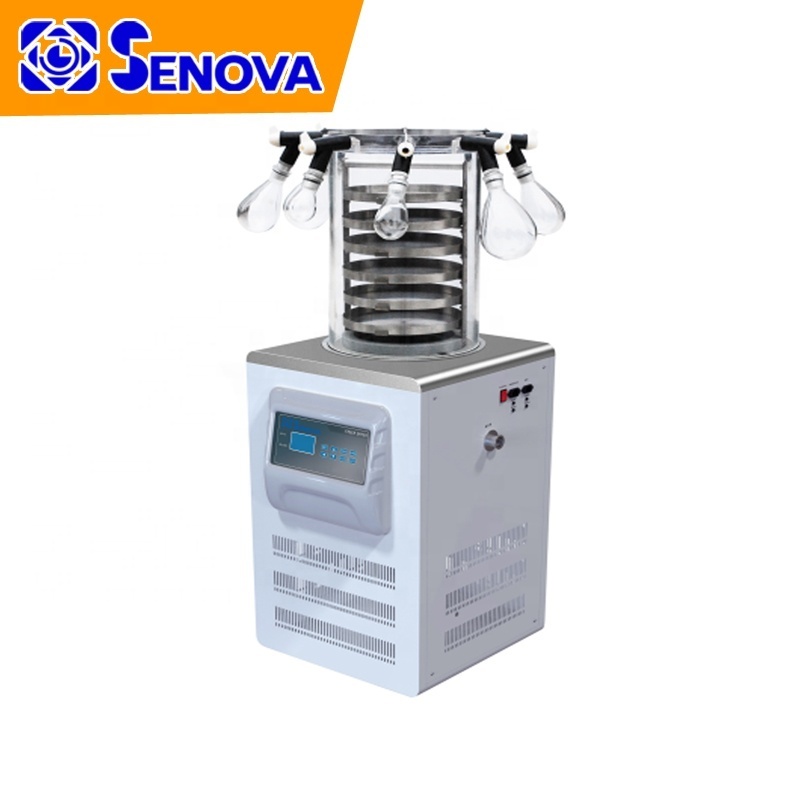

3Kg Batch Minus 50C Degree Laboratory Vacuum Lyophilizer Freeze Dryer
-50C Top-Press Type Laboratory Vacuum Freeze Dryer Lyophilizer
Model: NovaDryer-F102
Applications:
NovaDryer-F10 series freeze dryer is suitable for the freeze-dry test and smack production of lab samples.
Four types:
Ordinary Type(NovaDryer-F101)
Top-press Type(NovaDryer-F102)
Multi-pipeline Ordinary Type (NovaDryer-F103)
Multi-pipeline Top-press Type (NovaDryer-F104).
Main Features
- -50C degree top press vial sealing vacuum freeze fryer with LCD display
- Big openings of the cold trap without coil pipe inside, pre-freezing
- Reliable refrigerant compressor with high capability of water-capture and low noise
- Stainless steel chamber
- Stainless steel sample holder for adjustment of space between shelves
- Transparent clock-cover-type dry room for safety and observation
- Small size, convenient operation
- Valve with nitrogen: Optional
-
Sample Tray:
Stainless steel sample holder is easy to adjust tray space
3 sample-dry trays(Diameter 180mm) with 3 shelves
Sample storage capacity up to 700ml(Sample thickness 10mm)
Or, 155 bottles in diameter of 22mm
Freeze drying time: Approx. 24 hours (Sample thickness 10 mm)
Specifications
| Product | Vacuum Freeze Dryer Laboratory Lyophilizer |
| Model | NovaDryer F102 |
| Type | Top Press Type |
| Temperature | <-50℃ |
| Vacuum | <10Pa |
| Freeze-dry acreage | 0.07 m2 |
| Water-Capture Capability | 3Kg/24h |
| Dimensions(LxWxH,mm) | 460×460×690+65(caster) |
