Quick Details
-
Model Number:
-
WP-20
-
product name:
-
TIG Argon Arc WP-20 water cooled welding torch
-
Standard length:
-
4m/8m
-
Weight:
-
3kg-6kg
-
handle color:
-
black
-
Rating:
-
250A DC,175A AC
-
Tungsten Diameter:
-
0.5mm-3.2mm
-
cooling type:
-
water cooled
-
Delivery Time:
-
5-15 days
-
Certificates:
-
ISO9001, CCC, CE, ROHS, TUV
-
Certification:
-
CE, ISO9001
Quick Details
-
Type:
-
Welding Torch
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
huarui
-
Model Number:
-
WP-20
-
product name:
-
TIG Argon Arc WP-20 water cooled welding torch
-
Standard length:
-
4m/8m
-
Weight:
-
3kg-6kg
-
handle color:
-
black
-
Rating:
-
250A DC,175A AC
-
Tungsten Diameter:
-
0.5mm-3.2mm
-
cooling type:
-
water cooled
-
Delivery Time:
-
5-15 days
-
Certificates:
-
ISO9001, CCC, CE, ROHS, TUV
-
Certification:
-
CE, ISO9001

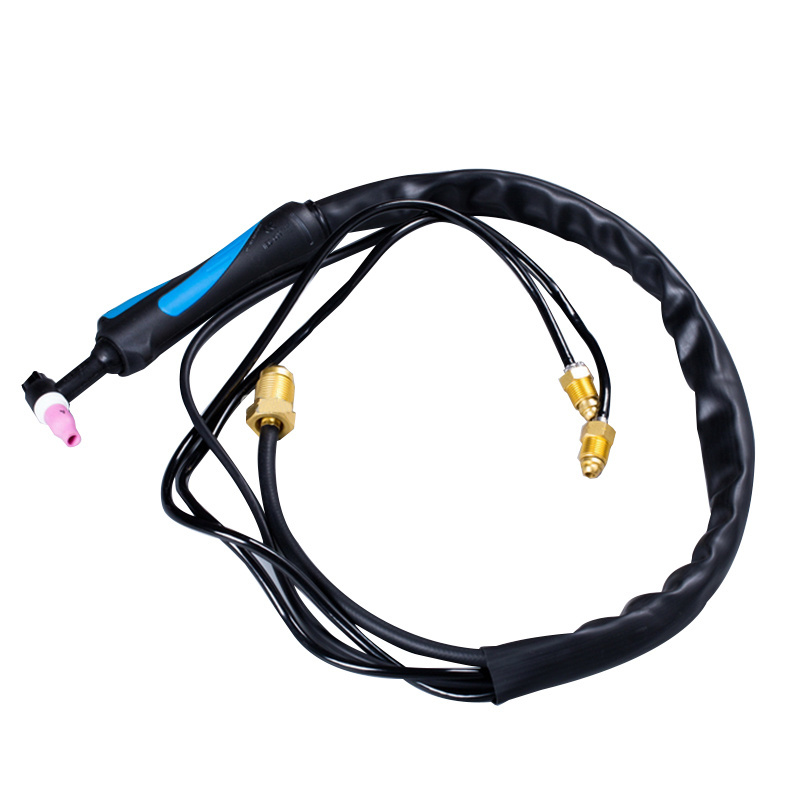

HUARUI 250A CE TIG Argon Arc WP-20 Water Cooled TIG Welding Torch
■ Rating: 250A DC, 175A AC
■ Tungsten Diameter: 0.5-3.2mm
|
Collet
|
|
|
|
13N20
|
Collet Dia.0.5mm
|
|
|
13N21
|
Collet Dia.1.0mm
|
|
|
13N22
|
Collet Dia.1.6mm
|
|
|
13N22M
|
Collet Dia.2.0mm
|
|
|
13N23
|
Collet Dia.2.4mm
|
|
|
13N24
|
Collet Dia.3.2mm
|
|
|
Collet Body
|
|
|
|
13N25
|
Collet Body Dia. 0.5mm
|
|
|
13N26
|
Collet Body Dia. 1.0mm
|
|
|
13N27
|
Collet Body Dia. 1.6mm
|
|
|
13N27M
|
Collet Body Dia. 2.0mm
|
|
|
13N28
|
Collet Body Dia. 2.4mm
|
|
|
13N29
|
Collet Body Dia. 3.2mm
|
|
|
Alumina nozzle/ Ceramic Nozzle
|
|
|
|
13N08
|
Std. Ceramic Cup Dia. 6mm
|
|
|
13N09
|
Std. Ceramic Cup Dia. 8mm
|
|
|
13N10
|
Std. Ceramic Cup Dia. 10mm
|
|
|
13N11
|
Std. Ceramic Cup Dia. 11mm
|
|
|
13N12
|
Std. Ceramic Cup Dia. 13mm
|
|
|
13N13
|
Std. Ceramic Cup Dia. 16mm
|
|
|
Gas Lens Collet Body
|
|
|
|
45V41
|
Gas Lens Body Dia. 0.5mm
|
|
|
45V42
|
Gas Lens Body Dia. 1.0mm
|
|
|
45V43
|
Gas Lens Body Dia. 1.6mm
|
|
|
45V44
|
Gas Lens Body Dia. 2.4mm
|
|
|
45V45
|
Gas Lens Body Dia. 3.2mm
|
|
|
CONSUMABLES PARTS
|
|
|
|
598882
|
Heat Shield Cup Gasket
|
|
|
WP-20
|
Torch body
|
|
|
98W18
|
Back Cap O Ring
|
|
|
41V24
|
Back Cap Long
|
|
|
41V35
|
Back Cap Medium
|
|
|
41V33
|
Back Cap Short
|
|
|
950M
|
Micro Switch Bulbous Button
|
|
|
950F
|
Micro Switch Flat Button
|
|
|
RDZ0591
|
Switch Boot
|
|
|
607664
|
Switch Retaining Boot
|
|
|
53N06
|
Handle
|
|
|
WP20V
|
Torch Body With Valve
|
|
|
WP20FX
|
Flexible Torch Body
|
|
|
WP20P
|
Straight Torch Body
|
|
Changzhou Hu
aru
i W
elding
& Cut
ting Co., LTD
We are located in Xiazhuang, Xueyan Industrial Park, Changzhou city with convenient transportation access, cover an area of 42,000 square meters and there are 200staffs. Since the establishment in 1985, HUARUI has kept focusing on heavy industry to make welding & cutting solutions and has become one of the leading manufacturers in welding & cutting by modern manufacturing equipment,
special technology, and strict testing systems. The products have gained ISO9001, CE certifications. Our company is specialized in MIG/TIG/Plasma welding torches and spare parts.
The annual output of welding torches exceeds 295,000 pieces.
The output of contact tips exceeds 18 million pieces.
The products are mainly exported to Europe, America, Africa and Southeast Asia and etc. Widely
used in ship-building, railway, aviation and other related welding industry. Our torches can fit different kinds of foreign equipment.
We have cooperated with many famous companies and gained a good reputation from customers on the basis of good qualityand service.
We welcome the customers all over the world to visit our company for business.
Q1: Can I get a samples to check the quality?
A:Sure,we can supply samples. For regular goods, the sample cost is different from the amount you want. For our new products, there's a MOQ of the samples.
Q2: Can I put my logo on the boxes/cartons?
A: Yes, this can be made according to your requirements, but you should send us the trademark authorization letter.
Q3: How can you guarantee your products quality ?
A: Huarui’s each torch must pass the following tests before packing: Insulation resistance test, High voltage test, Air/Water flow test, Air/Water seal test.
If there are defective items, we usually credit to our customer or replace in the next shipment.
Q4: What's the order procedure?
A: Firstly, we discuss the details together by e-mail or TM. Then we issue you a PI for your confirmation or Trade Assurance Order Payment Link. You will be requested to do the pre-paid full payment before we go into the production. After we get the payment, we start to process the order. It usually takes 5-15days if we don't have the items in stock.
