Quick Details
-
Brand Name:
-
Riken Keiki
-
Model Number:
-
RX-8000
Quick Details
-
Type:
-
Gas Analyzers
-
Warranty:
-
1 year
-
Place of Origin:
-
Japan
-
Brand Name:
-
Riken Keiki
-
Model Number:
-
RX-8000
Specification

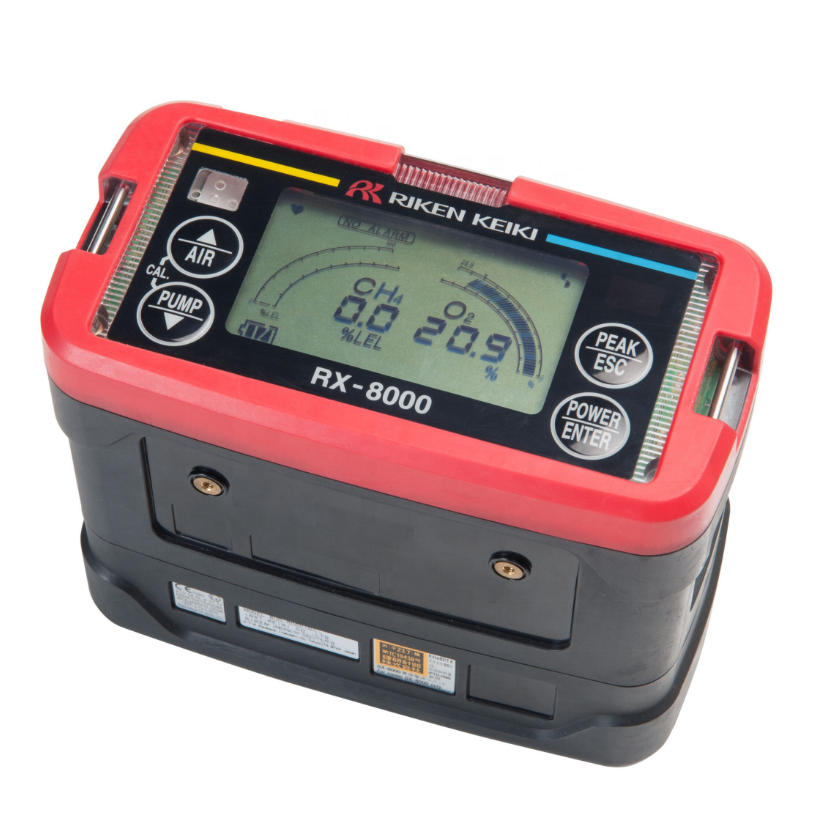

The RX-8000 sets the new industry standard for rugged, reliable portable gas detection. It’s tough, water proof design utilized
features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers
and property in all kinds of harsh gas detection applications.
features based on years of gas detection design experience, to assure that the instrument will operate properly to protect workers
and property in all kinds of harsh gas detection applications.
|
item
|
value
|
|
|
||
|
Warranty
|
1 year
|
|
|
||
|
Target Gas
|
Combustibles (i-CH410 or CH4 calibration)
|
|
Oxygen
|
||
|
Detection Principle
|
Non-Dispersive Infrared (IR)
|
|
Galvanic Cell
|
||
|
Detection Range (Increments)
|
0-100vol% (0.5vol%)
|
0-100%LEL (0.5%LEL)
|
0-40.0% (0.1%)
|
||
|
Accuracy
|
±5vol%
|
±5vol%
|
Range 0-25%: ±0.7
Range 26-40%: ±3.0 |
||
|
Response Time
|
T90 within 30 seconds
|
|
T90 within 20 seconds
|
||
|
Sampling Method
|
Sample Draw: Minimum 0.75L/min
|
|
|
||
|
Gas Alarm
|
N/A
|
1st: 10%LEL
2nd: 50%LEL |
1st: 19.5%
2nd: 23.5% |
||
|
Display of Alarm
|
LED: LED’s flash
Buzzer: 95dB Visual Indication: Indication value flashes. Alarm message displays and flashes |
|
|
||
|
Display
|
Digital display and bar graph
|
|
|
||
|
Power Source
|
Lithium-ion battery (3 hours for a full charge): Standard
AA Alkaline battery (qty 3): Option |
|
|
||
|
Continuous Operation
|
Lithium-ion battery: 15 hours
AA Alkaline battery: 10 hours |
|
|
||
|
Operating Temp & Humidity
|
-20 ~ +50C (-4 ~ +122F) below 95%Rh (non-condensing)
|
|
|
||
|
Dimensions & Weight
|
6.1″W x 3.1″H x 5″ D, 2.4lbs
|
|
|
||
|
Ingress Proof Rating
|
IP67
|
|
|
||
|
Explosion Proof
|
Ex ia IIC T4 Ga
|
|
|
||
|
Approvals
|
IECEx, ATEX, MED, Complying to IEC60079-29-1, EN50104
|
|
|
||
|
Additional Features
|
Indication to show energizing (pilot indicator and pump driving indicator), activating confirmation IrDA communication, data
logger, password protection |
|
|
||
Product Description
Packing & Delivery
carton
