HangZhou Tyno Electronic Tech Co,Ltd
- Professional Manufacturer and Exporter
- Main products: Solar Auto-darkening Welding Helmets
- Quality: CE/EN 175 & EN 379, ANSI Z87.1, CSA Z94.3, AS/NZS 1337.1 standards.
- Product Details
- {{item.text}}
Quick Details
-
Switch Time:
-
1/25000 S
-
Warranty:
-
2 yeqrs
-
Place of Origin:
-
China
-
Brand Name:
-
TynoWeld
-
Model Number:
-
TN08
-
Power Supply:
-
Solar power
-
Auto-Darkening & Solar Powered:
-
Yes
-
Optical class:
-
1/1/1/2
-
Clear state level:
-
DIN4
-
Darkened state level:
-
Variable Shade DIN9-13, External Knob setting
-
Auto recovery time:
-
Adjustable from 0,2S (fast) to 1.0S (slow)
-
Filter size:
-
110*90*9mm
-
UV/IR Protection:
-
Up to DIN16 at all time
-
Grinding:
-
Yes
-
Operating Temperature:
-
-10°C to +55°C
Quick Details
-
Dimension (L x W x H):
-
Customized
-
Cartridge Size:
-
335*235*230mm
-
Sensitivity:
-
Low to High, Adjustable
-
Switch Time:
-
1/25000 S
-
Warranty:
-
2 yeqrs
-
Place of Origin:
-
China
-
Brand Name:
-
TynoWeld
-
Model Number:
-
TN08
-
Power Supply:
-
Solar power
-
Auto-Darkening & Solar Powered:
-
Yes
-
Optical class:
-
1/1/1/2
-
Clear state level:
-
DIN4
-
Darkened state level:
-
Variable Shade DIN9-13, External Knob setting
-
Auto recovery time:
-
Adjustable from 0,2S (fast) to 1.0S (slow)
-
Filter size:
-
110*90*9mm
-
UV/IR Protection:
-
Up to DIN16 at all time
-
Grinding:
-
Yes
-
Operating Temperature:
-
-10°C to +55°C
Product Desciption

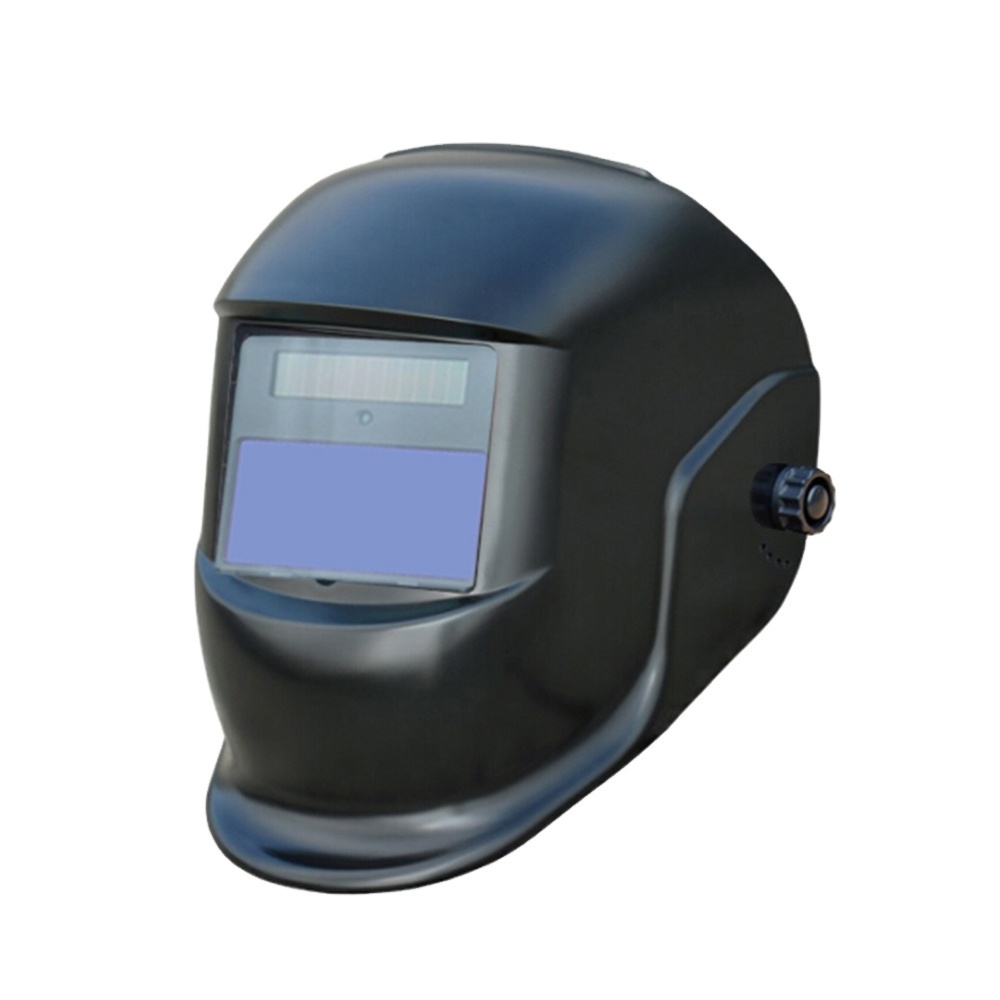

Auto-Darkening welding helmet are designed to protect the eyes and face from sparks, spatter, and harmful radiation under normal welding conditions. Auto-darkening Filter automatically changes from a clear state to a dark state when an arc is struck, and it returns to the clear state when welding stops. With the clear viewing area,and the helmet is used as a protective shield by not darkening while grinding.
|
Product Name
|
CE EN379 welding helmet
|
|
Helmet model
|
TN08
|
|
ADF model
|
ADF5000SG
|
|
Optical class
|
1/1/1/2
|
|
View area
|
92* 42mm 3.62*1.65 in
|
|
Light state
|
DIN4
|
|
Dark state
|
Available shades, DIN9-13, External setting, Provides continuous UV/IR protedtion
|
|
Switching time
|
1/25000S from Light to Dark
|
|
Delay time
|
Adjustable from 0,2 S (fast) to 1.0 S (slow)
|
|
Sensitivity control
|
Low to high can Stepless adjusted
|
|
Power supply
|
Solar Cells & Replaceable Lithium battery (CR2032)
|
|
Welding/Grinding mode
|
Can be selected
|
|
Sensors
|
2
|
|
Power on/off control
|
Fully automatic
|
|
Material / Weight
|
PA / 450±5g
|
|
Operating/Store Temp
|
-10°C to +55°C / -20°C ~+ 70°C
|
|
Approval
|
CE EN175 & EN379, ANSI Z87.1, CSA Z94.3
|
|
Application range
|
Stick Welding (SMAW); TIG DC∾ TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Grinding.
|
The Feature:
1. Be suitable to all kinds of welding mode.
2. Welding & Grinding function can be selected.
3.
Switching time: 1/25000S from Light to darken.
4. With non-grade adjustable shade number from DIN9 to DIN13.
5. Eyes and face a full protection against UV and IR radiation, even in the clear state.
6. Auto recovery delay time fast or slow can be selective.
7. Sensitivity adjustment: you can adjust sensitivity (low to high) of the darkening filter according to your working conditions. At the MIG / MAG(co2) / TIG welding or other small electric ARC welding can choose high sensitivity.
Prodcut Show
Ceritification
Best Auto Darkening Welder Mask
Approval: CE EN175 EN379 1/1/1/2, COLTS AISI Z87.1, CSA Z94.3
Our Service
1, upon receiving the enquiry, our Sales Department will be the first time to email you back and give you the information you need.
2, during discussing details part, our sales department will serve you on line anytime. You just need to state your requirement precisely, and we’ll do our best to meet your requirements. The details could be your packaging, shipping, term of payment, OEM or ODM requirements.
3, during the production, our sales will work for you to monitor the progress of production and ensure on-time delivery.
4, our quality inspectors will check all products for you until each of the products comply with the requirements of production, until the products are properly packaged.
Our Company
Why choose HangZhou Tyno Electronic Tech Co,Ltd
1. Professional Manufacturer from 1992
As the professional manufacturer, has a perfect production process. After a long period of experience of exporting business, our reliable and professional team is getting stronger and bigger every year, and we are still keep the quality as well in production always.
2. Main products
All kinds of Solar Auto-darkening Welding Mask, Solar Auto-darkening Welding Goggles.
3. Quality
We believe quality is the base of long time cooperation. We have strictly quality control system to make sure our goods will be same as your confirmed sample.
Products certifications: CE/EN 175 & EN 379, ANSI Z87.1, CSA Z94.3
Packing & Delivery
Packing Details :
Welding mask, Color box, 6pcs/carton or 15pcs/carton
Delivery Details : 5-35 days after received order's deposit
Exhibition & Show
Welding & Cutting Fair
Beijing Essen Welding & Cutting Fair, In June each year, location in Beijing or Shanghai (alternate).
This is the biggest International welding & Cutting Fair in China. Our company participate in this exhibition every year.
Welcome to visit our booth, If coming to China to visit this Welding & Cutting Show.
International welding & Cutting Fari
International welding & Cutting Fair, we attend International welding & Cutting Fair where hold an exhibition every year in different country.
Germany, Russia, Brazil, India etc.
Welcome to visit our booth, If we attending the show in your country.
International hardware show
International hardware show, we attend International hardware show where hold an exhibition every year in different country.
America, Russia, Brazil, India etc.
Welcome to visit our booth, If we attending the show in your conutry.
FAQ
1.Are your company a trading one or a factory?
We are Factory + trade
2.How long have your company run on welding protective products?
From 1992, More than 25 years manufacturing and exporting experience.
3,Which payment terms are you accept?
T/T, Trade Assurance, L/C or PayPal.
4.How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
5. Is your company accepting customization?
we accept OEM/ODM. You can choose print your logo and customize your packing.
6.How about your company's certification?
CE EN175 EN379, ANSI Z87.1, AS/NZS 1337.1, CSA Z94.3
7.What is your terms of payment ?
Payment<=5,000.00 USD, 100% in advance. Payment>=5,000.00 USD, 30% T/T in advance ,balance before shippment.
