Quick Details
-
Product Name:
-
Fire Fighting Robot
-
Application:
-
Fire Fighting Emergency Rescue
-
Usage:
-
Fire Fighting
-
Color:
-
Red
-
Functions:
-
Fire fighting
-
Size:
-
1100x780x890mm
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JJZXXF
-
Model Number:
-
RXR-MC40D
-
Product Name:
-
Fire Fighting Robot
-
Application:
-
Fire Fighting Emergency Rescue
-
Usage:
-
Fire Fighting
-
Color:
-
Red
-
Functions:
-
Fire fighting
-
Size:
-
1100x780x890mm

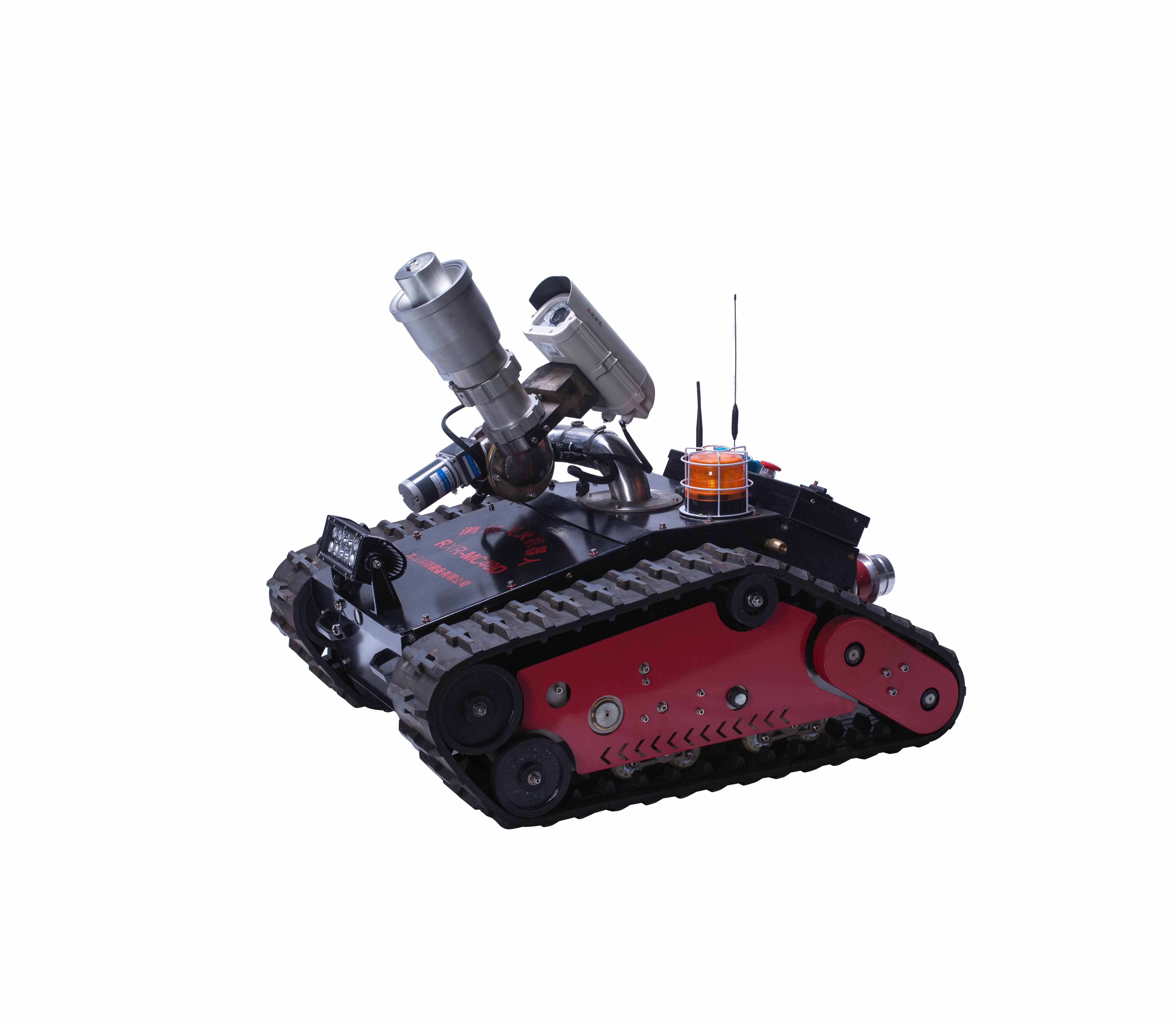

The fire fighting robot is a new type of fire fighting equipment that can realize remote control fire fighting. It is applicable to high temperature, strong thermal radiation, easy collapse, fire fighting vehicles and personnel can not get close to the place for fire fighting, cooling and chemical pollution, etc., effectively avoiding casualties and other phenomena, and can provide ideal safety guarantee for front-line fire fighters.
The fire fighting robot adopts a rubber crawler walking mechanism. The front and rear positions of the body are equipped with infrared wide-angle video cameras, which can control the operation of the fire fighting robot according to the video transmitted by the camera to the control platform.
|
Body size (chassis)
|
Length
|
1100mm
|
|
|
|
width
|
780mm
|
|
|
|
height
|
890mm
|
|
|
Maximum total mass
|
|
≤170kg
|
|
|
Effective Range of Remote Controller
|
|
≤150m
|
|
|
Walking speed (forward/backward)
|
|
0.65m/s
|
|
|
radius of turning circle
|
|
Simple Spin
|
|
|
Maximum height above the vertical obstacle
|
|
150mm
|
|
|
Grade ability
|
|
≤30°
|
|
|
Fording depth
|
|
<100mm
|
|
|
Continues Operating Hours
|
|
≤2h
|
|
|
Fire water cannon performance
|
level angle
|
±90°
|
|
|
|
Back leaning Angle
|
30°~70°
|
|
|
|
spray pattern
|
Direct current/spray
|
|
|
|
rate of flow
|
40 L/s
|
|
|
|
working pressure
|
0.8MPa
|
|
|
|
range (of fire)
|
65m
|
|
|
Water cannon interface
|
|
KYKA80Z
|
|
|
Drag force ability
|
|
3 full water fire hose;
>8 empty fire hose |
|
|
ambient temperature of using
|
|
-30°~+120°
|
|
|
combustible gas detection
|
|
Low-risk when the concentration is greater than 25%, and high-risk when higher than 50%
|
|
|
Video image wireless transmission mode
|
|
4G
|
|
|
battery voltage
|
|
48V
|
|
