- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
3800kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Place of Origin:
-
Henan, China
-
Engine Brand:
-
Quanchai
-
Cylinders:
-
2
-
Dimensions (L x W x H) (mm):
-
5180*1990*2100mm
-
Cargo Tank Dimension:
-
3300*1800*600mm
-
Tire Number:
-
6+1
-
Loading weight:
-
5 tons
-
Engine:
-
Q23-115C60 115 HP
-
Gearbox:
-
5-speed with auxiliary gearbox
-
Front axle:
-
3 tons
-
rear axle:
-
6 tons
-
wheelbase:
-
2800mm
-
Tire:
-
7.00R16
-
wheel track:
-
1560/1510mm
-
fuel tank:
-
80L
-
Votage:
-
12V
Quick Details
-
Condition:
-
New
-
Horsepower:
-
115
-
Emission Standard:
-
EURO 5
-
Market Segement:
-
Urban construction muck transportation
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
3800kg
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Place of Origin:
-
Henan, China
-
Engine Brand:
-
Quanchai
-
Cylinders:
-
2
-
Dimensions (L x W x H) (mm):
-
5180*1990*2100mm
-
Cargo Tank Dimension:
-
3300*1800*600mm
-
Tire Number:
-
6+1
-
Loading weight:
-
5 tons
-
Engine:
-
Q23-115C60 115 HP
-
Gearbox:
-
5-speed with auxiliary gearbox
-
Front axle:
-
3 tons
-
rear axle:
-
6 tons
-
wheelbase:
-
2800mm
-
Tire:
-
7.00R16
-
wheel track:
-
1560/1510mm
-
fuel tank:
-
80L
-
Votage:
-
12V

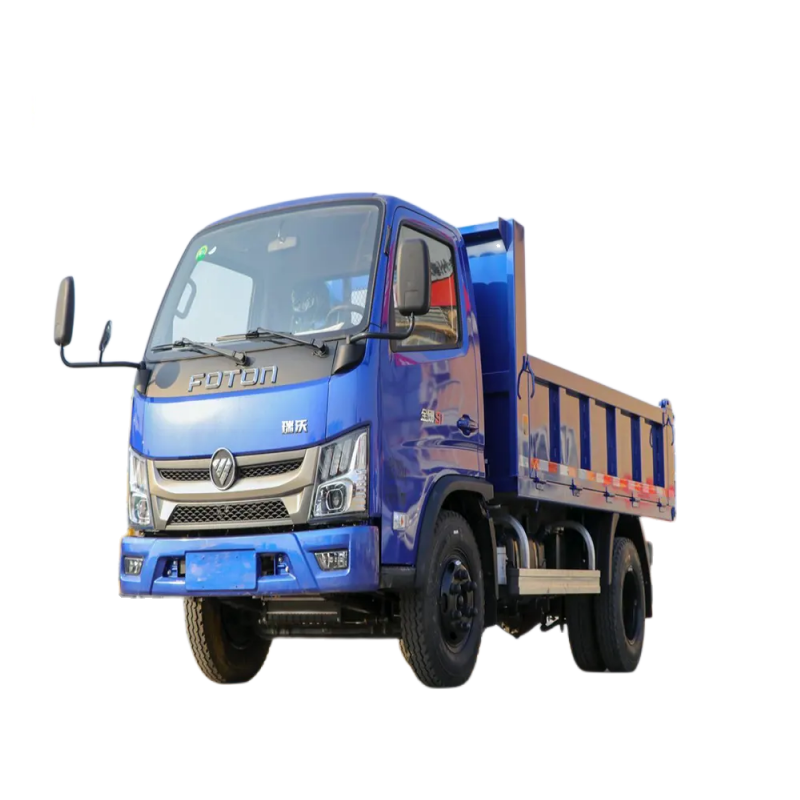

Foton 5-10 tons small dump truck light dumper tipper trucks hot sale
Product show
Foton 4x2 dump truck, 6 wheels, 115 horse power, left /right hand drive, max load capacity up to 5 tons. Small dump trucks can travel freely on narrow roads and turn around, making them more flexible to use
.
Dump trucks are the most common type of trucks currently on the market. The main function of the dump truck is to transport and dump construction waste, earthwork and other materials or goods. A small dump truck is a dump truck with a smaller size and lighter load capacity. Compared with other large dump trucks, small dump trucks are more suitable for narrow streets, small alleys, and small spaces such as construction sites.
Specification
|
Item
|
|
Specification
|
|
||
|
Drive type
|
|
4x2 Left hand drive
|
|
||
|
Cab
|
|
Forland King Kong 728 single row cab
|
|
||
|
Overall size
|
|
5180*1990*2100 mm
|
|
||
|
cargo tank size
|
|
3300*1800*600 mm
|
|
||
|
curb weight
|
|
3800 kg
|
|
||
|
load weight
|
|
5000 kg
|
|
||
|
Front axle
|
|
3 tons
|
|
||
|
Rear axle
|
|
6 tons
|
|
||
|
Gearbox
|
|
5-speed with auxiliary gearbox
|
|
||
|
Truck rack
|
|
Special beam for dump truck
|
|
||
|
Tire
|
|
7.00R16 radial tires 6+1 pieces
|
|
||
|
Power take-off interface
|
|
Have
|
|
||
|
PTO
|
|
Have
|
|
||
|
Front/rear overhang (mm)
|
|
Front: 1150, Rear: 1230
|
|
||
|
Departure angle
|
|
Front: 19, Rear: 15
|
|
||
|
Suspension
|
|
Leaf spring 3/8+5
|
|
||
|
Leaf spring
|
|
front 3, rear 8+5
|
|
||
|
Number of axles
|
|
2
|
|
||
|
Wheelbase (mm)
|
|
2800
|
|
||
|
Number of tires
|
|
6+1
|
|
||
|
Wheel track (mm)
|
|
1560/1510
|
|
||
|
Drive type
|
|
4*2
|
|
||
|
Engine
|
|
Q23-115C60 115 HP Diesel engines
|
|
||
|
Emission Standards
|
|
Euro 5
|
|
||
|
Suspension
|
|
Leaf spring
|
|
||
|
Driving style
|
|
Steering wheel type, LHD
|
|
||
|
Brake
|
|
Drum type
|
|
||
|
Braking System
|
|
Air cut-off brake
|
|
||
|
Spare tire rack
|
|
Have
|
|
||
|
Light
|
|
Have
|
|
||
|
Voltage
|
|
12V
|
|
||
|
Fuel tank
|
|
80L
|
|
||
|
Rear door locking device
|
|
Automatic rear door locking
|
|
||
|
Hydraulic cylinder
|
|
Middle overhead cylinder, 2 pieces
|
|
||
|
Cabinet material
|
|
Side Q235B/2.0mm, bottom Q235B/3.0mm
|
|
||
|
Color
|
|
According to user requirements
|
|
||
Workshop pictures
packaging shipping
Company profile & Certificates
Henan Lishixin Logistics Equipment Co.,
Ltd
is a professional
dump trucks
manufacturer
with 31 years of experience, we have a strict quality control system, and an experienced design system to meet customer customization needs and provide lifelong accessories and technology support.
