Quick Details
-
Specification:
-
25V220
-
Packaging Type:
-
carton packing
-
Application:
-
high density surface mounting
-
Package / Case:
-
carrier tape
-
Series:
-
vt
-
Size / Dimension:
-
4*5.4 5*5.4 6.3*5.4 6.3*7.7 8*10.5 10*10.5
-
Description:
-

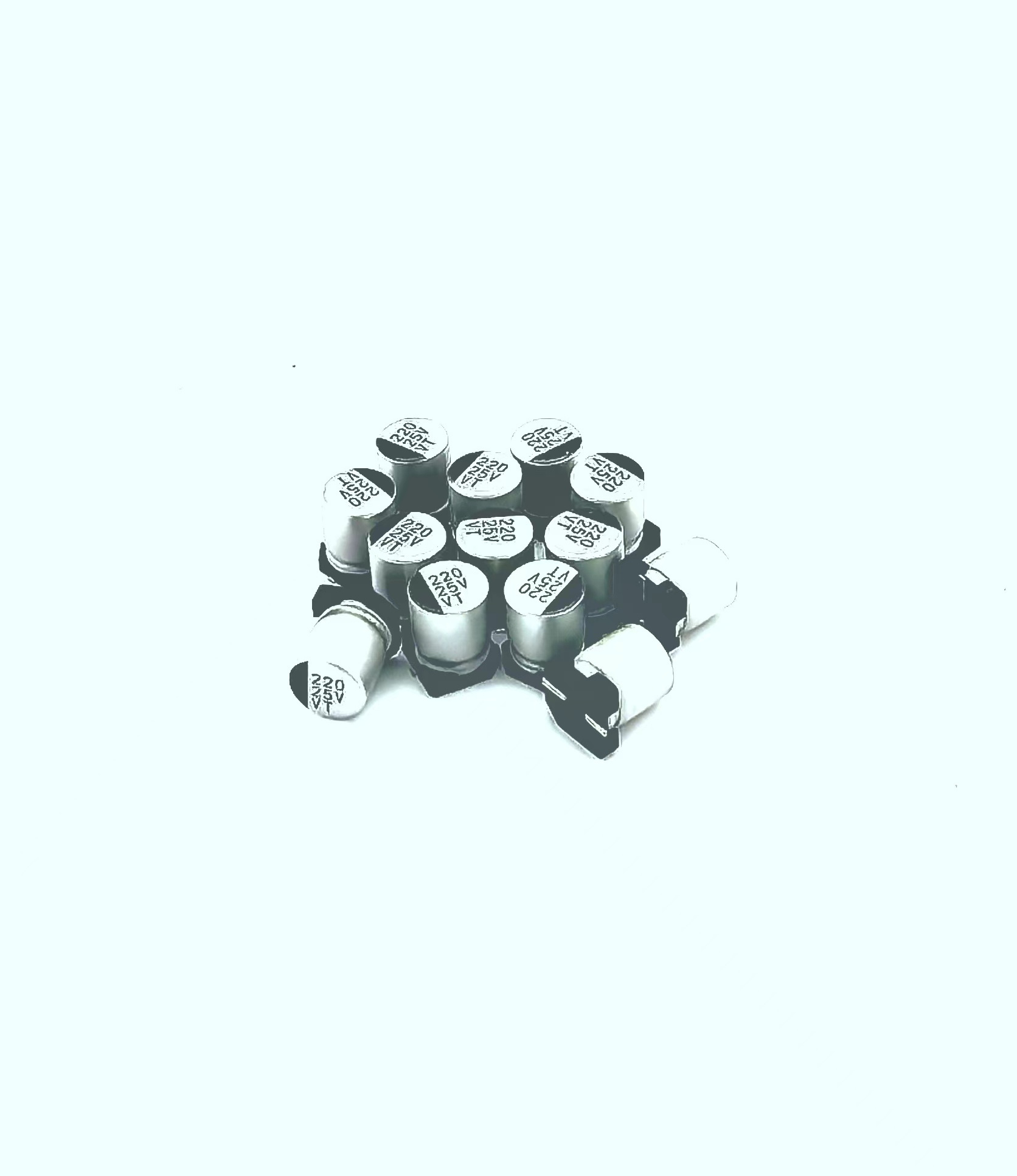

VT chip Type Aluminum Electrolytic Capacitors
-
Capacitance:
-
25V220uf
-
Type:
-
SMD Aluminum Electrolytic Capacitor
-
Tolerance:
-
20%
-
MOQ:
-
10000
-
Life time Temp:
-
1000 Hrs 105
-
Rated voltage:
-
6.3V-50V
-
Lead Time:
-
3-5 Days
-
Material:
-
Aluminum Foil
-
Quality:
-
wide temperature
-
Delivery time:
-
Fast Shipment
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chang
-
Model Number:
-
VT
-
Specification:
-
25V220
-
Packaging Type:
-
carton packing
-
Application:
-
high density surface mounting
-
Package / Case:
-
carrier tape
-
Series:
-
vt
-
Size / Dimension:
-
4*5.4 5*5.4 6.3*5.4 6.3*7.7 8*10.5 10*10.5
-
Description:
-
VT chip Type Aluminum Electrolytic Capacitors
-
Capacitance:
-
25V220uf
-
Type:
-
SMD Aluminum Electrolytic Capacitor
-
Tolerance:
-
20%
-
MOQ:
-
10000
-
Life time Temp:
-
1000 Hrs 105
-
Rated voltage:
-
6.3V-50V
-
Lead Time:
-
3-5 Days
-
Material:
-
Aluminum Foil
-
Quality:
-
wide temperature
-
Delivery time:
-
Fast Shipment
NanJia Huawei Electronics Co., Ltd.
NanJia Huawei Electronics Co., Ltd. was founded in 1987，It is a high-tech enterprise specialized in design, research, manufacturing and sales of a full range of aluminum electrolytic capacitor products. Huawei Electronics has entered the top 100 enterprise electronic components in China for consecutive years since 2003.
The company has honored titles, such as "Changzhou Advanced Unit for Quality Management", "District Leader Quality Award" and "National Leader in Capacitor Industry Quality". Trademarks and products were awarded "Jiangsu Famous Brand" and "Jiangsu Famous Brand Product"
Huawei Electronics has established a global sales service network, with multiple domestic offices and foreign sales branches. Our products are exported to Japan, Korea, Indonesia, India, Turkey, the United States, Russia, Germany, Brazil and other countries. We have established a good reputation and brand among customers, and become a strategic partner and excellent supplier for many customers.
Providing with a full range of aluminum electrolytic capacitors
Products meet RoHS, REACH, HF
NanJia Huawei Electronics，as the only domestic supplier of a full range of aluminum electrolytic capacitors, produces a total of more than 100 series including six types: Lead, SMD, Snap-in, Screw, Solid, and Hybrid. Huawei Electronics promises to provide services and products that can help create a safe and healthy environment and minimize the impact of its own operations on the environment with the standards of great capacitor companies.
Capacity: 3 billion PCs/yearProduct type: lead type, solder pin type, solder lug type,Bolt-type solid aluminum electrolytic capacitor
Capacity: 1.2 billion pieces/yearProduct Type: Chip Aluminum Electrolytic Capacitor
Capacity: 1.8 billion PCs/yearProduct Type: Lead Type Aluminum Electrolytic Capacitor
Quality guarantee.
laboratory
Product information
VT
Case diameter: Ф 4mm – Ф 12.5mm.
Reflow soldering is available.
Available for high density surface mounting.
Adapted to the RoHS directive.
Aluminum electrolytic capacitor- SMD type
Features
Reflow soldering is available.
Available for high density surface mounting.
Adapted to the RoHS directive.
Operating over wide temperature range.
（-40 ~ +105℃）
Adapted to the RoHS directive.
Specifications
|
Items
|
Performance Characteristics
|
|
|
|
|
|
|
|
|
||||||||
|
Operating Temperature Range
|
-55~+105℃
|
|
|
|
|
|
|
|
|
||||||||
|
Rated Voltage Range
|
6.3~100V
|
|
|
|
|
|
|
|
|
||||||||
|
Nominal Capacitance Range
|
4.7~3300μF
|
|
|
|
|
|
|
|
|
||||||||
|
Capacitance Tolerance
|
±20%（20℃，120Hz）
|
|
|
|
|
|
|
|
|
||||||||
|
Leakage Current
|
I≤0.01CRVR or 3(μA) Whichever is greater(at 20℃, after 2 minutes)
CR: Nominal Capacitance (μF) UR: Rated voltages (V)
|
|
|
|
|
|
|
|
|
||||||||
|
Dissipation Factor (Max)20℃, 120Hz（tgδ）
|
UR (V)
|
10
|
16
|
25
|
35
|
50
|
63
|
80
|
100
|
||||||||
|
|
tgδ
|
0.24
|
0.20
|
0.16
|
0.14
|
0.12
|
0.12
|
0.1
|
0.10
|
||||||||
|
Load Life
|
After 1000 hours’ application of rated voltage at 105℃, the capacitor shall meet the following requirement:
|
|
|
|
|
|
|
|
|
||||||||
|
|
Capacitance Change
|
|
|
Within ±20% of the initial value
|
|
|
|
|
|
||||||||
|
|
Dissipation Factor
|
|
|
Not more than 200% of the initial specified value
|
|
|
|
|
|
||||||||
|
|
Leakage Current
|
|
|
Not more than the initial specified value
|
|
|
|
|
|
||||||||
|
Shelf Life
|
After storage for 1000 hours at +105℃, the capacitors shall meet the requirement of load life above
|
|
|
|
|
|
|
|
|
||||||||
|
Low Temperature Stability
Impedance Ratio (120Hz)
|
UR (V)
|
10
|
16
|
25
|
35
|
50
|
63
|
80
|
100
|
||||||||
|
|
Z(-25℃)/Z(+20℃)
|
3
|
2
|
2
|
2
|
2
|
2
|
2
|
2
|
||||||||
|
|
Z(-55℃)/Z(+20℃)
|
6
|
4
|
4
|
3
|
3
|
3
|
3
|
3
|
||||||||
|
Resistance to Soldering Heat
|
The capacitors shall be kept on the hot plate maintained at 250℃ for 30 seconds. After removing from the hot plate andrestored at room temperature, they meet the following requirement.
|
|
|
|
|
|
|
|
|
||||||||
|
|
Capacitance Change
|
|
|
Within ±10% of the initial value
|
|
|
|
|
|
||||||||
|
|
Dissipation Factor
|
|
|
Not more than the initial specified value
|
|
|
|
|
|
||||||||
|
|
Leakage Current
|
|
|
Not more than the initial specified value
|
|
|
|
|
|
||||||||
Case Size Table
Unit: mm
Nominal Capacitance, Rated Voltage, Rated Ripple Current and Case Size Table
Frequency correction factor for ripple current
|
Frequency
|
50Hz
|
120Hz
|
300Hz
|
1KHz
|
≥ 10KHz
|
|
Coefficient
|
0.70
|
1.0
|
1.17
|
1.36
|
1.50
|
