LED type : Ring Type
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA16F-11D/L
-
Material:
-
Aluminum Oxidation
-
Mounting Hole:
-
16mm
-
The Front Shape:
-
Flat Head
-
Operation type:
-
Self-locking Momentory Latching
-
LED Color:
-
Default Blue( Red Blue Yellow Green Orange White Purple available)
-
LED voltage:
-
Default 12V (or 3V / 6V / 12V / 24V / 36V / 110V / 220V)
-
Contact Configuration:
-
1NO 1NC
-
Illuminated type:
-
Ring POWER Type
-
Terminal type:
-
5 pin terminal
Quick Details
-
Protection Level:
-
IP67, IP67
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC/DC
-
Place of Origin:
-
ZHE
-
Brand Name:
-
YUESHUN
-
Model Number:
-
LA16F-11D/L
-
Material:
-
Aluminum Oxidation
-
Mounting Hole:
-
16mm
-
The Front Shape:
-
Flat Head
-
Operation type:
-
Self-locking Momentory Latching
-
LED Color:
-
Default Blue( Red Blue Yellow Green Orange White Purple available)
-
LED voltage:
-
Default 12V (or 3V / 6V / 12V / 24V / 36V / 110V / 220V)
-
Contact Configuration:
-
1NO 1NC
-
Illuminated type:
-
Ring POWER Type
-
Terminal type:
-
5 pin terminal

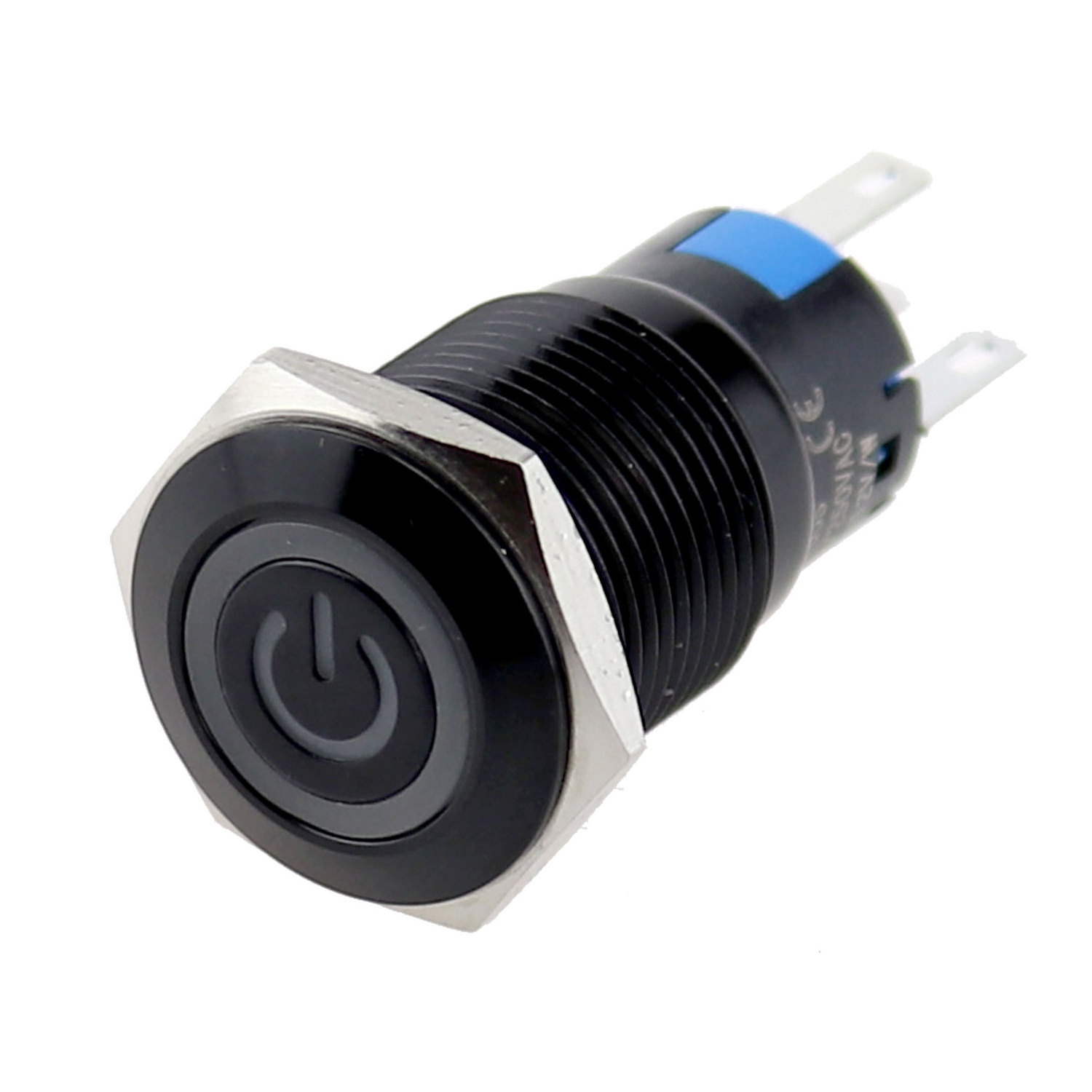

16mm push to start 5a 250v roller shutter garage led on-off power symbol White push button 12v lamp automotive switch
Quick Description
16mm Push button Switch
Mounting Size : 16mm;
Switch Rating : 5A , 250VAC/DC
IP Class : IP67
Function : 1NO 1NC
Material ：
Black aluminium oxide
Operating Type : Momentary / Latching
|
PRODUCT FEATURES
|
|
|
|
Install Diameter
|
16mm
|
|
|
Operation Type
|
Momentary or Latching
|
|
|
Switch Combination
|
1NO + 1NC
|
|
|
Head Shape
|
Flat Round Head
|
|
|
Terminal Type
|
4 PIN TERNINAL
|
|
|
Panel Thickness
|
1-10mm
|
|
|
Operating Distance
|
About 2.5mm
|
|
|
PRODUCT MATERIALS
|
|
|
|
Body Material
|
304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
|
|
|
Button Material
|
304 Stainless Steel / 316 Stainless Steel / aluminum oxidation
|
|
|
Base Material
|
PBT
|
|
|
Contact Material
|
Silver Alloy
|
|
|
LED SPECIFICATIONS
|
|
|
|
Power LED Type
|
Annular LED
|
|
|
LED Color
|
Red / Green / Yellow / Blue/ White / Orange / Purple / Bi-color / Tri-color
|
|
|
LED Voltage
|
3V / 6V / 12V / 24V / 36V / 110V / 220V
|
|
|
LED Life
|
More Than 40,000 hours
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
|
|
Max Switch Rating
|
5A / 250V AC/ DC
|
|
|
Contact Resistance
|
≤ 50mΩ
|
|
|
Insulation Resistance
|
≥ 10000mΩ
|
|
|
Dielectric Strength
|
2000VAC
|
|
|
Mechanical Life
|
More than 1000,000 cycles
|
|
|
Electrical Life
|
More than 100,000 cycles
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
|
|
IP Degree
|
IP 67
|
|
|
Operation Temperature
|
20℃～+55℃
|
|
|
Operating Pressure
|
About 3-5N
|
|
|
Torque
|
5-14Nm
|
|
Why Choose Us
Waterproof ,D
ustproof ,V
andal Resistant
It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Mechanical Life more than 100,0000 times,with long service life.
All our products have passed the CE, CCC, ROHS etc. certifications
Exquisite Workmanship
Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.The push
buttons use 95% silver contacts,with good contactperformance.
High Quality Shell Material
High quality metal shell, durable and strong corrosion resistance,
not easy to fade, excellent performance, IP67 protection level
are great for all kinds of first level equipments.
Easy To Install
Adopt rubber ring and hexagonal nut fixed, anti dust and waterproof, which make it great for outdoors use
ILLUNINATED
High bright solid color LED light, beautiful not dazzling.
Built-in buck resistor. Customized LED light sign.
7 colors optional, can be customized Bi-colors, Tri-colors.
