long service life.
- Product Details
- {{item.text}}
Quick Details
-
Power:
-
2.2kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ConTtrust
-
Dimension(L*W*H):
-
1050*800*850nn
-
Weight:
-
270 kg
-
Product Name:
-

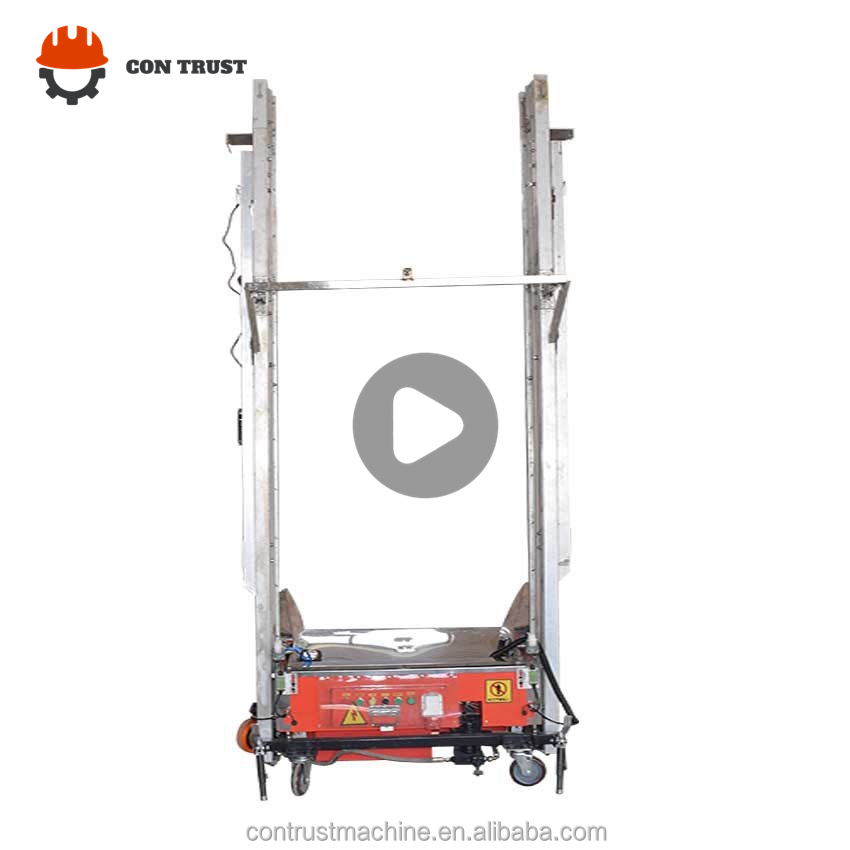

Portable Automatic Wall Plastering Machine
-
Usage:
-
Plaster Wall Machine
-
Function:
-
Plastering Cement
-
Keyword:
-
Automatic Cement Plastering Wall Render Machine
-
Voltage:
-
220/380v
-
Plastering width:
-
800mm-1000mm
-
Motor:
-
Electrical
-
Plastering way:
-
Vibration Plastering
-
Plaster thickness:
-
2-30cm
-
MOQ:
-
1 Set
Quick Details
-
Rendering Thickness:
-
2-30mm
-
Rendering Height:
-
4M
-
Production Capacity:
-
500 M²/8 hours
-
Power:
-
2.2kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ConTtrust
-
Dimension(L*W*H):
-
1050*800*850nn
-
Weight:
-
270 kg
-
Product Name:
-
Portable Automatic Wall Plastering Machine
-
Usage:
-
Plaster Wall Machine
-
Function:
-
Plastering Cement
-
Keyword:
-
Automatic Cement Plastering Wall Render Machine
-
Voltage:
-
220/380v
-
Plastering width:
-
800mm-1000mm
-
Motor:
-
Electrical
-
Plastering way:
-
Vibration Plastering
-
Plaster thickness:
-
2-30cm
-
MOQ:
-
1 Set
Products Description
The wall plaster machine can use in cement wall, brick wall, hollow brick wall, light concrete wall. Applicable ash; White sand ash, stone powder, cement ash, foam mortar, dry powder mortar, gypsum, etc. Its advantages are easy operation in the plastering construction to eliminate the point, draw strips and other processes, saving energy and time, ease to carry, simple operation, and engineering quality is excellent, especially some plastering experience and technology workers can use.
Specification
|
Plaster width
|
800mm
|
1000mm
|
|
Plaster height
|
≤4m
|
≤4m
|
|
Machine dimension
|
900*650*540mm
|
1100*650*540mm
|
|
Packing dimension
|
1050*800*850
|
1250*800*850
|
|
Accessory dimension
|
2450*300*230
|
2450*300*230
|
|
Whole weight
|
270kg
|
280kg
|
|
Plaster thickness
|
2-30mm
|
2-30mm
|
|
Motor
|
2KW
|
2KW
|
|
Plaster efficiency
|
500㎡/8h
|
500㎡/8h
|
|
Electric voltage
|
220V or 380V
|
220V or 380V
|
Details Images
High quality pure copper motor
Manganese steel
plastering board
Adopt control panel, remote control dual operation mode. Microcomputer automatic leveling, one person can operate. Waterproof switch button, safe and convenient.
Laser positioning
Rack gear
Chassis fixation
Advantages
Wall plastering machine is a winch with a vertical gantry frame and opposite scraper frame installed on the top of the chassis, and there is a hopper installed on the inside of the two columns of the scraper frame above the chassis and connected to the chassis, and the hopper can slide up and down on the two columns through the winch, and the side of the gantry frame has a material outlet at the top of the head elevation of one end of the hopper, and the lower part of the outlet has a scraper installed; in the hopper, there is a toggle roller supported in the direction of its width, and the motor In the hopper, there is a toggle roller supported in the direction of its width, and the motor is connected to the toggle roller through the reducer.
Application
Applicable Wall: Cement Wall, Brick Wall, Hollow Wall, Non-burning Brick Wall.
Applicable Ash: Dry Powder Mortar, White Sand, Ash, Cement Powder, Foaming Mortar.
Export standard wooden case for LCL packing. Carton packing for FCL packing.
● What is the Minimum Quality Order?
-- The MOQ is 1 set. If you order large amount, you will get discount.
● What is the payment terms?
-- T/T, L/C, Western Union,credit card.
● Which kind of shipment do you support?
-- Sea transportation, air transportation and international express.
● When will you deliver the machine?
-- 7-15 workdays after receiving the balance payment.
● Do you supply training and after-sale service?
-- Yes, we will supply installation and training on site or online. Also we have a professional service team that can solve problems as fast as possible.
● What about the warranty time of machine?
-- 12 months after shipment.
-- The MOQ is 1 set. If you order large amount, you will get discount.
● What is the payment terms?
-- T/T, L/C, Western Union,credit card.
● Which kind of shipment do you support?
-- Sea transportation, air transportation and international express.
● When will you deliver the machine?
-- 7-15 workdays after receiving the balance payment.
● Do you supply training and after-sale service?
-- Yes, we will supply installation and training on site or online. Also we have a professional service team that can solve problems as fast as possible.
● What about the warranty time of machine?
-- 12 months after shipment.
