Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
PBS-11 series
-
Diameter:
-
12MM
-
Operation type:
-
Momentary Latching
-
Contact Material:
-
Silver Alloy
-
Terminal type:
-
Pin Terminal
-
Material:
-
Plastic
-
Contact Resistance:
-
20m Max
-
Button color:
-
Red Yellow White Black Green
-
Product type:
-
Mini Push Button Switch
-
Function:
-
Push On/Push Off/Push on,Push off
-
Sample:
-
Available
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
1A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunlight/OEM
-
Model Number:
-
PBS-11 series
-
Diameter:
-
12MM
-
Operation type:
-
Momentary Latching
-
Contact Material:
-
Silver Alloy
-
Terminal type:
-
Pin Terminal
-
Material:
-
Plastic
-
Contact Resistance:
-
20m Max
-
Button color:
-
Red Yellow White Black Green
-
Product type:
-
Mini Push Button Switch
-
Function:
-
Push On/Push Off/Push on,Push off
-
Sample:
-
Available
Features:
1)PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
2)12 mm ,pin terminal
3)Momentary/latching
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
Application:
It can be used in variety of places such as Outdoor controls, Communications,Security equipment,Defense,Medical equipment,Industrial automation,Food processing equipment,Security control button,Industrial machinary,Coffee maker control button,Transportation:Mass-transit,life trucks,Bathroom control button and so on.

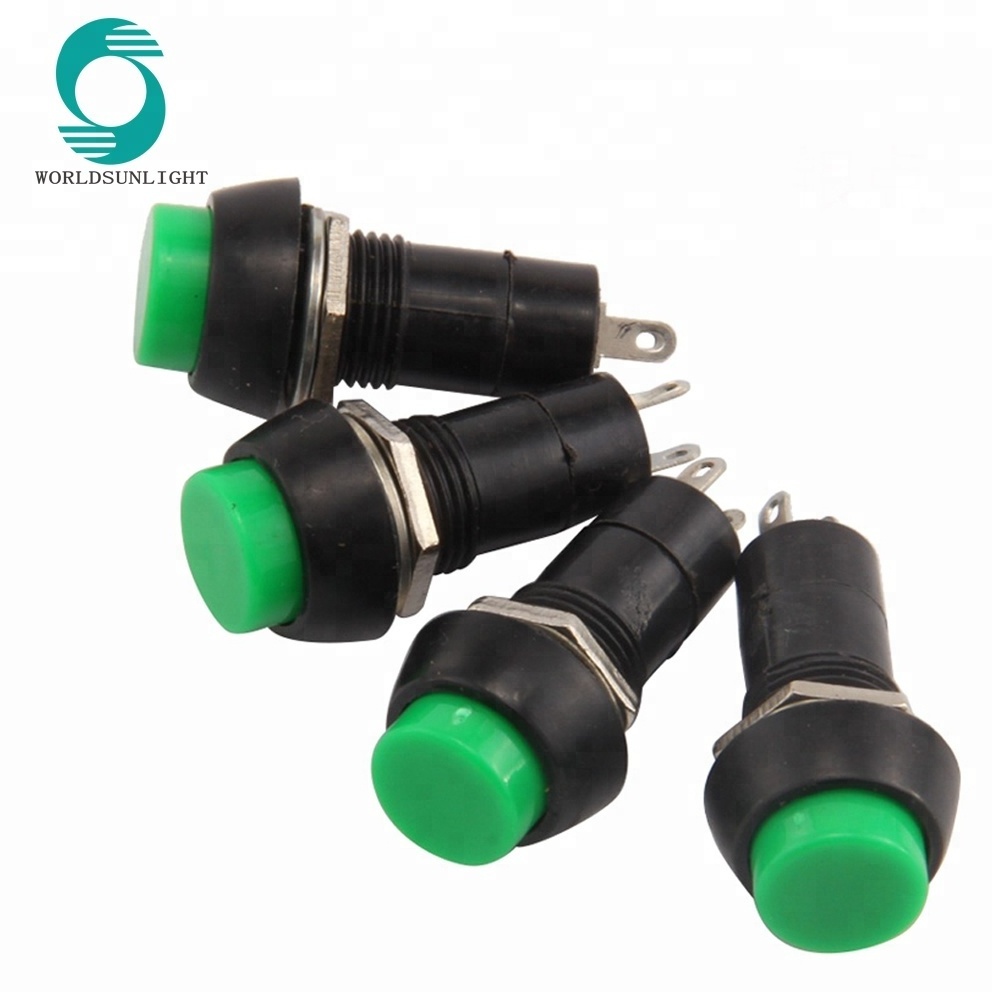

PBS-11B AC 250V 3A 2 Pins SPST Push On Momentary Green Push button Pushbutton Switc
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
Technical parameters:
Specification:
| Ambient temperature | -10°C~+85°C |
| Contact resistance | < 20MΩ |
| Insulation resistance | >500VDC 100MΩ Minute |
| Withstand voltage | >1000VAC, 1 Minute |
| Operating Temperature | -25°C~+85°C |
| Mechanical life | >50000 CYCLES |
| Electrical life | >10000 CYCLES |
Item Name Push Button Switch
Contact Type NO, SPST
Switch Type Momentary/latching
Switch Working Voltage AC 250V, 1A,AC 125V 3A
Switch Color Black, (Red Yellow White Black Green)
Pin Number 2
Material Plastic, Electronic Parts
Dimension:
|
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
Order Code:
Momentary
: Means that when you push switch and then move your finger, the actuator will back to the original position.
Latching : Means that when you push switch once it will change state and stay in this pushed-down position and will not come back to original position unless you push it again.
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
Pictures:
|
|
Anything needs me,plz send the inquiry to me!Thanks!We can supply many kinds of push button switches.
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
As follows:
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
Packaging:
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
Our services:
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested in the reasonable price will be provided to you upon receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit our company and technology communication.
PBS-11A PBS-11B PBS-11C 12mm Thread Dia AC 250V 3A 2 Pins ROUND Push button Pushbutton Switch
