Hobbywing FlyFun V5 20A 30A 60A 80A 110A 120A 130A 160A Speed Controller Brushless ESC 3-6S With DEO Function For RC Quadcopter

Hobbywing FlyFun V5 20A 30A 60A 80A 110A 120A 130A 160A Speed Controller Brushless ESC 3-6S with DEO Function for RC Quadcopter

20A V5 Speed Controller ESC :
Item: FlyFun 20A V5 Brushless ESC
Continuous Current: 20A
Peak_Current(10s): 30A
Lipo Battery: 2s-4s
BEC Output: 5.2V/2.5A(max: 4A)
Plug: 2.0mm Banana Female Plug
Weight: About 13g
Size(PCB): 25*15*5mm

30A V5 Speed Controller ESC :
Model: FlyFun V5 30A
Cont.Current: 30A
Burst Current: 40A
BEC mode(Notel): Linear
BEC output: 5.1V/6V,3A-7A
Lipo: 2-4S
Nimh nicd: 5-12
User programm-able: Available
Weight: 32g
Size: 50x25.4x12mm

40A V5 Speed Controller ESC :
Model: FlyFun V5 40A
Cont.Current: 40A
Burst Current: 60A
BEC mode(Notel): Switch
BEC output: 5.2V/6V/7.4V, 8A-20A
Lipo: 3-6S
User programm-able: Available
Weight: 44g
Size: 47x28x14mm

60A V5 Speed Controller ESC :
Current :60A (Peak.Current :80A )
Size :68.8x34.6x18mm
Battery : 3-6S Lipo
Weight :73.5g
Swithch BEC 5.2V/6V/7.4V to options
Output Current : 8A(Peak.Current 20A)
Programing Card : LED digital Or Remote control to Programing

80A V5 Speed Controller ESC :
Current :80A (Peak.Current :100A
Size : 69.8x34.6x19
Battery : 3-6S Lipo
Weight : 92g
Swithch BEC 5.2V/6V/7.4V to options
Output Current : 8A(Peak.Current 20A)
Programing Card : LED digital Or Remote control to Programing

FLYFUN-110A-HV-SBEC-V5 ESC
Continuous current: 110A (instantaneous 140A)
Power: 6-14S LiPo lithium battery
Specification: 92.7*45.6*27mm
Weight: 180g
BEC output: 5.1V / 6.0V / 7.4V three-speed adjustable; output current lasts 10A, instantaneous 25A
Setting card: LED digital tube setting card. Or remote control settings.
More linear throttle, lower temperature and longer flight times
ESC is added to the synchronous rectification drive efficiency optimization technology* (DEO---Driving Efficiency Optimization),
Brings faster and more linear throttle response, while enhancing flight stability and flexibility; lower ESC temperature rise,
EDM work is more reliable; higher drive efficiency and longer battery life.

FLYFUN-110A-HV-OPTO-V5 ESC
Continuous current: 110A (instantaneous 140A)
Power: 6-14S LiPo lithium battery
Specification: 92.7*45.6*27mm
Weight: 170g
BEC output: none
Setting card: LED digital tube setting card. Or remote control settings.

FLYFUN 120A V5 ESC:
Type: Brushless
Cont./Peak Current: 120A/150A
Input: 3-6S LiPo
BEC Output: Switch Mode: 5.2V/6V/7.4V, 8A/20A
Input Wires: Red-12AWG-150mm*1
Black-12AWG-150mm*1
Output Wires: Black-12AWG-150mm*3
Input Connectors: No
Output Connecotors: 4.0 Gold Connectors (Female)
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire
Firmware Upgrade: Not Supported
Size: 77.2x34.6x19.2mm
Weight: 93g

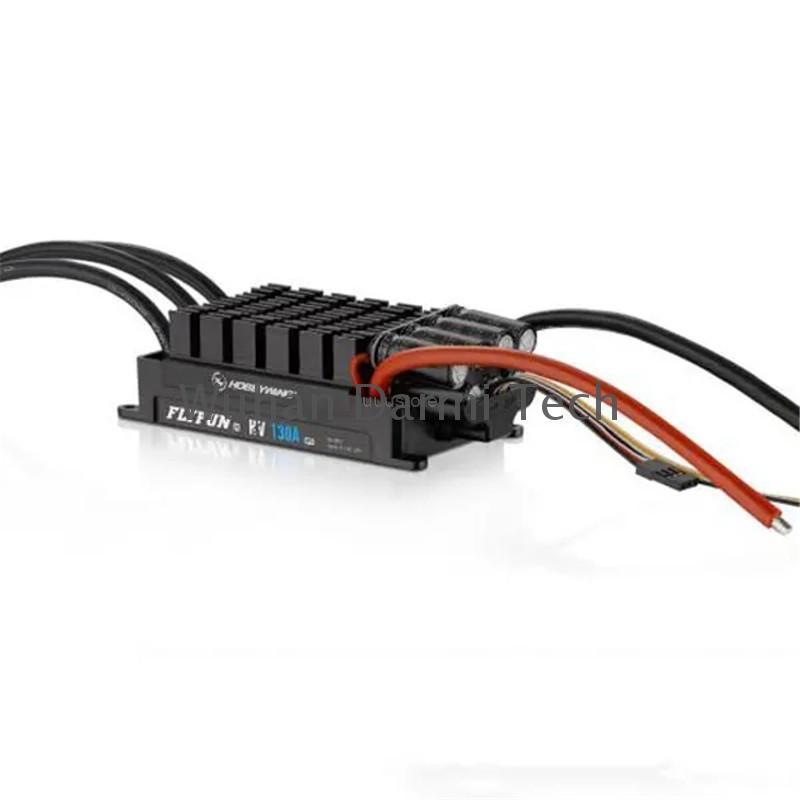

FLYFUN 130A HV OPTO V5 ESC
Type: Brushless
Cont./Peak Current: 130A/160A
Input: 6-14S LiPo
BEC Output: No
Input Wires: Red-10AWG-150mm*1
Black-10AWG-150mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connecotors: No
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire
Firmware Upgrade: Not Supported
Size: 110x50.3x33.3mm
Weight: 221.5g

FLYFUN 160A HV OPTO V5 ESC:
Type: Brushless
Cont./Peak Current: 160A/200A
Input: 6-14S LiPo
BEC Output: No
Input Wires: Red-10AWG-150mm*1
Black-10AWG-150mm*1
Output Wires: Black-10AWG-150mm*3
Input Connectors: No
Output Connecotors: No
Transmitter: Supported
LED Program Card: Not Supported
LED Program Box: Supported
LCD Program Box: Not Supported
WiFi Module: Not Supported
Program Port: Separate Program Wire
Firmware Upgrade: Not Supported
Size: 110x50.3x33.3mm
Weight: 221.5g

]

Here is detail pictures
