- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Ubiquiti
-
Product name:
-
LAP-GPS
-
Dimensions (Mount Not Included):
-
360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81")
-
Weight (No Mount):
-
752 g (1.66 lb)
-
Networking Interface:
-
10/100/1000 Ethernet Port
-
Memory:
-
DDR2 64 MB
-
Max. Power Consumption:
-
7.1W
-
Max. TX Power:
-
25 dBm
-
Warranty:
-
1 Year
-
Use:
-
FTTX
Quick Details
-
Type:
-
Enterprise Wireless Access Point
-
Model Number:
-
LAP-GPS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Ubiquiti
-
Product name:
-
LAP-GPS
-
Dimensions (Mount Not Included):
-
360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81")
-
Weight (No Mount):
-
752 g (1.66 lb)
-
Networking Interface:
-
10/100/1000 Ethernet Port
-
Memory:
-
DDR2 64 MB
-
Max. Power Consumption:
-
7.1W
-
Max. TX Power:
-
25 dBm
-
Warranty:
-
1 Year
-
Use:
-
FTTX

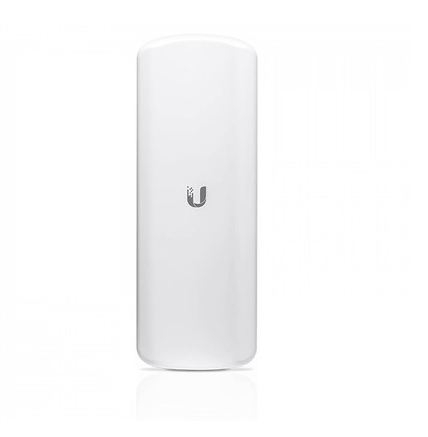

Ubiquiti LAP-GPS 5.8G wireless AP bridge 90 degree coverage sector antenna 2x2MIMO antenna
High-Performance Sector AP
Hardware Overview
The LiteAP AC delivers up to 450+ Mbps real TCP/IP throughput and features an efficient form factor.
Quick Installation
Minimal fasteners simplify installation. No tools are needed; only a single wrench is required for pole-mounting.
Versatile Mounting
The ball-joint mount of the LiteAP AC provides adjustment flexibility for versatile mounting options.
Efficient Design
The LiteAP AC features a lightweight antenna with an integrated radio in a sleek design.
Gigabit Ethernet
The LiteAP AC delivers high throughput over its wired connection.
Specifications
| Features / filters | |
| Working frequency | 5 GHz |
| Number of LAN ports | 1x [10/100/1000M (RJ45)] |
| Maximum wireless transmission speed | 450 Mb/s |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| CPU frequency | 533 MHz |
| RAM | 64MB |
| The type of power supply to the device | Passive PoE |
| Horizontal beam width | 90° |
| Device type | Client device |
| Antenna gain | 11dBi - 20dBi |
Ubiquiti LAP-GPS specification
| Dimensions (without handle) | 360.98 x 124.57 x 71.28 mm (14.21 x 4.90 x 2.81") |
| Weight (without handle) | 752 g (1.66 lb) |
| Mounting kit | Pole mount kit (included) |
| Network interface | (1) Port 10/100/1000 Ethernet |
| Memory | DDR2 64 MB |
| Maximum power consumption | 7.1W |
| Maximum TX Power | 25 dBm |
| Antenna gain | 17 dBi |
| Power Supply | 24V, 0.3A PoE adapter (included) |
| Power method | Passive PoE (Pary 4, 5+; 7, 8 Return) |
| Processor | Atheros MIPS 74Kc, 533 MHz |
| Shock and Vibration | ETSI300-019-1.4 |
| ETSI specification | EN 302 326 DN2 |
| ESD / EMP protection | ± 24 kV Contact / Air |
| RoHS Compliant | Yes |
| Working temperature | -40 to 70 ° C (-40 to 158 ° F) |
| Working humidity | 5 is 95% Noncondensing |
| Certificates | FCC, IC, CE |
| Working frequency (MHz) | |
| World | 5150 - 5875 |
| USA |
U-NII-1 5150 - 5250
U-NII-3 5725 - 5850 |
| Management Radio (MHz) | |
| World | 2412 - 2472 |
| USA | 2412 - 2462 |
