Quick Details
-
Model Number:
-
LA-5
-
Dimension:
-
892*465*314mm
-
Storage:
-
detail
-
SNR:
-
detail
-
Output Power:
-
500W
-
Format:
-
DETAIL
-
Type:
-
line array mid speaker
-
Driver:
-
LF: 2*10inch HF: 2*1.7inch Neo
-
Power:
-
350W RMS 700W Peak
-
Impedance:
-
LF: 16Ω HF: 16Ω
-
Frequency Range:
-
60Hz ~ 20KHz
-
Product size:
-
892*465*314 mm
-
Cabinet:
-
Multi-layer Birch Plywood
-
Color:
-
Black
-
Surface Finish:
-
Resistant Paint
-
Application:
-
Theatre, Concert, Music Hall, Stadium
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SPE
-
Model Number:
-
LA-5
-
Dimension:
-
892*465*314mm
-
Storage:
-
detail
-
SNR:
-
detail
-
Output Power:
-
500W
-
Format:
-
DETAIL
-
Type:
-
line array mid speaker
-
Driver:
-
LF: 2*10inch HF: 2*1.7inch Neo
-
Power:
-
350W RMS 700W Peak
-
Impedance:
-
LF: 16Ω HF: 16Ω
-
Frequency Range:
-
60Hz ~ 20KHz
-
Product size:
-
892*465*314 mm
-
Cabinet:
-
Multi-layer Birch Plywood
-
Color:
-
Black
-
Surface Finish:
-
Resistant Paint
-
Application:
-
Theatre, Concert, Music Hall, Stadium
Products Description

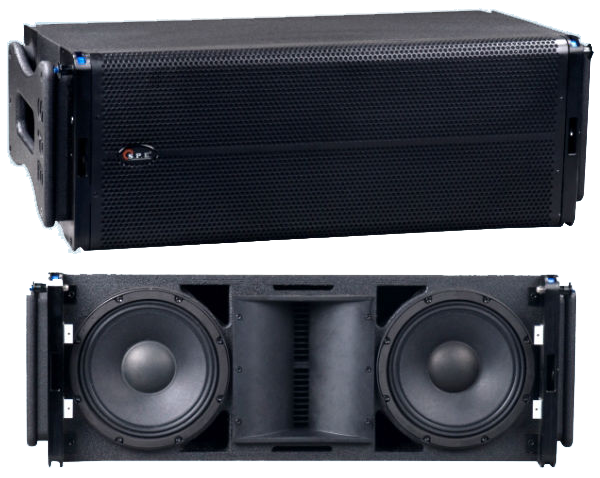

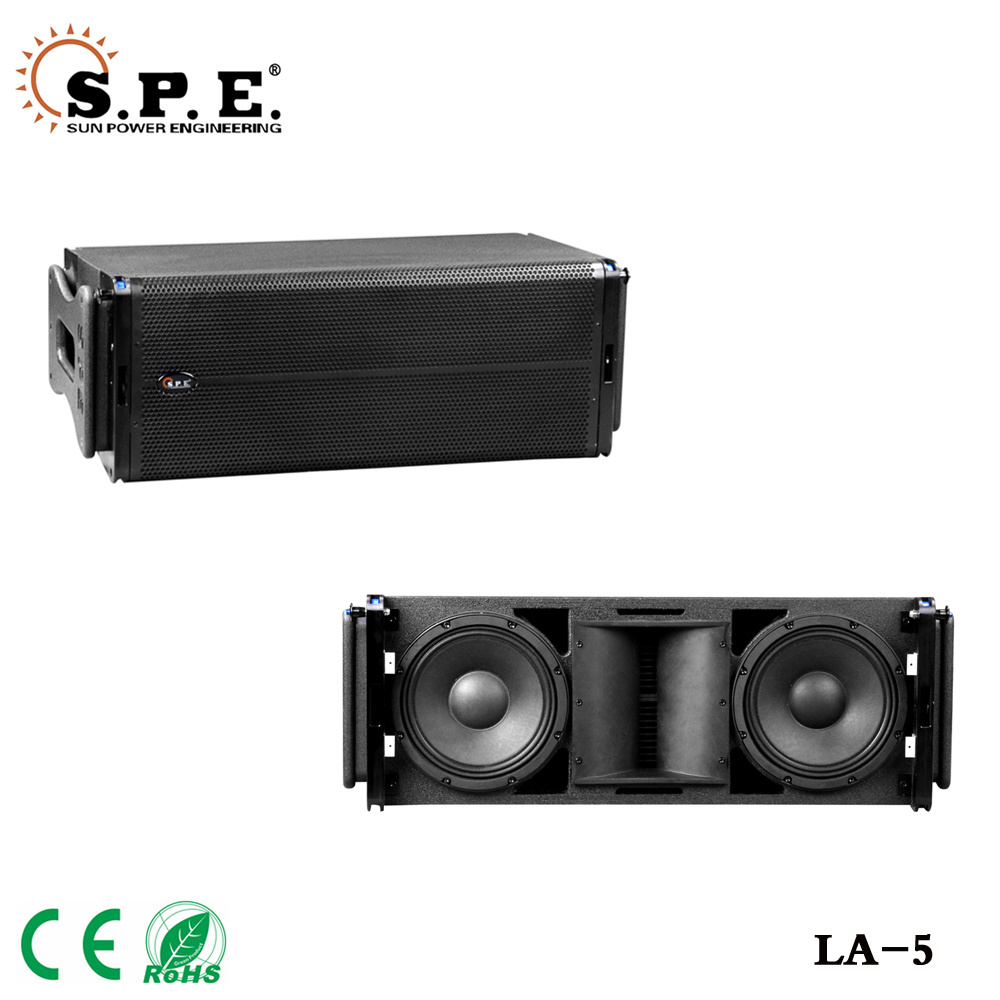

LA-5 Dual 10 inch line array speaek --Passive system
The LA-5 uses a 3-way professional performance sound. The bass uses a 10″ unit,Component with LF 2*10"and the high frequency uses two 1.7″ NEO units. The cavity design, the parameters of the fine calculation unit, and the principle of physical resonance make each unit work in different frequency band cavities. LA-5 has large power, sensitivity, convenient link and flexible use. LA-5 adopts active Power amplifier driven mode design, the power amplifier uses 3 channels to drive different units, built-in amplifier protection box and fan cooling system effectively improve the reliability of the power amplifier. LA-5 is equipped with high-performance class D power amplifier, with high efficiency and loss. Small, low temperature, etc. The LA-5 is flexible and convenient to upgrade passive systems with LA-5B/2×15″ active low frequency. External DSP digital processor mode for customer choice. LA-5 is suitable for medium and large-scale mobile performances, concerts, auditoriums, concert halls, and fixed installations.
|

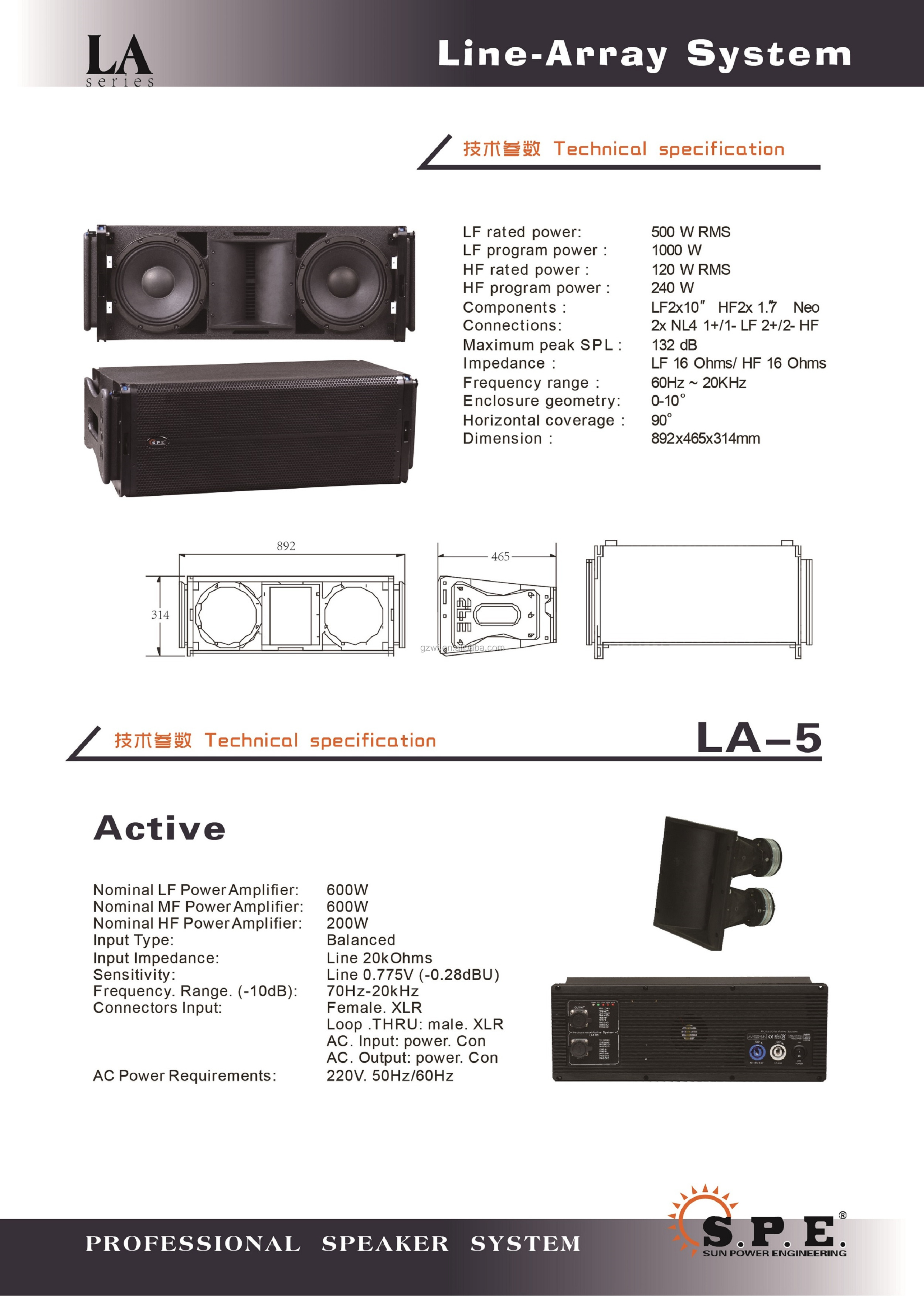

Passive System
|
|
|
|
LF rated power:
|
500W RMS
|
|
|
LF program power:
|
1000W
|
|
|
HF rated power：
|
120W RMS
|
|
|
HF program power:
|
240W
|
|
|
Components:
|
LF2*10"/HF2*1.7" Neo
|
|
|
Conections:
|
2*NL4 1+/1-LF 2+/2-HF
|
|
|
Max SPL:
|
132dB
|
|
|
Impedance:
|
LF 16 Ohms/HF 16 Ohms
|
|
|
Frequency range:
|
60Hz-20KHz
|
|
|
Dimension:
|
892*465*314mm
|
|
