Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

FOB Reference Price: Get Latest Price

≥1 Sets

US $2980

≥2 Sets

US $2500

≥3 Sets

US $1900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Marketing Type:: classic model

Voltage:: 380V

Power:: 4KW

Dimension(L*W*H):: 1400X650X1450

Weight (KG):: 2600

Name:: power forge hammer cold forging machine price

Function:: Forging metal

Fall mass:: 40

Motor speed:: 1440r.p.m

COLOR:: Costomized

Hit number:: 245

Max. round steel can be forged:: Dia. 65mm

Max. square steel can be forged:: 55x55mm

Max.hit energy:: 0.53KJ

Operator:: 1

Quick Details

Place of Origin:: Henan, China

Brand Name:: WADJAY

Machine Type:: Air Hammer

Marketing Type:: classic model

Voltage:: 380V

Power:: 4KW

Dimension(L*W*H):: 1400X650X1450

Weight (KG):: 2600

Name:: power forge hammer cold forging machine price

Function:: Forging metal

Fall mass:: 40

Motor speed:: 1440r.p.m

COLOR:: Costomized

Hit number:: 245

Max. round steel can be forged:: Dia. 65mm

Max. square steel can be forged:: 55x55mm

Max.hit energy:: 0.53KJ

Operator:: 1

Product Description

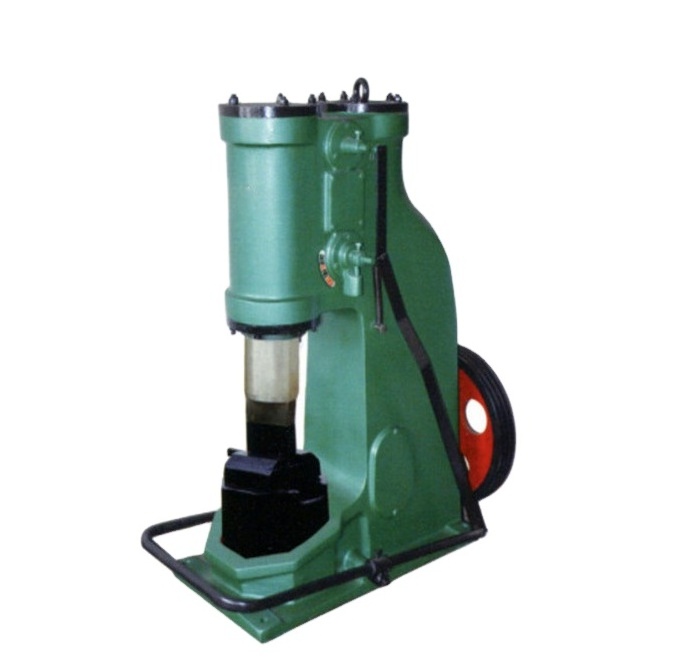

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price , a kind of free forging machine. Air Hammer Forging Machine The compression cylinder compresses the air and sends it into the working cylinder through the distribution valve, pushing the piston together with the hammer head to move up and down for hammering. Flexible operation, widely used in the production of small and medium forgings. The air hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a falling part, an air distribution mechanism and an anvil.

Specification

Here just popular model forging hammer specification for your reference,also have other model for your choice, pls contact with us get more details.

Item	C41-16kg	C41-20kg	C41-40kg	C41-55kg	C41-75kg	C41-100kg
Falling mass kg	16	20	40	55	75	100
Max.strike energy kj	0.18	0.22	0.53	0.75	1	1.3
Strick per minute s/m	280	270	245	230	210	200
Max.section of square steel can be forged mm	15*15	30*30	55*55	65*65	75*75	80*80
Max.diameter of round steel can be forged mm	20	35	65	70	85	85
Operating range height mm	180	200	245	260	300	320
Voltage	380v,50hz,also can be customize according to your demands
Power kw	1.5	2.2	4	5.5	7.5	7.5

Product Details

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

⒈Using compressed air as power to meet the needs of safe production, the percussion strength and frequency can be controlled by adjusting the air pressure

⒉The machine body is made of cast iron, and the large-tonnage air hammer anvil is made of cast steel
⒊The mechanism is simple and not easy to damage

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

Machine frame

Air Hammer Forging Machine The air hammer is mainly composed of a frame, a transmission mechanism, a compression cylinder and a working cylinder, a compression piston, a falling part, an air distribution mechanism and an anvil.

The frame is the main body of the air hammer. Motors, transmission devices, working mechanisms and operating mechanisms are
installed on the frame. These mechanisms are compactly combined into a whole on the frame.

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

Anvil

Air Hammer Forging Machine anvil pad and the lower anvil are installed on the anvil. In order to meet the stability of forging,
the quality of the anvil is 12-15 times the mass of the dropped part. It is installed on a solid reinforced concrete foundation
with a pad in between. Eliminate the vibration caused by hammering.

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

Forging air hammer anvil can be customize according to your demands:

Successful Project

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

Packing & Delivery

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

1.Forging air hammer normal packed by plywood case

2.Forging air hammer delivery port normal use qingdao, also can delivery according to your demands

FAQ

Hot sale c41-25kg pneumatic power forge hammer cold forging machine price

Q1. My place is 220v,60hz,if your machine fit?
A1: yes dear,normal our machine is 380v,50hz, also can customize according to your demands

Q2. Can you provide OEM service ?
A2: Yes, most ofmachine need to be customized as detailed request

Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.

Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6: 1) Beiing South Statioin to Zhengzhou Station (by fast train 2 hour).
2) Shanghai Hongqiao to Zhengzhou Station (4.5 hours)
3) Guangzhou Airport to Zhengzhou( 2 hours)
