Quick Details
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 2550*1080*1590mm
-
Weight:
-
KG
-
Machinery Capacity:
-
25-45 bottles/min(depends on bottle size)
-
Product name:
-
Flat Curved Surface Labeling Machine
Quick Details
-
Application:
-
Food, Beverage, Commodity, Chemical, Machinery & Hardware
-
Packaging Type:
-
Bottles
-
Packaging Material:
-
Plastic, Paper, Wood
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONESUN
-
Dimension(L*W*H):
-
About 2550*1080*1590mm
-
Weight:
-
KG
-
Machinery Capacity:
-
25-45 bottles/min(depends on bottle size)
-
Product name:
-
Flat Curved Surface Labeling Machine
Products Description

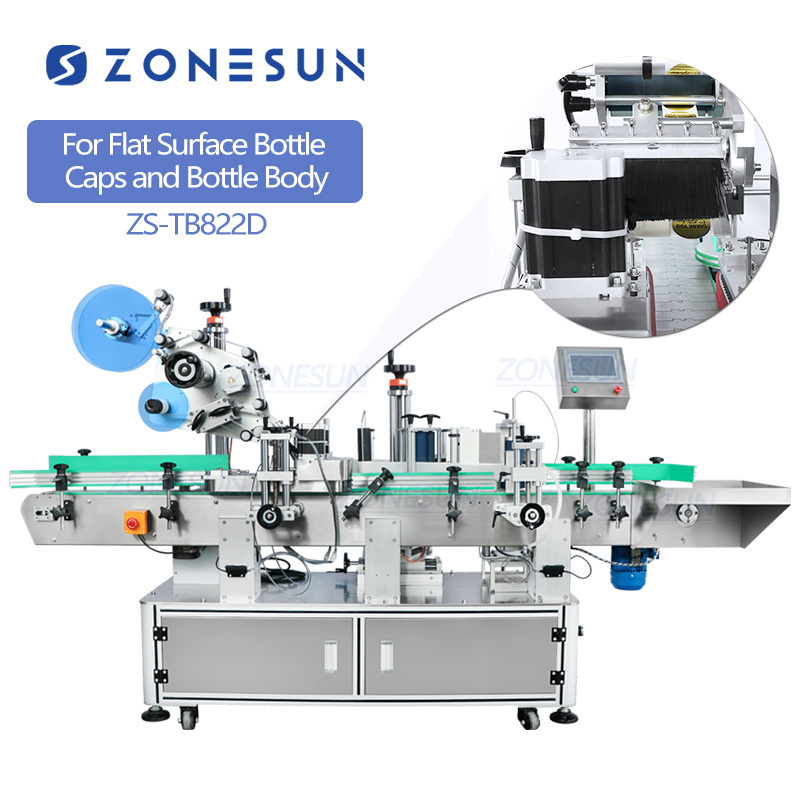

This automatic labeling machine is with two labeling heads, one for flat surface,one for round bottles. It is normally used for labeling bottle caps and bottles at the same time. This machine is widely used in food, daily chemicals, cosmetics industries.
|
Model
|
ZS-TB822D Labeling Machine
|
|
Power Supply
|
AC110V/220V 50Hz/60Hz 5000W
|
|
Labeling Capacity(bottles/min)
|
25-45 bottles/min(depends on bottle size)
|
|
Labeling Accuracy(mm)
|
±1.0mm
|
|
Suitable Bottle Diameter
|
Φ25-100mm
|
|
Label Size(mm)
|
(L)20mm-285mm* (H)20-150mm
|
|
Roll inside Diameter(mm)
|
Φ76mm
|
|
Roll outside Diameter(mm)
|
Φ280mm
|
|
Conveyor Size
|
100*2380mm(W)
|
|
Machine Size
|
About 2550*1080*1590mm
|
|
Package Size
|
About 2550*1140*1685mm
|
|
Net Weight/Gross Weight
|
About 378kg/523kg
|
With two kinds of labeling head, this machine can be used to labeling sticker on flat surface and wrapping around bottles. The electric eyes can be used to detecting objects, improves labeling accuracy.
The chain conveyor belt is with larger loading capacity, it can help to transport bottles. The guard railing can be adjusted according to bottles diameter, makes sure the bottle can be conveyed smoothly.
Click on the image to choose the product you like.
Please send us your request, we can help you customize asuitable machine!
We have other machine, if you want to know,please send us your request, we can help you
customize a suitable machine !
