Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
FYI
-
Weight:
-
240 KG
-
Textile Testing Instrument:
-
Small cotton yarn spinning machine
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Bangladesh
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE ISO
Quick Details
-
Marketing Type:
-
New Product 2023
-
Application:
-
Ring spinning
-
Production Capacity:
-
High speed
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
FYI
-
Weight:
-
240 KG
-
Textile Testing Instrument:
-
Small cotton yarn spinning machine
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Bangladesh
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Certification:
-
CE ISO

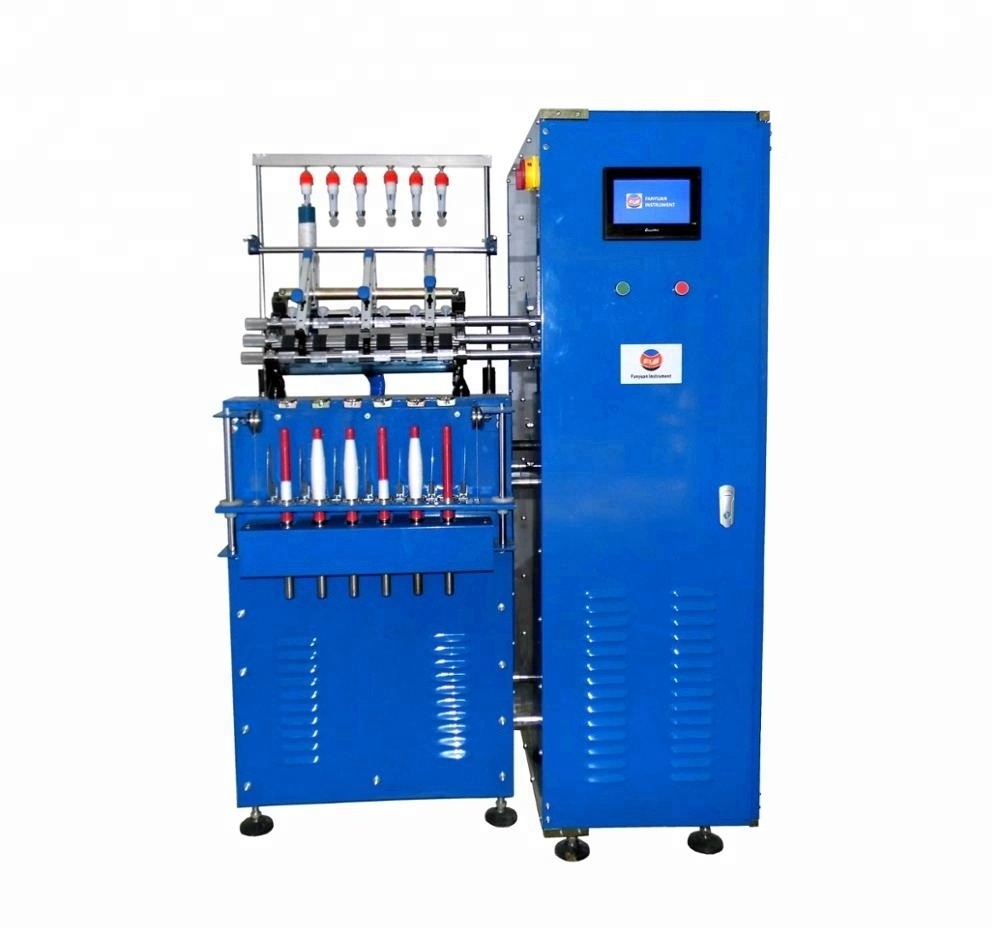

DW7040H Small cotton yarn spinning machine
Application :
Small cotton yarn spinning machine is used to spin roving to be spun yarn through drafting and ring spinning. It’s the ideal system for teaching, researching, etc.
Features :
l Use S/Z twist reversing;
l High-efficiency imported frequency converter;
l Drafting, spindle blade, flyer or moulding drive independently;
l Mini-type design, easy to clean, set and maintain;
l PLC + touch screen, easy to learn and operate;
|
Suitable fiber type |
Wool yarn |
|
Length of machinable fiber |
Wool fiber, 55~90mm |
|
Control mode |
PLC & touch screen |
|
Language |
English |
|
Density of yarn |
6 ~ 99tex ( 6 ~ 100 Ne) |
|
Spindle gauge |
7 5 mm |
|
Number of spindles |
6 |
|
Ring diameter |
53 |
|
Pressure mode |
P endulum arm |
|
U pper roller diameter |
F ront roller 50 mm , middle roller 50 mm , back roller 50 mm |
|
D own roller diameter |
F ront roller 3 5mm , middle roller 3 5mm , back roller 3 5mm |
| Distance of rollers | Front between back: max. 230mm, manually-adjustable |
|
Spindle length |
205mm |
|
Suitable twist |
200~2000 (T/m) |
|
Draft Range |
A pprox. 2-50 |
|
Draft Range control |
Automatic |
|
Twist |
S or Z |
|
Max speed of spindle |
8 000 rpm |
