Quick Details
-
Type:
-
Farm Equipment
-
Use:
-
Food winnowing machine
-
Production Capacity (kg/h):
-
800 - 1000
-
Power (kW):
-
2.2KW
-
Weight:
-
75 KG
-
Name:
-
Grain vibration maize wheat Selection Screening Machine
-
Application:
-
rice soybean seed peanut vibrating sieve sorting
-
Processing type:
-
Agricultural grading sorting machine
-
Product name:
-
Sieve Removal Machine
-
Capacity:
-
1ton/h
-
Keywords:
-
maize wheat grain grading screen machine
-
Feature:
-
automatic screening machine for various grains
-
Suitable for:
-
various grains such as soybean corn wheat rice
-
Usage:
-
Grain seeds screening machine
-
Product:
-
Sieve Removal Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YZ
-
Dimension(L*W*H):
-
1735*820*960mm
-
Type:
-
Farm Equipment
-
Use:
-
Food winnowing machine
-
Production Capacity (kg/h):
-
800 - 1000
-
Power (kW):
-
2.2KW
-
Weight:
-
75 KG
-
Name:
-
Grain vibration maize wheat Selection Screening Machine
-
Application:
-
rice soybean seed peanut vibrating sieve sorting
-
Processing type:
-
Agricultural grading sorting machine
-
Product name:
-
Sieve Removal Machine
-
Capacity:
-
1ton/h
-
Keywords:
-
maize wheat grain grading screen machine
-
Feature:
-
automatic screening machine for various grains
-
Suitable for:
-
various grains such as soybean corn wheat rice
-
Usage:
-
Grain seeds screening machine
-
Product:
-
Sieve Removal Machine
Product Description
Grain Linear Vibrating Sorting Sieve Equipment Maize Wheat Sifter Screen Machine
Multifunctional grain screening machine belongs to the small and medium-sized grain screening machine, used to remove the leaves in the grain, bran shell, dust and deflated grain and other debris. It has the impurity removal rate up to 90 inorganic impurity removal rate up to 92 It has the advantages of beautiful appearance, compact structure, convenient movement, dust removal efficiency is obvious, low energy consumption, simple and reliable use, and the screen can be arbitrarily changed according to user requirements, suitable for different material varieties.
|
Model
|
YZSX-1
|
|
Capacity
|
1000kg/h
|
|
Power
|
2.2KW
|
|
Voltage
|
220V
|
|
Layer of screen
|
2
|
|
Weight
|
75kg
|
|
Dimension
|
1735*820*960mm
|
Final effect of our Grain screening machine maize wheat grain grading screen machine rice soybean seed peanut vibrating sieve sorting machine
Details Images

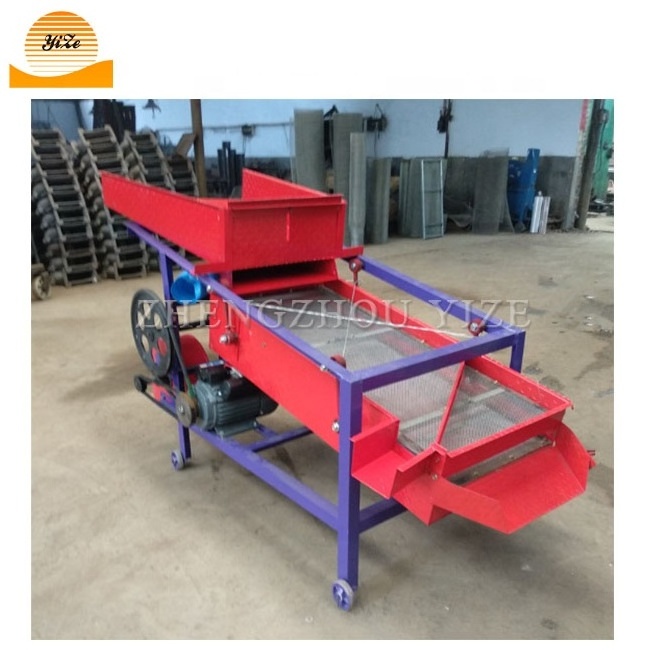

Product structure
The machine is composed of five parts: hopper, frame, transmission mechanism, fan and air duct. The foundation of the frame is equipped with four wheels for easy movement. Screen and frame using split structure, easy to replace a variety of mesh screen. The selected screen for two layers of screen, first through the feed port at the fan blow, directly blow away the light weight of stray leaves or wheat straw, the upper screen of the initial screening and then clean up the clutter, good food (seeds) directly into the lower screen, the lower screen will put food (seeds) in the small miscellaneous. Small stones. Defective grain (seeds) will be directly missed, good grain (seeds) will be sifted out from the outlet.
Working principle of product
01
First place the machine in the horizontal position, switch on the power, start the working switch, ensure that the motor runs clockwise, to show that the machine into the correct working state.
02
hen pour the screened material into the hopper, according to the size of the material particles correctly adjust the plug plate at the bottom of the hopper so that the material evenly into the upper screen; At the same time, the upper part of the screen cylinder fan to the screen mesh discharge end of the correct air supply; The air inlet at the lower end of the fan can also be directly connected to the cloth bag to receive the light waste in the grain.
03
The lower part of the vibrating screen has four bearings respectively fixed in the channel steel frame to do linear reciprocating motion; The upper coarse screen of the sieve is to clean the large particle impurities in the material, and the lower fine screen is to clean the small particle impurities in the material. One side of the selection machine through the movable connecting rod and motor driven crankshaft or eccentric wheel coordination work to complete the whole process of selection and impurity removal.
Scope of application
Small vibrating grain seed screening machine can also effectively separate and clean wheat, rice, corn, beans, highland barley, sorghum, peas, barley, peanut,Buckwheat and other grains and food, chemical and other industries in the particles of impurities, miscellaneous velvet and stone sand, and so on, really a multi-purpose machine.
