Quick Details
-
Brand Name:
-
SIMO
-
Model Number:
-
YVFE2 250M-2/4/6/8
-
Frequency:
-
5~70 Hz
-
Frame size:
-
250
-
No. of poles:
-
2P 4P 6P 8P
-
Ambient Temperature:
-
-15℃ ~ +40℃
-
Insulation:
-
155(F) Grade
-
Altitude:
-
≤1000m .
-
Mounting type:
-
IM B35
-
Cooling type:
-
IC416
-
Connection:
-
Delta/Y
-
Vibration:
-
≤2.4mm/s
-
Duty:
-
S1
Quick Details
-
AC Voltage:
-
380V
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SIMO
-
Model Number:
-
YVFE2 250M-2/4/6/8
-
Frequency:
-
5~70 Hz
-
Frame size:
-
250
-
No. of poles:
-
2P 4P 6P 8P
-
Ambient Temperature:
-
-15℃ ~ +40℃
-
Insulation:
-
155(F) Grade
-
Altitude:
-
≤1000m .
-
Mounting type:
-
IM B35
-
Cooling type:
-
IC416
-
Connection:
-
Delta/Y
-
Vibration:
-
≤2.4mm/s
-
Duty:
-
S1
Motor Description

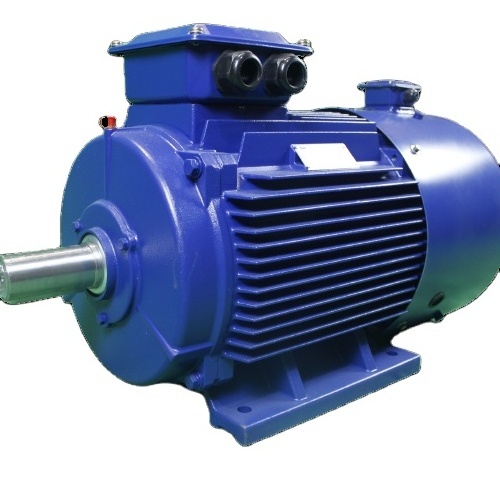

YVFE2-series of motor is a variable frequency and speed regulating three phase asynchronous motor derived from YE2-series of motor. The coolant mode is IC416, and its efficiency value conforms to the grade 3 energy efficiency standard in GB 18613-2012, which is consistent with the IE2 of IEC 60034-30 Energy Efficiency Grade of Single Speed Three Phase Cage Induction Motors. This series of motor can completely replace YJTG, YVF2-series low-voltage variable frequency speed regulating three phase asynchronous motor.
In terms of structure, the cooling fins are in the form of parallel and vertical distributions. This structure is novel and the shape is unique. The terminal box is at the top, which is convenient for users to connect. The designs of parts such as base and end shield are reasonable, which makes the whole machine lower in both noise and vibration. The axial flow fan is used for forced ventilation to ensure that the temperature rise of the motor does not exceed the specified value during long-term operation at low speed and constant torque. Full consideration is given to the adverse effect of the power supply of the inverter on the motor design to ensure the motor's overload capacity at high frequencies and to maintain constant torque output at low frequencies.
The speed regulating systems connected frequency converter and YVFE2-series high-efficiency variable frequency speed regulating three phase asynchronous motor, compared with other speed regulating systems, have the advantages of significant energy saving effect, good speed regulating performance, wide speed range, low noise, low vibration, easy equipment with various inverters at home and abroad. It can be widely used in the speed regulation of constant torque and power in light industry, textile, chemical industry, metallurgy, machine tool, etc., and in the speed regulation of energy-saving in fans, pumps, etc., which helps to achieve the automatic control of the speed regulation system.
Outline Dimensions
IM B35 (L-YVFE2-250M-2: 1035mm； L-YVFE2-250M-4/6/8：1035mm)
Motor Parameters
Q：Are you the manufacturer or a trading company/distributor?
A: We are the manufacturer of SIMO Brand electric motor. And we trade our products with our clients directly.
Q: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. The specifications, color and dimensions can be customized.
Q: Our existing motor is not SIMO brand, can we use your motor to replace?
A: Yes, we have great design and production team, and we have done many successful cases to replace with other brands’ motors,such as ABB, SIEMENS, WEG, FUJI, TECO etc.
Q: What is the payment terms?
A: 30% T/T in advance, 70% balanced before delivery.
Q: Are the motors in stock?
A: We have large amount of motors in stock, including the IEC motors, DC motors and high voltage motors. But the inventory is
dynamic and not every model will be in stock, please confirm before placing an order.
Q: How is your delivery time?
A: If the motor is in stock, it can be delivered within 7 days.
If not, the delivery time for different type is different, normally 60~90 days.
Q: What is your MOQ of this item ?
A: 1 set per item.
Q: How is your package?
A: All export motors will be well packaged to avoid any possible damages during transportation. Vacuum tin foil packaging inside,
and solid wooden box outside. The motor will be firmly fixed on the box base.
Q: How long is your warranty period?
A: One year since the delivery date.
Q: Can you provide the Certificate of Original ?
A: Yes, sure.
