Quick Details
-
Engine Brand:
-
Imported brand
-
Travel Speed:
-
0~10.4km/h, 0~10.4km/h
-
Grade Ability:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ORIEMAC
-
Dimension(L*W*H):
-
5940*2300*3150mm
-
Exciting Force:
-
280/190kN, 280/190kN
-
Vibration frequency:
-
30/35Hz
-
Compaction width:
-
2130mm
-
Drive wheel distribution weight:
-
6400kg
-
Wheel base:
-
3010mm
-
Vibratory drum diameter:
-
1523mm
Quick Details
-
Type:
-
Vibratory Roller
-
Power:
-
93kw, 93kw
-
Weight:
-
12 TON
-
Engine Brand:
-
Imported brand
-
Travel Speed:
-
0~10.4km/h, 0~10.4km/h
-
Grade Ability:
-
Other
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ORIEMAC
-
Dimension(L*W*H):
-
5940*2300*3150mm
-
Exciting Force:
-
280/190kN, 280/190kN
-
Vibration frequency:
-
30/35Hz
-
Compaction width:
-
2130mm
-
Drive wheel distribution weight:
-
6400kg
-
Wheel base:
-
3010mm
-
Vibratory drum diameter:
-
1523mm

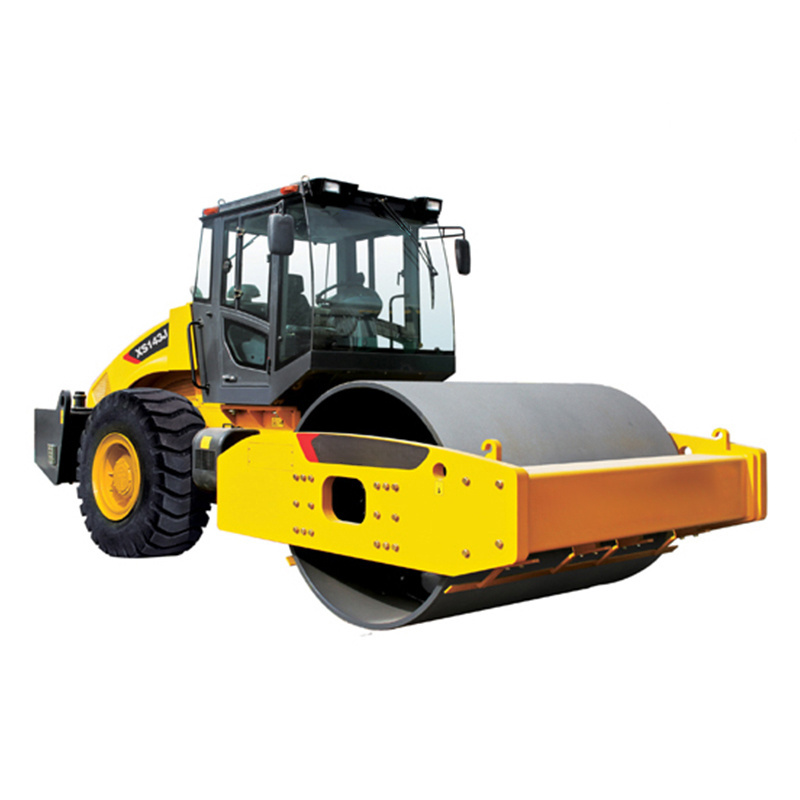

Popular Construction 12TON Road Roller XS123
XS123 Vibrating Machine 12ton New Diesel Engine Road Roller Price
XS123 single drum roller is medium, self-propelled, full-hydraulic vibratory roller, has the big exciting force, high compaction efficiency, good compaction quality, used mainly for compaction operation of base coarse, sub-base coarse, stone filling of high-speed railway, high-grade highway, airport, harbor, dams and industrial construction site.
1. Hydraulic system
Adopt imported closed hydraulic drive system composed of variable displacement pump and motor to ensure better drive performance and gradeability. * Two gears infinitely variable speeds to ensure optimized working speeds under different working conditions.
2. Braking system
Braking system is made up with drive axle, wet type brakes at front drum speed reducer, and brake of closed hydraulic system. It owns travelling,parking, and emergency braking functions to ensure driving safety.
|
Description
|
Unit
|
Parameter value
|
|
|
Work weight
|
kg
|
12000
|
|
|
Front wheel mass distribution
|
kg
|
6700
|
|
|
Rear wheel mass distribution
|
kg
|
5300
|
|
|
Static linear pressure
|
N/cm
|
308
|
|
|
Vibration frequency
|
Hz
|
30/35
|
|
|
Nominal amplitude
|
mm
|
1.8/0.9
|
|
|
Exciting force
|
kN
|
280/190
|
|
|
Speed range
|
km/h
|
0-10.4
|
|
|
Wheelbase
|
mm
|
3010
|
|
|
Compaction width
|
mm
|
2130
|
|
|
Theoretical gradeability
|
%
|
45
|
|
|
Minimum turning radius
|
mm
|
6800
|
|
|
Vibratory drum diameter
|
mm
|
1523
|
|
|
Minimum ground clearance
|
mm
|
417
|
|
|
Engine
|
Rated speed
|
r/min
|
2200
|
|
Rated power
|
kW
|
93
|
|
|
Dimensions
|
mm
|
5940×2300×3150
|
|
