Quick Details
-
Valve body, valve cover::
-
GGG50
-
Connection length:
-
DIN3352-F4
-
Flange drilling:
-
EN1092-2
-
Working Pressure:
-
PN10 \ PN16
-
Hand wheel:
-
QT450
-
Spray:
-
Epoxy resin
-
Package:
-
Wooden box
Quick Details
-
Warranty:
-
18 Months
-
Place of Origin:
-
Anhui, China
-
Model Number:
-
DIN3352 F4 DN40--DN400
-
Valve body, valve cover::
-
GGG50
-
Connection length:
-
DIN3352-F4
-
Flange drilling:
-
EN1092-2
-
Working Pressure:
-
PN10 \ PN16
-
Hand wheel:
-
QT450
-
Spray:
-
Epoxy resin
-
Package:
-
Wooden box
|
Product parameter
|
|
|
|
Product name
|

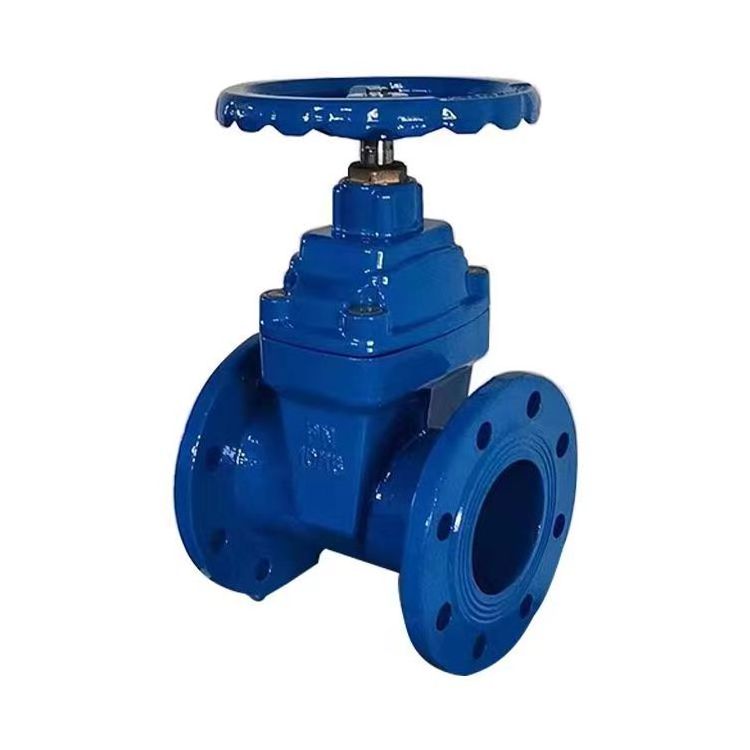

F4 Resilient Seated Gate valve
|
|
|
Model number
|
DIN3352 F4 DN125 DN40 DN50 DN65 DN80 DN100 DN150 DN200 DN250 DN300 DN350 DN400
|
|
|
Flange drilling
|
EN1092-2
|
|
|
Material
|
Brass\epdm\Q235\2Cr13\GGG50\GGG50+EPDM
|
|
|
Flange Drilling
|
EN1092-2
|
|
|
Thrust Nut
|
Brass
|
|
|
Body
|
GGG50
|
|
|
Wedge
|
GGG50+EPDM
|
|
|
Stem Nut
|
Brass
|
|
|
Stem
|
2Cr13
|
|
|
Seal Gasket
|
EPDM
|
|
|
Bonnet
|
GGG50
|
|
|
Handwheel
|
Q235
|
|
|
Anti-Dust Ring
|
EPDM
|
|
|
Locking Nut
|
Brass
|
|
|
Sealing Ring
|
EPDM
|
|
|
O-Ring
|
EPDM
|
|
|
Positioning Ring
|
Brass
|
|
|
Working Pressure
|
PN10 \ PN16
|
|
|
Weight
|
28KG
|
|
