Quick Details
-
Power supply:
-
5V/1A
-
Size:
-
176*67*21(L*W*H)
-
Material:
-
Metal Housing
-
Max baud rate:
-
3.2Gbps
-
Warranty:
-
2 years
-
Dimension (L x W x H):
-
178x66x20 (mm)
-
Product name:
-
HDMI Splitter 1x4
-
Resolution:
-
4Kx2K@30Hz
-
Package:
-
Color Box
Quick Details
-
Model Number:
-
HDSP4-V1.4
-
Brand Name:
-
SFX
-
Place of Origin:
-
China
-
Power supply:
-
5V/1A
-
Size:
-
176*67*21(L*W*H)
-
Material:
-
Metal Housing
-
Max baud rate:
-
3.2Gbps
-
Warranty:
-
2 years
-
Dimension (L x W x H):
-
178x66x20 (mm)
-
Product name:
-
HDMI Splitter 1x4
-
Resolution:
-
4Kx2K@30Hz
-
Package:
-
Color Box

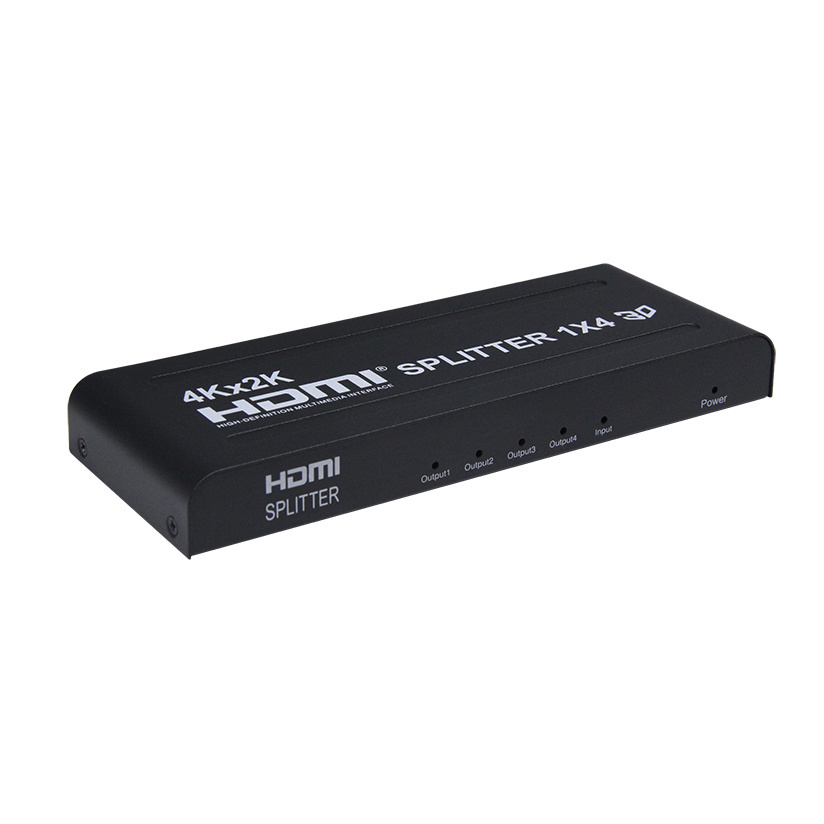

4k hdmi splitter 1x4
INTRODUCTION
The 1x4 HDMI Splitter use a single HDMI source,accessing to multiple HDMI sinks.The Splitter allows one HDMI devices to be split easily to four HDMI compatible monitors or projectors. The Splitter can also be placed at the end of a long HDMI cable to regenerate the HDMI signal.
Features
-----Support 3D video format
-----Support high resolution up to 3840X2160/30HZ
----- Support highest rate of 3.2 G and TMDS clock can be up to 320 MH z
-----Support 8/10/12 bit deep color
-----Support AWG26 HDMI standard cable: input up to 15 meters,output up to 25 meters.
(when the resolution is 4K, input up to 12 meters, output up to 15 meters.)
Support one single HDMI source,accessing to multiple HDMI sinks, the source can be DVD pla-yer, A/V receiver, set top box and ect.
-----5V/2A power adapter
Operating and Connecting :
1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the displays with 4 hdmi cables
3: connect 5V/2A power adapter to the splitter
Specification:
HDMI …………………………………………...……....…………………….. V1.4b
HDMI resolution ……………………………….. ……...…....... .……….. …up to 3840*2160/30Hz
Support video format ……………………………….....………….………..…8/10/12 bit deep color
Support audio format………………..……...….…DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………..…..………..……………………….320MHz
Max baud rate……………….…….………………….….....…………..……………………..3.2Gbps
Input cable distance...................….(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance……………………(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable
Max working current…………………………………………………..…...………………….....500mA
Power adapter format:………………….….input AC (50HZ, 60HZ) 100V-240V; output: DC5V/1A
Operating Temperature range…………………………..……….....…….…………… (-15 to +55℃)
Dimension (L x W x H)………………...............……………………………….…… 178x66x20 (mm)
Weight…….…..……………………………………………………….…….………………………220 g
Certification
our factory :
Question and Answer :
1.Q:Are you a factory or trading company?
A:We are a factory. So our price is EXW Price and Competitive.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Shenzhen City, GuangDong Province, China.All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:Quality is priority. We always attach great importance to quality controlling from the very beginning. We have 5-8 QC responsible for our quality
5. Q:What's about your delivery time?
A: For Samples. It lasts 2-7 days ; For mass order, It lasts for 15--30days
