Quick Details
-
Brand Name:
-
ENTE
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1640 x 1670 x 1920
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5
-
Product name:
-
3MB9817
-
After-sales Service Provided:
-
Online Support
-
Maximum diameter machined:
-
25-170mm
-
Maximum depth of machining:
-
320mm
-
N.W./G.W.:
-
1000/1200 kg
-
Packing:
-
Wooden case packing
Quick Details
-
Wheel Size(mm):
-
25-170
-
Year:
-
2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ENTE
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1640 x 1670 x 1920
-
Weight (KG):
-
1000
-
Power (kW):
-
1.5
-
Product name:
-
3MB9817
-
After-sales Service Provided:
-
Online Support
-
Maximum diameter machined:
-
25-170mm
-
Maximum depth of machining:
-
320mm
-
N.W./G.W.:
-
1000/1200 kg
-
Packing:
-
Wooden case packing
Product picture and size
Product Paramenters
3MB9817 vertical honing machine is mainly used for honing single line engine cylinders and
V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°and 45°.
2.The machine table is easily up and down manually 0-180mm.3. Reverse precision 0-0.4mm.
4.Select mesh-wire degree 0°- 90° or non-mesh-wire.
5.Reciprocating speed of up and down 0-30m/min.
6.The machine is reliable performance widely use honing, easy operation and high productivity.
7.Good rigidity, amount of cutting.
V-engine cylinders of automobiles motor cycles and tractors and also for other machine element holes.
1.The machine table can shift of the fixture change 0°, 30°and 45°.
2.The machine table is easily up and down manually 0-180mm.3. Reverse precision 0-0.4mm.
4.Select mesh-wire degree 0°- 90° or non-mesh-wire.
5.Reciprocating speed of up and down 0-30m/min.
6.The machine is reliable performance widely use honing, easy operation and high productivity.
7.Good rigidity, amount of cutting.
|
Model
|
3MB9817
|
|
Max diameter of hole honed
|
Φ25-Φ170 mm
|
|
Max depth of hole honed
|
320 mm
|
|
Spindle speed (4 steps)
|
120, 160, 225, 290 mm
|
|
Stork (3 steps)
|
35, 44, 65 s/min
|
|
Power of main motor
|
1.5 Kw
|
|
Power of cooling pump motor
|
0.125 Kw
|
|
Machine working inside cavity
dimensions (L x W)
|
1400 x 870 mm
|
|
Overall dimensions (L x W x H)
|
1640 x 1670 x 1920 mm
|
|
Packing dimensions (L x W x H)
|
1850 x 1850 x 2150 mm
|
|
N.W./G.W.
|
1000/1200 kg
|
|
No
|
Model
|
Range(Unit mm)
|
Sand Block Size
|
|
1
|
MFQ30
|
30-40
|
60×6×35
|
|
2
|
MFQ40
|
40-62
|
80×8×6
|
|
3
|
MFQ60
|
60-82
|
90×8×6
|
|
4
|
MFQ80
|
80-120
|
120×10×8
|
|
5
|
MFQ120
|
118-170
|
180×12×10
|
Product details

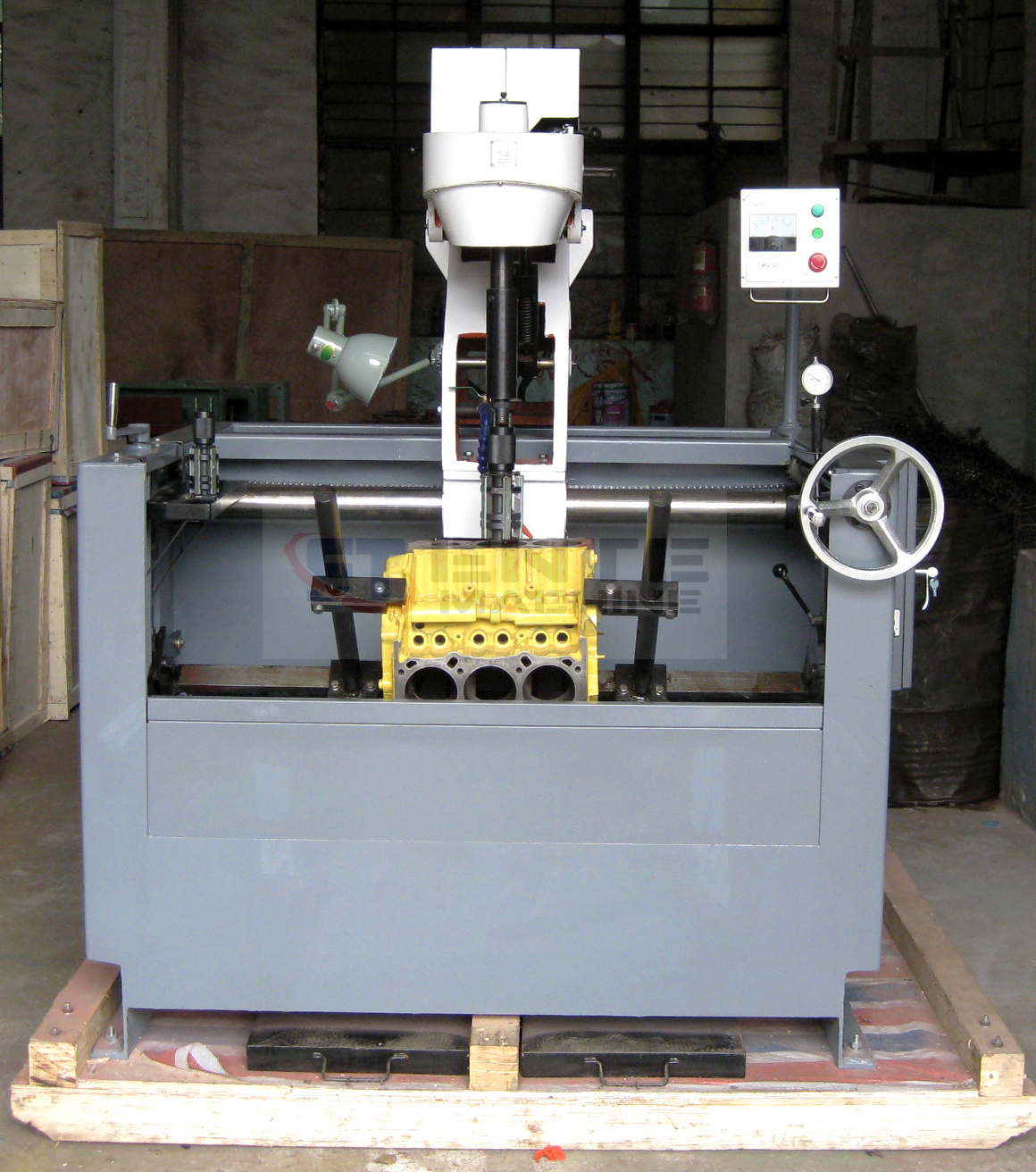

Product real map
