Quick Details
-
Material:
-
Metal
-
Warranty:
-
ONE years
-
Product name:
-
automatic car wash machine
-
Mounting Dimensions:
-
13000*4500*3500mm (L*W*H)
-
Water Supply:
-
DN25mm/Water flow
-
Voltage:
-
380V/50Hz
-
Equipment Moving Speed:
-
10.5 Meter/Min
-
Air Pressure:
-
0.75-0.9MPa/Airflow
-
Shampoo Consumption:
-
7ml/Car
-
Water Wax Consumption:
-
12ml/Car
-
Wash for:
-
Cars, Mini Bus, Pickup,SUV,MVP
-
Power Consumption:
-
0.5 Kwh/Car
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Cartsfun
-
Size:
-
11000*4000*3000MM (L*W*H)
-
Material:
-
Metal
-
Warranty:
-
ONE years
-
Product name:
-
automatic car wash machine
-
Mounting Dimensions:
-
13000*4500*3500mm (L*W*H)
-
Water Supply:
-
DN25mm/Water flow
-
Voltage:
-
380V/50Hz
-
Equipment Moving Speed:
-
10.5 Meter/Min
-
Air Pressure:
-
0.75-0.9MPa/Airflow
-
Shampoo Consumption:
-
7ml/Car
-
Water Wax Consumption:
-
12ml/Car
-
Wash for:
-
Cars, Mini Bus, Pickup,SUV,MVP
-
Power Consumption:
-
0.5 Kwh/Car
Products Description

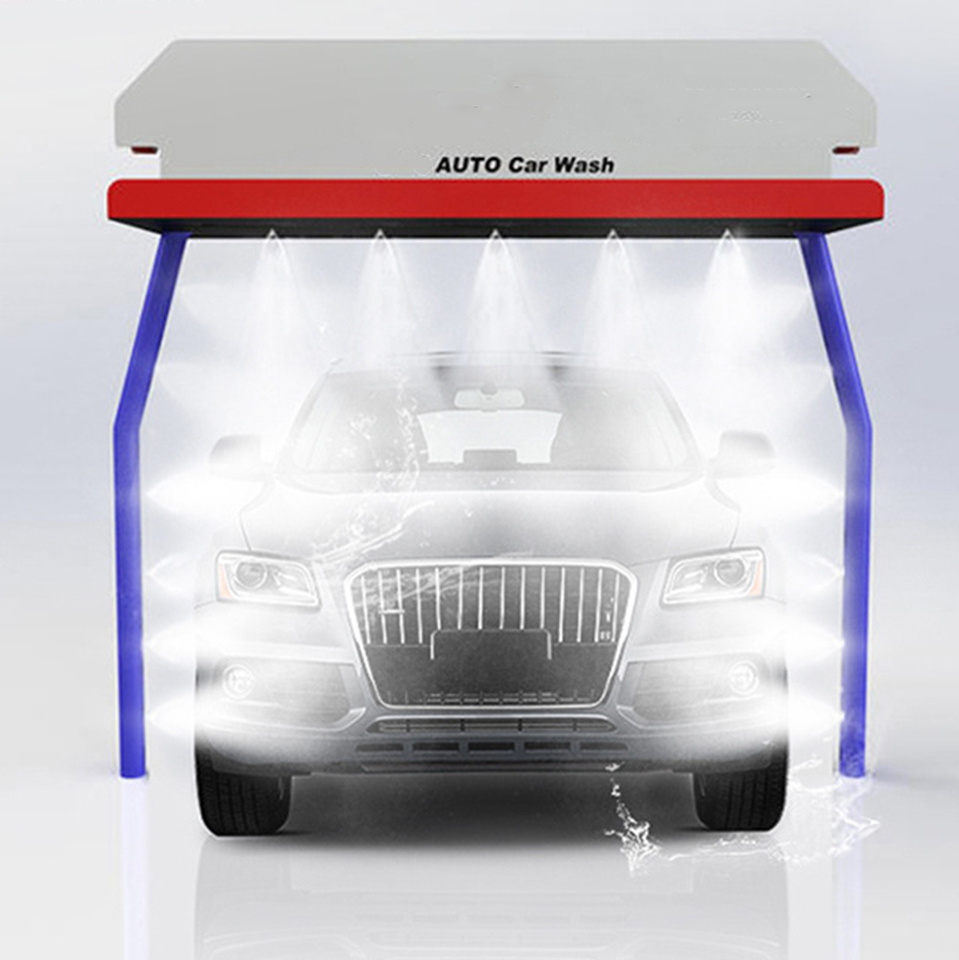

1.This car washing machine is suitable for the car, jeep, and minibus to high pressure water washing, wax and drying. Can identify the car model with photoelectric sensor controlled by CPU.
2.Introduce advanced technology from Italy, European type stream line design ,not only good look but also with reliable safety.
3. ZAM alloy or hot-dip galvanized frame keep the machine long life use.
4.Chinese foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times.
Inclinable side brush strengthens cleaning ability around the car.
5.The dovetail foam brush makes the car washing more quiet and clean.
6.Main components from world famous manufacturers ,high reliability ,long using life.
7.Fault Self-detect function.
8.Three function(Car wash, Inspection and management)to an operation panel
9.Automatic control and multi-function operation ,such as washing ,drying and wax.
10.Dried by four sets offans and car shape imitating dry system.
11.Long durable time: more than 10 years
2.Introduce advanced technology from Italy, European type stream line design ,not only good look but also with reliable safety.
3. ZAM alloy or hot-dip galvanized frame keep the machine long life use.
4.Chinese foam & super soft brushes, impossible to scratch lacquer, each set could be used for about 100,000 car-times.
Inclinable side brush strengthens cleaning ability around the car.
5.The dovetail foam brush makes the car washing more quiet and clean.
6.Main components from world famous manufacturers ,high reliability ,long using life.
7.Fault Self-detect function.
8.Three function(Car wash, Inspection and management)to an operation panel
9.Automatic control and multi-function operation ,such as washing ,drying and wax.
10.Dried by four sets offans and car shape imitating dry system.
11.Long durable time: more than 10 years
Product Paramenters
|
Machine Size :
|
11000*4000*3000MM (L*W*H)
|
|
Washing Car Size:
|
5300*2000*2200MM (L*W*H)
|
|
Wash for
|
Cars, mini bus, pickup,SUV,MVP
|
|
Washing Speed:
|
1-2 minutes/car
|
|
Water Consumption:
|
150-200 liter/car
|
|
Power Consumption:
|
0.5 kwh/car
|
|
Power Supply:
|
380 V, 50 HZ, 3 phases
|
|
Equipment Moving Speed:
|
10.5 meter/min
|
|
Install Size:
|
12500*4500*3500MM (L*W*H)
|
|
Foundation Size:
|
13000*4500*3500MM (L*W*H)
|
|
Contouring dryer
|
Four blowers, 12KW
|
|
Total Power:
|
30KW
|
|
Water supply
|
DN25mm/Waterflow rate≥80L/min
|
|
Air pressure
|
0.75-0.9Mpa/Airflow rate≥0.1m³/min
|
|
Shampoo consumption
|
7ml/Car
|
|
Water wax consumption
|
12ml/Car
|
Product Show
Details Images
1. Chassis and tires Blasting
Cars get dirty and muddy on muddy road or rainy seasons. The dirt may cause harm to car, so better to
clean them to protect car and make our driving safer. Special functions of chassis spraying and fan shaped tires & rims blasting, high pressure at 80kg sprays to clean dirt on chassis, two sides and tires.
clean them to protect car and make our driving safer. Special functions of chassis spraying and fan shaped tires & rims blasting, high pressure at 80kg sprays to clean dirt on chassis, two sides and tires.
2. 360 degree rotating arm to spray high pressure water and detergents
Rotating arm is designed as car body contour, 360 degree spraying water and detergents at average speed, pressure
and distance. Can cleaning car at maximum angle. Only 28 seconds for one round, water-saving more than 50%,
electricity-saving more than 60%.
and distance. Can cleaning car at maximum angle. Only 28 seconds for one round, water-saving more than 50%,
electricity-saving more than 60%.
3. 360 degree rotating arm spraying detergent
Rotating arm can spray water and kinds of detergents. Innovative foggy spraying, make the best of detergent, saving up
4. Forming
Forming is a further step to deal with dirt on car body, to reach good washing effect. No hand work rub to avoid even little
damage to car paint. Obvious visual washing effect to give clients strong impression.
damage to car paint. Obvious visual washing effect to give clients strong impression.
5. Liquid waxing
Liquid wax has two functions. First, to make car body look shinny and polishing; besides, as its characteristics of
water-repelling, benefiting good drying effect for function of drying.
water-repelling, benefiting good drying effect for function of drying.
