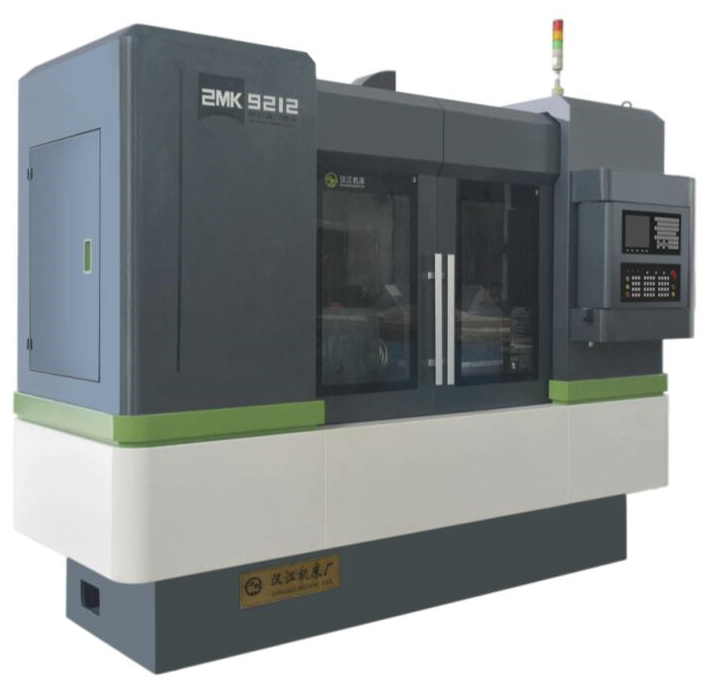

Steering oil port grinding machine

Description:

2MK9212 is mainly developed for precision grinding of metering edges, R flute,  etc. on hydraulic oil input sleeve(outer) of hydraulic power steering system of automobiles in mass production.

Features:

1.Modern industrial exterior.

2.Fanuc 0i-TF NC system equipped for easy operation.

2.1 NC(programable axes)

axis	function	type	remark
Y	vertical traverse of CBN wheel, for R flute grinding. Renishaw probe vertical motion.	linear	full closed-looped (with precise grating scale)
X	cross–feed of wheelhead, for metering edge grinding.	linear	full closed-looped (with precise grating scale)
C	rotation of workpiece.	circular	full closed-looped (with precise grating scale)
Z	working table longitudinal traverse.	linear	semi closed-looped

3. Dual grinding heads: one for cylindrical grinding(400 mm diameter corundum grinding wheel), to grind the metering edges; one for axial grinding(20mm diameter CBN grinding wheel), to grind the R flute ; Metering edges and R flute grinding can be achieved in one set-up.

metering edges grinding

R flute grinding

4. Imported high precision probing system equipped for quick alignment.

3. Diamond pen for dressing 400 mm corundum grinding wheel .

4.Clamping with centers;

5. Imported oil mist separator and full closed machine cover equipped for clean working enviroment.

NOTE:Brands listed above for display only. Copyright of the brand belong to the trademark owner.

Main parameters:

>Max. diametor to be ground: 120mm
>Max. length to be ground: 250mm
>Central height: 120mm
>Max. travel for oxternal grinding head (Axis X): 200mm
>Max. travel of form grinding head (Axis Y): 150mm
>Worktable travel (Axis 2): 440mm
> Grinding wheel velocity(abrasive wheel): 40m/s
>Grinding wheel velocity(formed wheel): 62m/s (wheel diameter :20mm)
>Wheel size
Dlameter: 400mm
Width: 15,20mm

Working accuracy:

metering edges dimension : + / - 0.08mm

Angle of metering edges: + / - 0.5°

Across flats size of metering edges: + / - 0.003mm

Roughness of metering edges:Ra≤0.8μ m

Width of oil groove: + / - 0.03mm

Position of oil groove: 0.1

Symmetry of oil groove: 0.03mm

Roughness of oil groove:Ra≤1.6μ m

Main Machine and accessories are packed in one(more than one) wooden cases as shown. The wooden case is made of fumigated woods, and the whole structure is strong fo land and ocean transportation.

Shipping taken care by the professional  transportation team.
