Quick Details
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
2300
-
Product name:
-
1300*2500mm furniture door making cutting linear atc wood cnc router
-
Working area:
-
1300x2500mm, 4*8 feet
-
Tool magazine:
-
8pcs, 10pcs 12pcs linear tool change magazine
-
Control system:
-
Taiwan Syntec Control System, Weihong NK260
-
Spindle:
-
HQD 9kw air cooling ATC spindle
-
Transmission:
-
Taiwan HIWIN 30mm guide rails, Taiwan TBI Ball Screw
-
Drive motor:
-
Leadshine servo 850w, or Japanse Yaskawa servo motor driver
-
Table:
-
vacuum adsorption + T-slot
-
Inverter:
-
Fuling 11kw, Delta Inverter
-
Other parts:
-
positioning cyliner, 5.5kw 2 bags dust collection, 7.5kw vacuum pump
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GoodCut
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
1300*2500*250mm
-
Power (kW):
-
5.5
-
Weight (KG):
-
2300
-
Product name:
-
1300*2500mm furniture door making cutting linear atc wood cnc router
-
Working area:
-
1300x2500mm, 4*8 feet
-
Tool magazine:
-
8pcs, 10pcs 12pcs linear tool change magazine
-
Control system:
-
Taiwan Syntec Control System, Weihong NK260
-
Spindle:
-
HQD 9kw air cooling ATC spindle
-
Transmission:
-
Taiwan HIWIN 30mm guide rails, Taiwan TBI Ball Screw
-
Drive motor:
-
Leadshine servo 850w, or Japanse Yaskawa servo motor driver
-
Table:
-
vacuum adsorption + T-slot
-
Inverter:
-
Fuling 11kw, Delta Inverter
-
Other parts:
-
positioning cyliner, 5.5kw 2 bags dust collection, 7.5kw vacuum pump

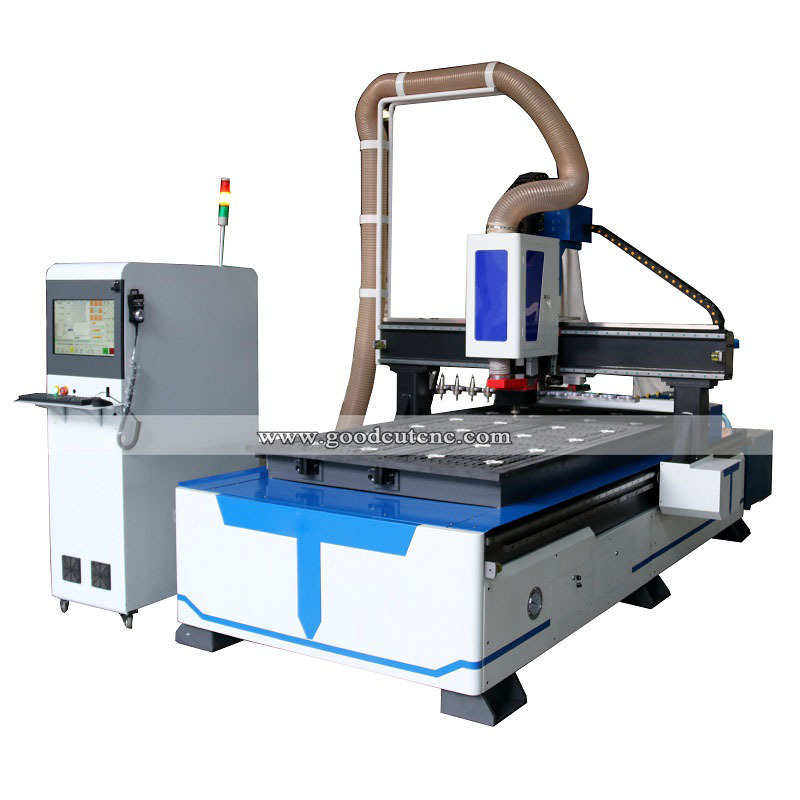

1300*2500mm furniture door making cutting linear atc wood cnc router
1) Ncstudio control system: Popular and easy operation, with USB port to transfer program;
2) China Local Brands air-cooling ATC spindle HQD : Long working life, easy maintenance;
3) Taiwan Delta Servo Driving System : With highly control precision and high speed, reliable and stable;
4) Taiwan Hiwin Guide 30mm and Block : Guaranteed genuine rail with good quality,realizing smooth movement;
5) Taiwan TBI ball screw : linear motion with high precision and and in high speed
6) Helical rack and pinion : quiet running, greater accuracy, smoother cutting and allows greater accelaration and feeding rates, longer lifetime because of smaller wearing force.
7) Taiwan Delta Inverter : Guarantee the variety working speed and protect the spindle very well;
8) Linear tool magazine , with Tool holders x 6pcs and Toolholder fork x 8 pcs, effectively improve working efficiency.
Technical parameters:
|
Description |
Parameter |
|
Tool magazine |
Linear or Carrousel type auto tool changer with 12 tools storage |
|
X,Y,Z Working Area |
1300x2500x200mm |
|
Table Size |
1300*2500mm |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/300mm |
|
X,Y,Z Repositioning Accuracy |
±0.03mm |
|
Table Surface |
Vacuum and T-slot working table, 6 zones; 2 pieces roller in the front of table |
|
Structure |
Industrial class square tube strong structure, heavy duty 8-10mm |
|
X, Y Structure |
Rack and Pinion Drive, Sweden ABBA #25 Linear Square Rail; Dust cover for Y axis |
|
Z Structure |
Sweden ABBA #30 Linear Square Rail and TBI Ball Screw |
|
Spindle |
Rotary spindle, 9kw Italy HSD ATC air cooling spindle, Swing -90°to +90° ISO30 tool holder |
|
Spindle Speed |
0-24000RPM |
|
Drive Motors |
850wJapan YASKAWA servo motors and 1kw drivers |
|
Inverter |
11kw Taiwan DELTA inverter |
|
Working Voltage |
220v, 3phase, 60HZ (or customized) |
|
Command Language |
G Code |
|
Operating System |
Taiwan SYNTEC 21MA 4 axis control System with handle |
|
Computer Interface |
USB |
|
Collet |
ISO30 |
|
X,Y Resolution |
<0.01mm |
|
Software |
UG |
|
Running Environment Temperature |
0 - 45 Centigrade |
|
Relative Humidity |
30% - 75% |
|
Lubrication system |
Automatic lubrication system |
|
Tool sensor |
Automatic tool sensor calibration |
|
Position cylinder |
Auto Position cylinder |
|
Optional |
Japan Shimpo reducer; 4kw vacuum pump; Automatic oil sprayer cooling system; new type 1.5kw double pocket dust collector; |
Machine details of 1300*2500mm furniture door making cutting linear atc wood cnc router:
1.machine Structure
Our ATC CNC Router machines are manufactured from high quality steel which has been treated to with stand even the toughest of workshops. All frame work and gantry have been precisely engineered to create a robust and solid base for each machine.
9.0kw HSD ATC spindle and carousel tool changing magazine, the machine can change tools automatically during the work. Working area is1300*2500*250mm, widely used in furniture industry.
HSD or HQD 9KW(12 HP ) high frequency automatic tool changer spindle with 8-12 tool linear magazine
Except the spindle, we use high quality components on this machine like Japanese Yaskawa servo motors and servo drivers, Taiwan Hiwin linear rails 30mm and TBI ball screw, Taiwan Syntec 6MD control system and so on.
Maintenance free brushless Japan Yaskawa AC servo motors and drives
Rigid vacuum table with grids and T-slots maximizes the vacuum hold-down power and also enables you to clamp the workpiece in
place.
Our advantages of 1300*2500mm furniture door making cutting linear atc wood cnc router :
fast speed cnc router, equipped with round or carrousel type auto tool changer. This kind of Multi-use cnc cutting center (furniture cnc router for side punching) is not only very suitable for wooden furniture cabinet, but also processing foam mould. It can also finish side punching work for door hole, because that rotary spindle can rotate 180 degree.
Application for 1300*2500mm furniture door making cutting linear atc wood cnc router:
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE, PEHD and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Packaging Details:
1.Outside package: Standard marine export plywood case.
2. Inner package: Three layers in total; EPE pearl cotton film+PE stretchy film.
Improved package, much more strong and environmental protection.
We can also make package according to your requests.
Delivery Detail: Shipped in 25-30 working days after payment.
