Quick Details
-
Lock Size:
-
200L*25W*38H(mm)
-
Strike:
-
90L x 23W x 2.5H(mm)
-
Power Supply:
-
DC12V/1A(24V optional)
-
Suitable for:
-
180 degrees door
-
Time Delay:
-
0, 3, 6, 9 seconds
-
Signal Output:
-
Door Sensor & Lock position sensor
-
Start and working current:
-
950mA/80mA
-
Weight:
-
1.2kg
-
Mechanical keys:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VIANS or OEM
-
Item:
-
Adjustable electric drop bolt lock
-
Lock Size:
-
200L*25W*38H(mm)
-
Strike:
-
90L x 23W x 2.5H(mm)
-
Power Supply:
-
DC12V/1A(24V optional)
-
Suitable for:
-
180 degrees door
-
Time Delay:
-
0, 3, 6, 9 seconds
-
Signal Output:
-
Door Sensor & Lock position sensor
-
Start and working current:
-
950mA/80mA
-
Weight:
-
1.2kg
-
Mechanical keys:
-
Yes

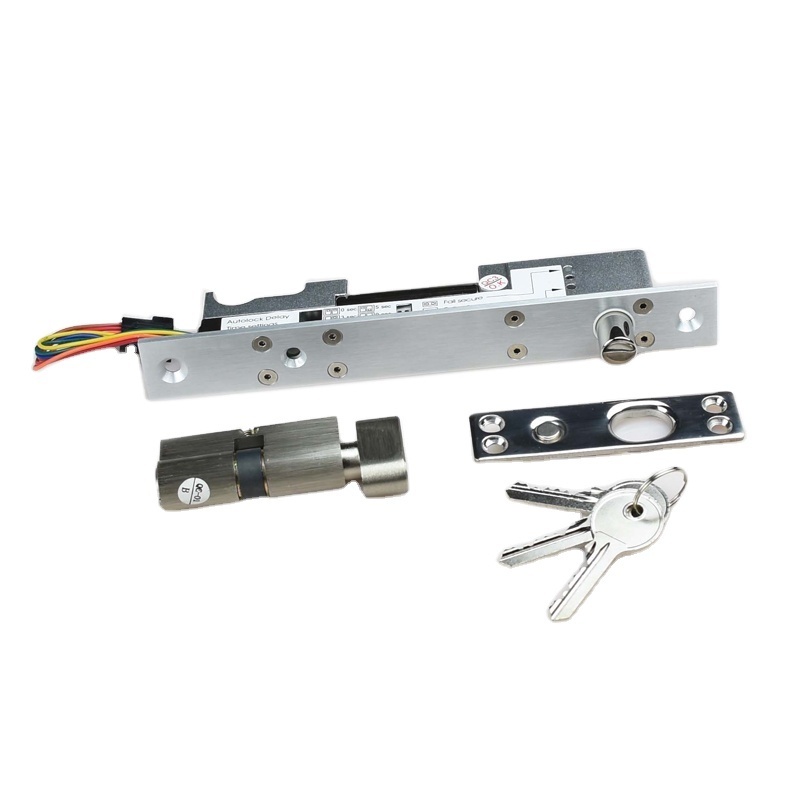

VI-810 ST Adjustable Fail Safe and Fail Secure
Electric Drop Bolt Lock With Keys
An Electric Bolt Lock is a motor or solenoid actuated symmetrical deadbolt mechanism, used for specific applications where Electric Strikes and Electromagnetic Locks cannot be used. Such as double action 180 degree swing through or sliding doors. In many cases, Electric Drop Bolt are used as additional or secondary locking device. Door Lock,The locking status and door status of the drop bolt can be remotely monitored.
Not only this model of product could be used for wooden door, glass door, metal door, fireproof door, sliding door, but also it could be used for a narrow frame door. So this model could really help a lot , when it comes to the situation you need to install locks on a narrow fram door. You could also use bracket to do that so, but extra bracket would increase the cost. Regarding the function, it is also equiped with Timer and signal feedback.
Other Feature :
5 years warranty.( we are the only could provide this)
Suitable for narrow frame door
CE/FCC/RoHS approved.
Embedded installation
Security Mode: Fail Safe and Fail Secure Adjustable
Operating Humidity: 0~90% (non-condensing)
Safety function: MOV surge protection
Patent Designed: low temperature
Opening Mode:180 degree swinging door
Solid Bolt: Polishing housing, 2000Kg Holding Force
Suitable For: Wooden Door, Glass Door, Metal Door
Special Designed: Tested to 700 000 cycles
Weight: 1.1kg
Warranty : 3 years
