Quick Details
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
TH-280SK
-
Dimensions(L*W*H):
-
900*750*1900mm
-
Weight:
-
230 KG
-
Model No:
-
TH-280SK
-
Printing color:
-
single color/ multicolor
-
roller size:
-
250*280mm
-
printing speed:
-
150-200 PCS/H
-
stamping temperature:
-
0~ 300℃
-
Maximum workpiece height:
-
50mm
-
Wattage:
-
4100W
-
stamping pressure:
-
≤2000kgf
-
Dimension:
-
900*750*1900mm
-
Certification:
-
CE
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Letterpress
-
Color & Page:
-
Multicolor
-
Voltage:
-
110V/220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LC
-
Model Number:
-
TH-280SK
-
Dimensions(L*W*H):
-
900*750*1900mm
-
Weight:
-
230 KG
-
Model No:
-
TH-280SK
-
Printing color:
-
single color/ multicolor
-
roller size:
-
250*280mm
-
printing speed:
-
150-200 PCS/H
-
stamping temperature:
-
0~ 300℃
-
Maximum workpiece height:
-
50mm
-
Wattage:
-
4100W
-
stamping pressure:
-
≤2000kgf
-
Dimension:
-
900*750*1900mm
-
Certification:
-
CE
Product Description

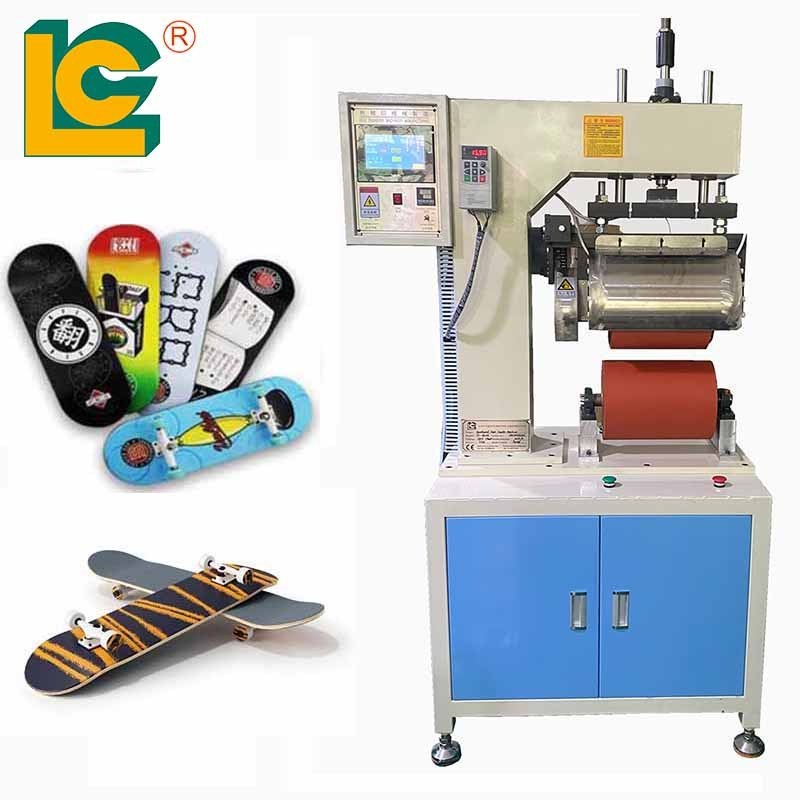

Special transfer printer for skateboard
Specification
|
Model No
|
TH-280SK
|
Maximum workpiece height
|
50mm
|
|
Printing color
|
single color/ multicolor
|
stamping temperature
|
0- 300℃
|
|
printing speed
|
150-200 PCS/H
|
stamping pressure
|
≤2000kgf
|
|
roller size
|
￠250*280mm
|
Wattage
|
4100W
|
Advantage
1. PLC programmable controller, high sensitivity, touch screen operation interface, easy to operate.
2 Adopt 2P hydraulic pressure cylinder to press down, with high transfer pressure;
3. Adopt double straight elbow hydraulic cylinder lifting type, the speed is relatively fast;The machine runs more stably.
4. The oil cylinder drives up and down with an adjustable stroke of 75MM;
5. Temperature and transfer time can be adjusted;High precision, excellent stability of the whole machine;
6. The height of hot stamping head can be adjusted;
7. Heat pipe adopts single heat conduction in series, so that the hot stamping head temperature is uniform.
2 Adopt 2P hydraulic pressure cylinder to press down, with high transfer pressure;
3. Adopt double straight elbow hydraulic cylinder lifting type, the speed is relatively fast;The machine runs more stably.
4. The oil cylinder drives up and down with an adjustable stroke of 75MM;
5. Temperature and transfer time can be adjusted;High precision, excellent stability of the whole machine;
6. The height of hot stamping head can be adjusted;
7. Heat pipe adopts single heat conduction in series, so that the hot stamping head temperature is uniform.
Application
More sample pictures and video of the machine , please contact with us.
