● Fit for desk, cabinet, window or safe box high secure and more easy to operate connect to a stable power supply and which will
open when it is energized.
● Suitable for File Cabinet, Display Cabinet.
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Aluminum Alloy
-
Current Draw:
-
DC12V/600mA
-
Voltage::
-
DC 24V
-
Lock Status::
-
NO/NC/COM/+/-
-
Extension length:
-
10mm close
-
Fail Secure:
-
Locked when power off
-
Lock Size:
-
52.5Lx27Wx28H(mm) / 2.07Lx1.06Wx1.10H(in)
-
Keywords:
-
Electric Door Locks, door magnetic lock, Electric Sliding Door Locks
-
Suit For:
-
File Cabinet, Display Cabinet
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Product name::
-
12V to 24V Mini Hanging Hidden Electromagnetic Concealed Door Lock
-
Material:
-
Aluminum Alloy
-
Current Draw:
-
DC12V/600mA
-
Voltage::
-
DC 24V
-
Lock Status::
-
NO/NC/COM/+/-
-
Extension length:
-
10mm close
-
Fail Secure:
-
Locked when power off
-
Lock Size:
-
52.5Lx27Wx28H(mm) / 2.07Lx1.06Wx1.10H(in)
-
Keywords:
-
Electric Door Locks, door magnetic lock, Electric Sliding Door Locks
-
Suit For:
-
File Cabinet, Display Cabinet
Product Description

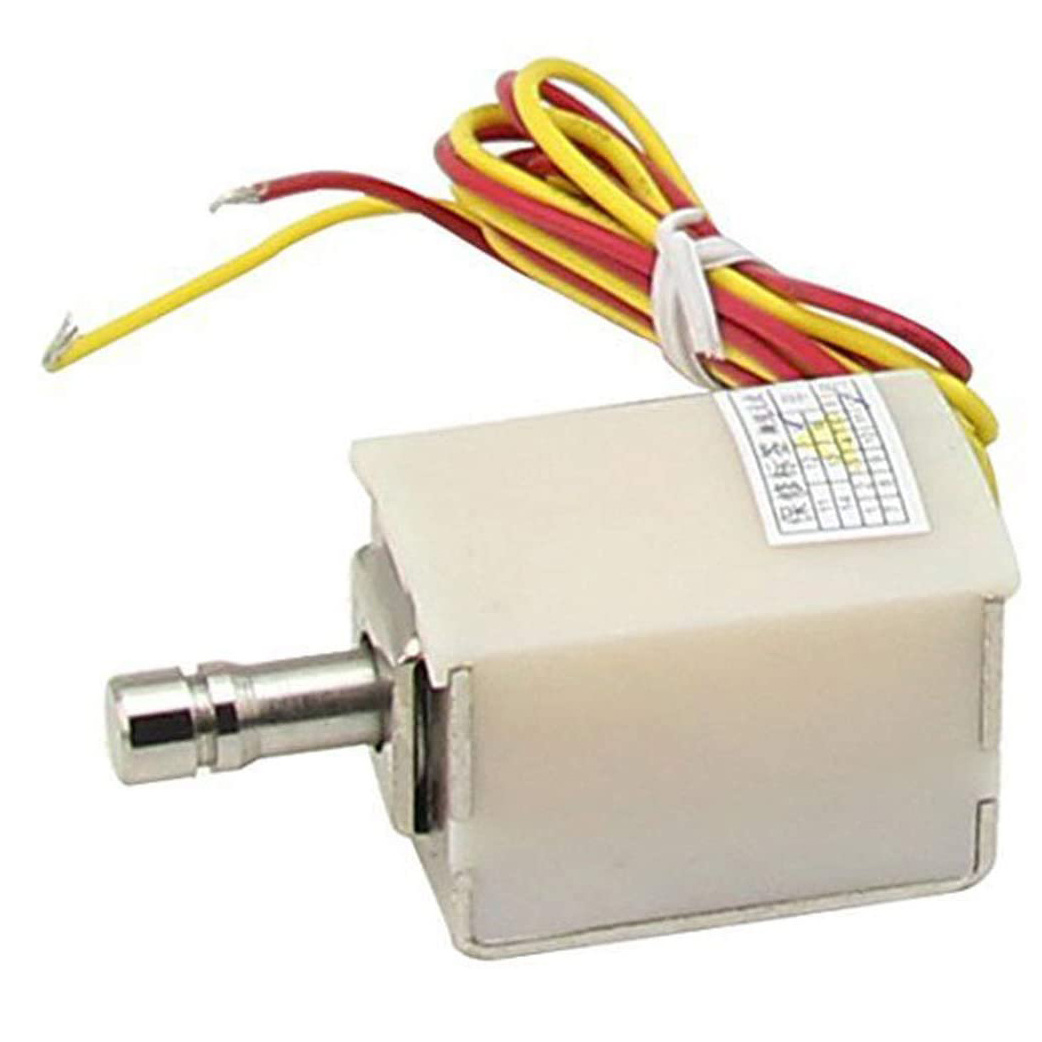

DC12V File Display Cabinet Equipment Drawer Plug Mortise Electric Lock
open when it is energized.
● Suitable for File Cabinet, Display Cabinet.
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Lock Size :
|
114Lx35Wx23H(mm)
|
|
|
||
|
Armature plate:
|
75Lx31Wx10H
|
|
|
||
|
Holding Force :
|
60KG(120LBS)
|
|
|
||
|
Input Voltage :
|
24VDC
|
|
|
||
|
Suitable for door:
|
File Cabinet, Display Cabinet
|
|
|
||
|
Singal Output :
|
Lock singal Status NO/NC/COM/+/-
|
|
|
||
|
Feature:
|
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
|
|
|
||
|
LED:
|
Red shows unlocked, Green shows locked
|
|
|
||
|
Weight:
|
1kg
|
|
|
||
|
Certification:
|
CE
|
|
|
||
Product Advanatge
- Collinear Load Test 60KG
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12V DC when Finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material,Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force,Dual Insulative Housing.
- CE Certificate by European Union,MA Certificate by China Public Security Office
Detailed Images , OEM/ODM available
Our lock is with LED light to show the working statue , light is
green when it locked , Red when unlocked
. The light statue can be changed .
ACM-Y280 is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .
Quality Warranty
- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
Instalation Diagram
Packing & Delivery
Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.
Packaging
Magnetic Lock packaging: 1unit per box, 10pcs per carton,
Carton size : 26*26*10cm , Gross Weight :46kg. 50 cartons per pallet
FAQ
1. what is your MOQ ?
Usually our MOQ is 500 pcs. But we accept lower quantity for your trial order.
2. Can we provide sample ?
Sure. We usually provide existing sample for free. But a lttle sample charge for custom designs. Sample charge is refundable when order is up to certain quantity.
3.How long is the sample LEAD TIME?
For existing samples, it takes 1-2 days. They are free. If you want your own designs, it takes 3-7 days, subject to your designs whether they need new printing screen, etc.
4. How long is the production lead time?
It takes 10-15 days for MOQ.
5. How much is the freight charge?
To save cost for you and in order that you can get goods earlier, we suggest to deliver by express for small quantity.For large quantity, we suggest to deliver by sea.
6. What format of the file do you need if I want my own design?
We have our own professional designers. So you can provide JPG, Al, CDR or PDF, etc. We will draw artwork for mold or printing screen for you.
