Quick Details
-
Place of Origin:
-
Shandong, China
-
Axle Brand:
-
3 Pieces 13t Fuwa (BPW Optional)
-
Tyre:
-
11.00R20, 12+1
-
Tool Box:
-
1pcs
-
Suspension:
-
Tandem type
-
Main Beam:
-
500/14/6/16
-
Side Beam:
-
16 channel steel.
-
Min. ground clearance:
-
360
-
Orginral:
-
China
-
King pin:
-
2"or3.5"
-
Color:
-
Optional
Quick Details
-
Max Payload:
-
60T
-
Brand Name:
-
GJ
-
Size:
-
12450*2500*1490mm
-
Place of Origin:
-
Shandong, China
-
Axle Brand:
-
3 Pieces 13t Fuwa (BPW Optional)
-
Tyre:
-
11.00R20, 12+1
-
Tool Box:
-
1pcs
-
Suspension:
-
Tandem type
-
Main Beam:
-
500/14/6/16
-
Side Beam:
-
16 channel steel.
-
Min. ground clearance:
-
360
-
Orginral:
-
China
-
King pin:
-
2"or3.5"
-
Color:
-
Optional
Products Description
Shandong Champion Trade Co.,Ltd. is one subsidiary of Champion vehicle group.Champion Vehicle Group has
more than 20 years
of experience in trailer production, with main products including oil tank semi trailer, powder material semi trailer, dump semi trailer, flatbed semi trailers, lowbed semi trailer,sidewall semi trailer etc.Our factory has passed
ISO9001
quality system certification. Our cooperation can be
ODM or OEM
mode.
please contact us.
Product Paramenters
|
Trailer Model
|

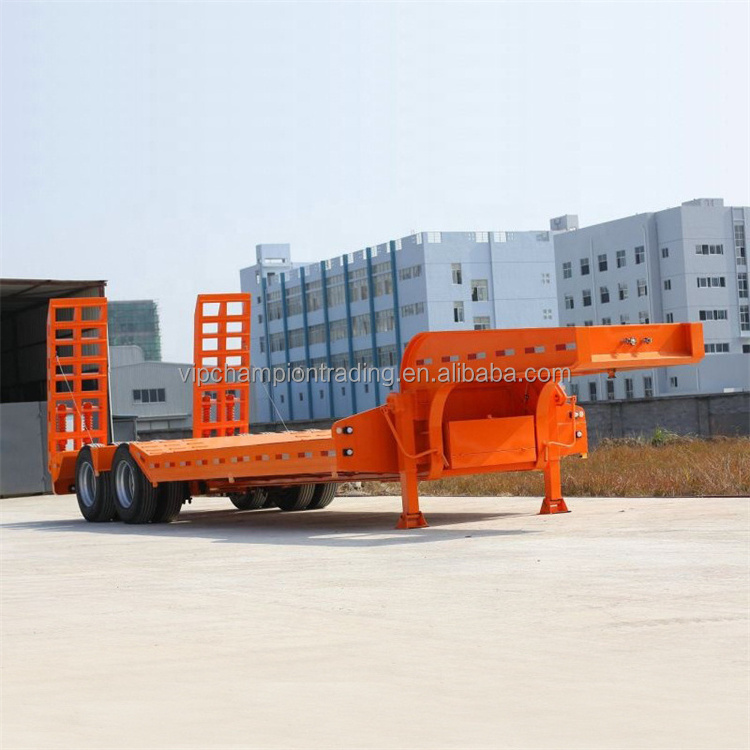

3 Axle Low bed Semi Trailer
|
|
Dimension(Lx W x H)(mm)
|
13000 x 3000 x 1750
|
|
Curb Weight(KG)
|
8000
|
|
Loading Weight( KG)
|
60000
|
|
Axle Brand
|
13TON Axle FUWA
|
|
Axle Number
|
3
|
|
Suspension system
|
Mechanical suspension
|
|
Ladder
|
mechanical
|
|
Chassis Frame
|
The height of the beam is 500mm, upper plate is 14mm, down plate is 16mm, middle plate is 8mm. Q345
|
|
Tire Specification and quantity
|
12R22.5 12units
|
|
Traction Pin
|
50# or 90#
|
|
Spare Wheel Bracket
|
2 pieces
|
|
Tool Box
|
1 Unit
|
|
Landing Leg
|
28 Ton
|
|
Brake system
|
Dual Line braking system
|
|
Brake air chamber
|
6 big air chambers
|
|
Electrical system
|
24V,7 Pole plug
|
|
|
Tail lamp with turn signal, brake light & reflector, side lamp etc.
|
|
|
One set 6-core standard Cable.
|
|
Colour
|
According to clients’ requirement
|
|
Packing
|
Polish with wax before shipping
|
|
Delivery way
|
Transfer to China port, and carry by bulk ship, the freight cost depends on the volume.
|
