Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GUOTAI
-
Model Number:
-
GFQ-600-1200
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2900*1300*1500mm
-
Weight:
-
700 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
bag:
-
shopping bag ,vest bag , flat bag
-
material:
-
HDPE;LDPE;PP;PVC
-
Brand:
-
GUOTAI
-
Certification:
-
CE;ISO9001
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
GUOTAI
-
Model Number:
-
GFQ-600-1200
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
2900*1300*1500mm
-
Weight:
-
700 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
bag:
-
shopping bag ,vest bag , flat bag
-
material:
-
HDPE;LDPE;PP;PVC
-
Brand:
-
GUOTAI
-
Certification:
-
CE;ISO9001
Banner
Product Description

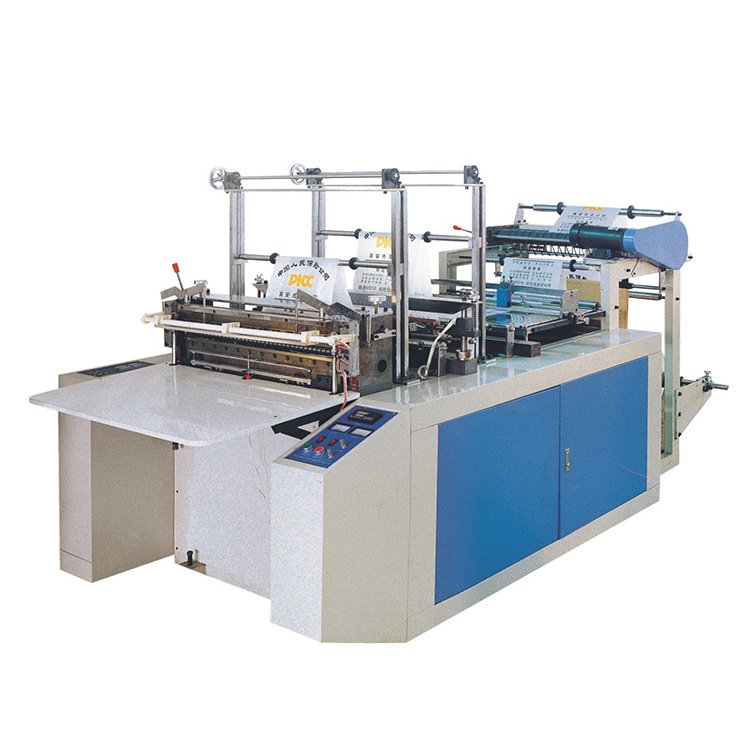

It is used for producing vest bags and flat-opening bags with printing. The main motor adopts frequency conversion motor to save more electricity and regulate speed
more freely. The color code tracker with good performance makes the sealing and cutting length more accurately and the error smaller .it adopts advanced computer to adjust length more freely and accurately.
more freely. The color code tracker with good performance makes the sealing and cutting length more accurately and the error smaller .it adopts advanced computer to adjust length more freely and accurately.
|
Model
|
600
|
700
|
800
|
1000
|
1200
|
|
Max.Width of bag-making(mm)
|
600
|
700
|
800
|
980
|
1150
|
|
Max.Length of bag-making(mm)
|
1000
|
1000
|
1000
|
1200
|
2000
|
|
Speed of bag-making(pc/min)
|
30-130
|
30-130
|
30-130
|
30-120
|
30-100
|
|
Power of motor(kw)
|
1
|
1.1
|
1.5
|
2.2
|
3
|
|
Weight(kg)
|
700
|
750
|
800
|
900
|
1000
|
|
External dimension(LXWXH)mm
|
2900X1300X1500
|
2900X1400X1600
|
2900X1500X1600
|
3200X1800X1700
|
3400X1900X1800
|
