Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
13KW, 380V,50HZ
-
Dimension(L*W*H):
-
2700*1450*1900mm, 2700*1450*1900mm
-
Weight:
-
3700Kg, 3700Kg
-
Warranty:
-
1 Year
-
Cup size:
-
16-40oz
-
Capacity:
-
75-85pcs/min
-
Total Power:
-
13KW
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUIZE
-
Model Number:
-
RUIZE-1200A
-
Voltage:
-
380V 50HZ
-
Power:
-
13KW, 380V,50HZ
-
Dimension(L*W*H):
-
2700*1450*1900mm, 2700*1450*1900mm
-
Weight:
-
3700Kg, 3700Kg
-
Warranty:
-
1 Year
-
Cup size:
-
16-40oz
-
Capacity:
-
75-85pcs/min
-
Total Power:
-
13KW
Summary

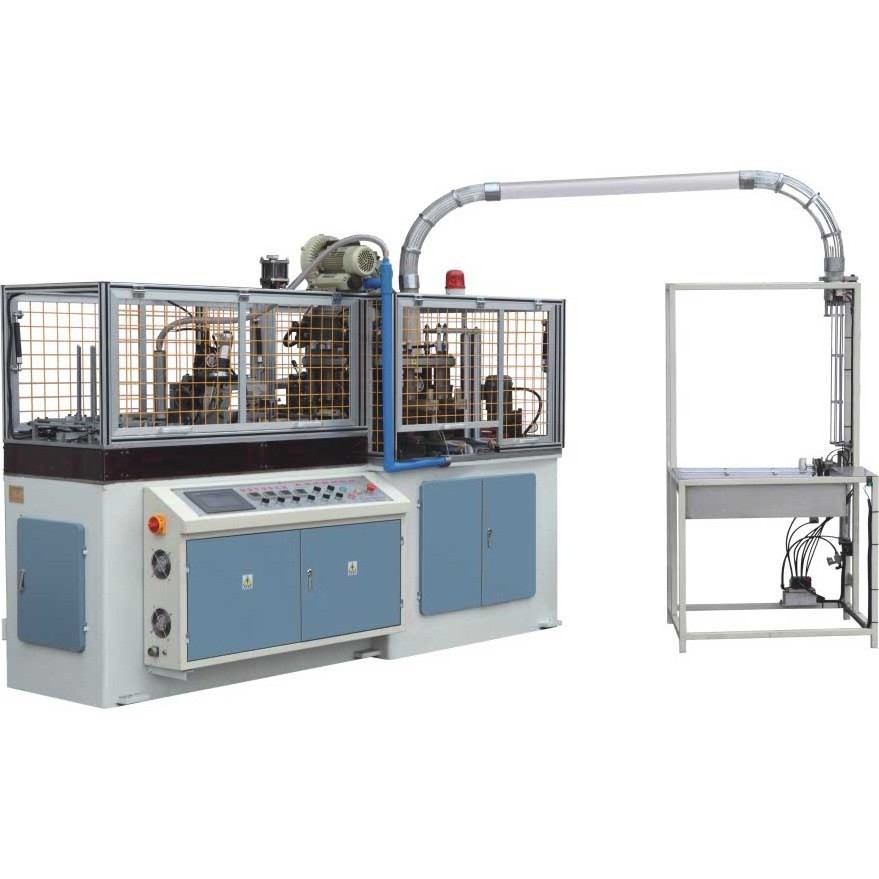

RUIZE-1200A Medium Speed Paper Bowl Forming Machine is a double-turnplate paper bowl forming machine.It is designed with advanced imported cam,PLC control system.It offers high precision indexing and positioning as a result of its good quality and good inertia-resistance capability.
By adopting photoelectric failure-detection system and automatic cup collecting system.It simplifies paper cup forming process.This machine can finish paper feeding,sealing,cup-bottom feeding,heating,knurling,cup-mouth curling,cup-collecting efficiently.It is especially suitable for marking paper bowls with a height of 50-120mm.
Main Technical Parameter
|
Cup size |
16-40oz |
|
Capacity |
75-85pcs/min |
|
Power |
380V,50HZ |
|
Air Consumption |
0.15m 3 /min;4Kg/cm 2 |
|
Weight |
3700Kg |
|
Total Power |
13KW |
|
Dimension(L*W*H) |
2700*1450*1900mm |
