Quick Details
-
Rated Voltage:
-
24kV, 132kV
-
Tensile Strength:
-
100~160kN, 100~160kN
-
Color:
-
Red,Grey Or Customized
-
Feature:
-
good hydrophobicity,ageing resistance
-
Keywords:
-
132kv composite insulator
-
Advantage:
-
tracking resistance and electrical erosion resistance
-
Size:
-
Customized Size
-
Sample:
-
Sample Avaliable
-
Creepage Distance:
-
390mm~1200mm
Quick Details
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
JS
-
Model Number:
-
132kV160-1481-BE
-
Rated Voltage:
-
24kV, 132kV
-
Tensile Strength:
-
100~160kN, 100~160kN
-
Color:
-
Red,Grey Or Customized
-
Feature:
-
good hydrophobicity,ageing resistance
-
Keywords:
-
132kv composite insulator
-
Advantage:
-
tracking resistance and electrical erosion resistance
-
Size:
-
Customized Size
-
Sample:
-
Sample Avaliable
-
Creepage Distance:
-
390mm~1200mm

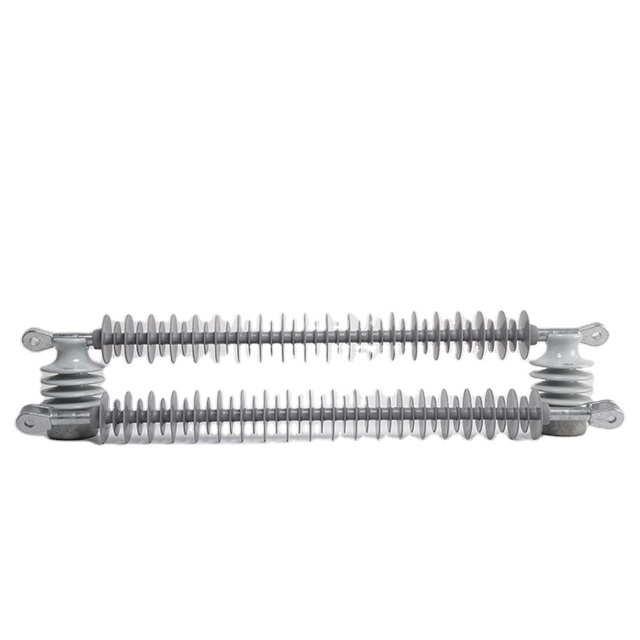

High voltage 132kv Composite suspension Insulators
Advantage: 1.T racking resistance
2.Electrical erosion resistance
Feature: 1.Good hydrophobicity
2.Ggeing resistance
Test Report: 1.Type test report according IEC
2. Ageing test report for 5000 hours
Our services :
1) Factory direct prize
2) ANSI BS GB IEC DIN AS standard
3) Free samples
4) Timely delivery
5) Customer design
6) Timely reply and offer
Technical Specifications
|
No. |
Description |
Rated Voltage (kV) |
Specified Mechanical Tensile Load (kN) |
Coupling Size |
Section Height H (mm) |
Minimum Nominal Arcing Distance h (mm) |
Minimum Nominal Creepage Distance L (mm) |
|
1 |
FXBW-11/70 |
11 |
70 |
16 |
400±5 |
230 |
630 |
|
2 |
FXBW-11/100 |
11 |
100 |
16 |
400±5 |
228 |
630 |
|
3 |
FXBW-20/70 |
20 |
70 |
16 |
385±10 |
245 |
660 |
|
4 |
FXBW3-33/70 |
33 |
70 |
16 |
610±15 |
445 |
1100 |
|
5 |
FXBW4-33/70 |
33 |
70 |
16 |
650±15 |
484 |
1140 |
|
6 |
FXBW-33/100(120) |
33 |
100(120) |
16 |
650±15 |
454 |
1285 |
|
7 |
FXBW3-66/70 |
66 |
70 |
16 |
870±15 |
710 |
2100 |
|
8 |
FXBW4-66/70 |
66 |
70 |
16 |
940±15 |
750 |
2170 |
|
9 |
FXBW-66/100(120) |
66 |
100(120) |
16 |
940±15 |
750 |
2420 |
|
10 |
FXBW3-110/70 |
110 |
70 |
16 |
1180±15 |
1024 |
3310 |
|
11 |
FXBW4-110/70 |
110 |
70 |
16 |
1240±15 |
1084 |
3370 |
|
12 |
FXBW3-110/100(120) |
110 |
100(120) |
16 |
1180±15 |
1004 |
3260 |
|
13 |
FXBW4-110/100(120) |
110 |
100(120) |
16 |
1240±15 |
1054 |
3300 |
|
14 |
FXBW-110/300 |
110 |
300 |
24 |
1480±15 |
1123 |
3266 |
