Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weda
-
Voltage:
-
220v/380v/415v/440v
-
Dimension(L*W*H):
-
4200x1800x2800mm
-
Weight (KG):
-
3000 kg
-
the sizes of the pallets:
-
850x550x20mm
-
Vibrating Force:
-
35.5 KN
-
Name:
-
Brick Making Machinery
-
Weight:
-
2.5t
-
host machine power:
-
13.07kw
-
dimension of host machine:
-
1350*1460*1800mm
-
Molding cycle:
-
24-30s
-
Machine Type:
-
Concrete Brick Block Making Machine brick Price
-
Color:
-
Customer's Demand
-
Application:
-
Construction Industry
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
Concrete,water cement,sand..etc
-
Production Capacity (Pieces/8 hours):
-
4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 5760 pcs/8hours, 12000 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
weda
-
Voltage:
-
220v/380v/415v/440v
-
Dimension(L*W*H):
-
4200x1800x2800mm
-
Weight (KG):
-
3000 kg
-
the sizes of the pallets:
-
850x550x20mm
-
Vibrating Force:
-
35.5 KN
-
Name:
-
Brick Making Machinery
-
Weight:
-
2.5t
-
host machine power:
-
13.07kw
-
dimension of host machine:
-
1350*1460*1800mm
-
Molding cycle:
-
24-30s
-
Machine Type:
-
Concrete Brick Block Making Machine brick Price
-
Color:
-
Customer's Demand
-
Application:
-
Construction Industry

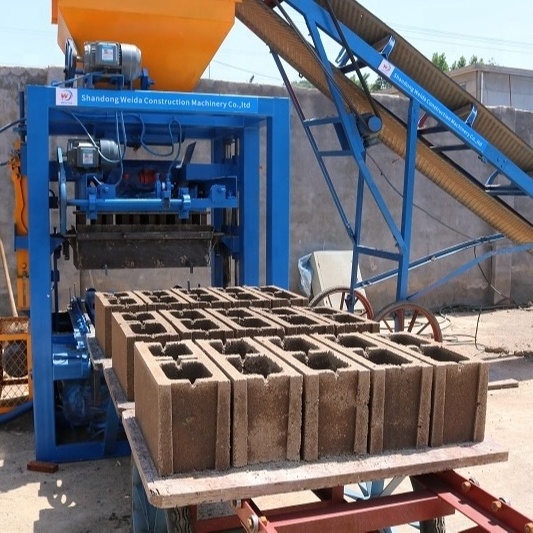

Hot Sale QT4 - 24 Semi Automatic Cement Paving Brick Making Machinery Concrete Block Machine
Capacity
QT4-24B is
a small semi-automatic
Concrete Hollow Block Maker Machine
which is specialized in manufacture of construction building block such as hollow blocks , solid blocks, paver blocks, porous bricks, road kerb , grassing brick , ring tree brick and other concrete products .Concrete blocks material can be fly ash , cinder , coal gabgue and other industrial residue .
Product Description
Hot Sale QT4 - 24 Semi Automatic Cement Paving Brick Making Machinery Concrete Block Machine
Small Investment Big Profit QT 4-24 Semi-automatic Hollow Block Brick Making Machine
advantage:
it is our hot selling
Hollow Block Brick Making Machine
, very easy to operate .
The cost is low , suitable for new block maker .
the brick making just need to change the mold then you can produce many kind of hollow block and lego bricks.
This
concrete block making machine brick
is widely used and work well in Southeast asia , Africa and South America, get many good feedback.
Main Parts
|
Name
|
Small Investment Big Profit QT 4-24 Semi-automatic Hollow Block Brick Making Machine
|
|
Dimension
|
2060x1730x2580mm
|
|
Power
|
22.05kw
|
|
Molding time
|
24s
|
|
Vibration force
|
35.5kn
|
|
Pallets size
|
850x550x20mm
|
|
Voltage
|
380/415/440 and others as design
|
|
Work area
|
60㎡
|
|
Name
|
JQ350 mixer
|
|
Output capacity
|
350L
|
|
Input capacity
|
560L
|
|
Capacity
|
4m³/h concrete
|
|
Weight
|
840KG
|
|
Dimension
|
1270X1250X1250MM
|
|
Power
|
7.5kw
|
|
Name
|
belt conveyor
|
|
Motor power
|
1.1kw
|
|
Length
|
6000mm
|
|
Weight
|
220kg
|
|
Dimension
|
6000*600*500mm
|
control cabinet
Contact use Chinese Famous brand CHNT to keep the machine working is good status and longer life.
Block Molds
Adopt precise line cutting and carburizing treatment technology to assure longer mould life and increas the mould precision, so the brick moulds have a better performance
Features:
1.This
concrete block making machine brick
vibration molding , the finshied hollow block compressive strength can reach 8-9 mpa . very easy to operate . and has high efficiency , reasonable design .
2.Good adaptability of raw materials, advanced step vibration molding technology . can use slag , fly ash and other industry residue, small business machine
3.
concrete block making machine brick
can make many kind of block by changing molds
.Cater to the market demand to the greatest extent, let the equipment maximize the efficiency ,
Details Images
Hot Machine
Packing and delivery
With Client
Our Service
Company Introduction
Shandong Weida Construction Machinery CO., Ltd is located in Linyi City, Shandong Province,China.With RMB 16 million investment and 53,000 square meters area,
We are always developing good and realiable
concrete block making machine brick
, AAC block machine...etc with other
Construction machinery with international standards to meet clients demands(people-oriented,leading technology, winning quality, and serving user ).
Construction machinery with international standards to meet clients demands(people-oriented,leading technology, winning quality, and serving user ).
We had exported to more than 100 countries.We have more than 60 technician to ensure superior installations and after sale service toassist clients to install the machine and perfrom the proper training abroad.
