Quick Details
-
Model Number:
-
IM52
-
Length/Image:
-
171mm/Erect
-
Objective aperture:
-
45mm
-
Magnification:
-
30x
-
Field of view:
-
1°30'
-
Display resolution:
-
1" / 5"
-
Reflectorless:
-
500m
-
Operating system:
-
Linux
-
Accuracy:
-
2"
-
Dust and water protection:
-
IP65
-
one prism:
-
1.3-4000m
Quick Details
-
Warranty:
-
one year
-
Place of Origin:
-
Japan
-
Brand Name:
-
sk
-
Model Number:
-
IM52
-
Length/Image:
-
171mm/Erect
-
Objective aperture:
-
45mm
-
Magnification:
-
30x
-
Field of view:
-
1°30'
-
Display resolution:
-
1" / 5"
-
Reflectorless:
-
500m
-
Operating system:
-
Linux
-
Accuracy:
-
2"
-
Dust and water protection:
-
IP65
-
one prism:
-
1.3-4000m

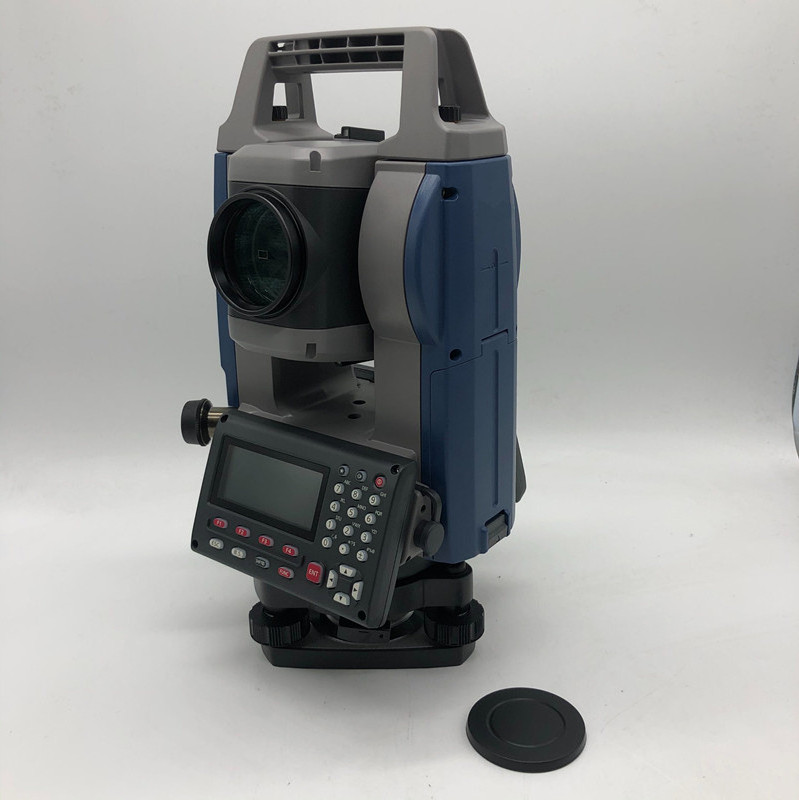

Dual Display Reflectorless Total Station Im52
The IM-50 series offers the perfect entry-level site layout and survey instrument. The sleek and light IM-50 is made with superior Japanese quality and design, built with exceptional function an form in mind. And like all of our products, you can customize it to meet your needs and create your own workflows.
KEY FEATURES
|
*Outstanding Performance Featuring a new EDM, the im-50 series is a fast, accurate and powerful. In reflectorless mode, it measures up to 500m at an incredible 2mm+2ppm accuracy, and has 1.5mm+2ppm accuracy when measuring up to 4000m to standard prisms. *Fast and Powerful EDM The IM-50 series gives you rapid and correct pinpointing with phase shift technology. The ultra-narrow EDM beam can precisely chain-link fences and tree branches. You get a rapid distance measurement of 0.9 seconds regardless of the object. *Easy Data transfer Powered with integrated Bluetooth capability and an internal antenna, the sleek design enables you to deliver measurements cable-free to your data controller. *Rugged and Waterproof With an IP66 certification, the IM-50 series is guaranteed to protect against dust and be waterproof up to one meter. Its rugged metal chassis and heavy duty handle stand up to even the toughest job sites. Truly an all-weather solution, the IM-50 can operate in temperatures ranging from -20 ºC~+60ºC *Ready for the Field The IM-50 series has up to 50000 points of internal mamory, and can store an additional 32GB through the USB. And with the easy-to-use SDR basic on-board software, you have everything you need to get the job done ou in the filed.
|
1. Warranty: 12 months warranty is offered for survey equipment. 6 months warranty offered for survey accessory. Warranty comes in effective from the day your receive good.
2. Repair in warranty: We are responsible for supplying new parts for repairing. Round way freight will be charged by us. If it is necessary, product will be required to send back to our service center to be repaired, round way freight is charged by us. Our engineer will repair in your office for special case.
3. Repair out of warranty: We will offer related parts at commercial cost. Freight will be shared by us
4. Training and calibration: Our engineer is qualified for training and calibration for GNSS and Total Station on site. We offer this service to bulk order while customer has requirement.
5. Technical support is offered 24/365.
