Quick Details
-
Marketing Type:
-
New Product
-
Core Components:
-
Laser Source
-
Place of Origin:
-
HUB
-
Brand Name:
-
Baikeopto
-
Dimension(L*W*H):
-
500mmx680mmx200mm
-
Weight (KG):
-
17 KG
-
Product name:
-

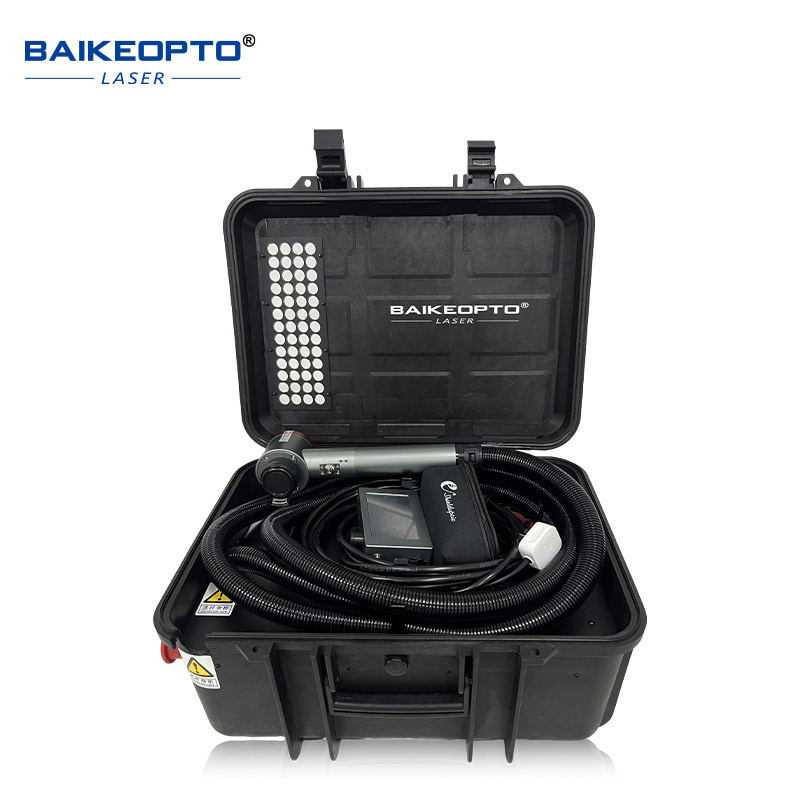

Rust Removal Metal Laser Cleaning Machine
-
Laser Working Mode:
-
Pulse
-
Pulse width:
-
13-500ns
-
Maximum monopulse energy:
-
2mJ
-
Power regulation range:
-
0-100% (Gradient Adjustable)
-
Repeat frequency:
-
1-3000kHz (Gradient Adjustable)
-
Fiber length:
-
3m
-
Cooling mode:
-
Air cooling
-
Field mirror focal length:
-
210mm
-
Depth of focus:
-
About 5 mm
Quick Details
-
Power:
-
200W
-
Laser Type:
-
Fiber Laser
-
Laser Source Brand:
-
JPT
-
Marketing Type:
-
New Product
-
Core Components:
-
Laser Source
-
Place of Origin:
-
HUB
-
Brand Name:
-
Baikeopto
-
Dimension(L*W*H):
-
500mmx680mmx200mm
-
Weight (KG):
-
17 KG
-
Product name:
-
Rust Removal Metal Laser Cleaning Machine
-
Laser Working Mode:
-
Pulse
-
Pulse width:
-
13-500ns
-
Maximum monopulse energy:
-
2mJ
-
Power regulation range:
-
0-100% (Gradient Adjustable)
-
Repeat frequency:
-
1-3000kHz (Gradient Adjustable)
-
Fiber length:
-
3m
-
Cooling mode:
-
Air cooling
-
Field mirror focal length:
-
210mm
-
Depth of focus:
-
About 5 mm
Product Description
Product Paramenters
|
Working Environment
|
|
|
|
Model
|
BK-FLC200MX
|
|
|
Voltage
|
Single phase 220V±10%, 50/60Hz AC
|
|
|
Power consumption
|
≤1500W
|
|
|
Working environment temperature
|
5℃～40℃
|
|
|
Working environment humidity
|
≤80%
|
|
|
Optical Parameters
|
|
|
|
Average laser power
|
≥200W
|
|
|
Power instability
|
<5%
|
|
|
Laser Working Mode
|
Pulse
|
|
|
Pulse width
|
13-500ns
|
|
|
Maximum monopulse energy
|
2mJ
|
|
|
Power regulation range
|
0-100% (Gradient Adjustable)
|
|
|
Repeat frequency
|
1-3000kHz (Gradient Adjustable)
|
|
|
Fiber length
|
3m
|
|
|
Cooling mode
|
Air cooling
|
|
|
Cleaning Head Parameters
|
|
|
|
Scan range
|
0mm-100mm, continuously adjustable;
supporting 8 scanning modes |
|
|
Scanning frequency
|
The maximum is not less than 300Hz
|
|
|
Field mirror focal length
|
210mm (Optional 160mm/254mm/330mm/420mm)
|
|
|
Depth of focus
|
About 5 mm
|
|
|
Mechanical Parameters
|
|
|
|
Machine size
|
About 617mm*469mm*291mm
|
|
|
Packing size
|
About 950mm*580mm*500mm
|
|
|
Machine weight
|
About 29Kg
|
|
|
Cleaning head weight
|
＜0.75Kg
|
|
|
Operation mode
|
Handheld
|
|
